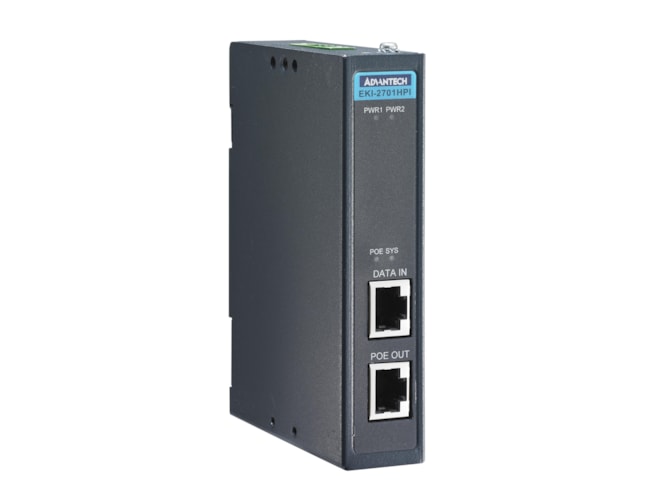

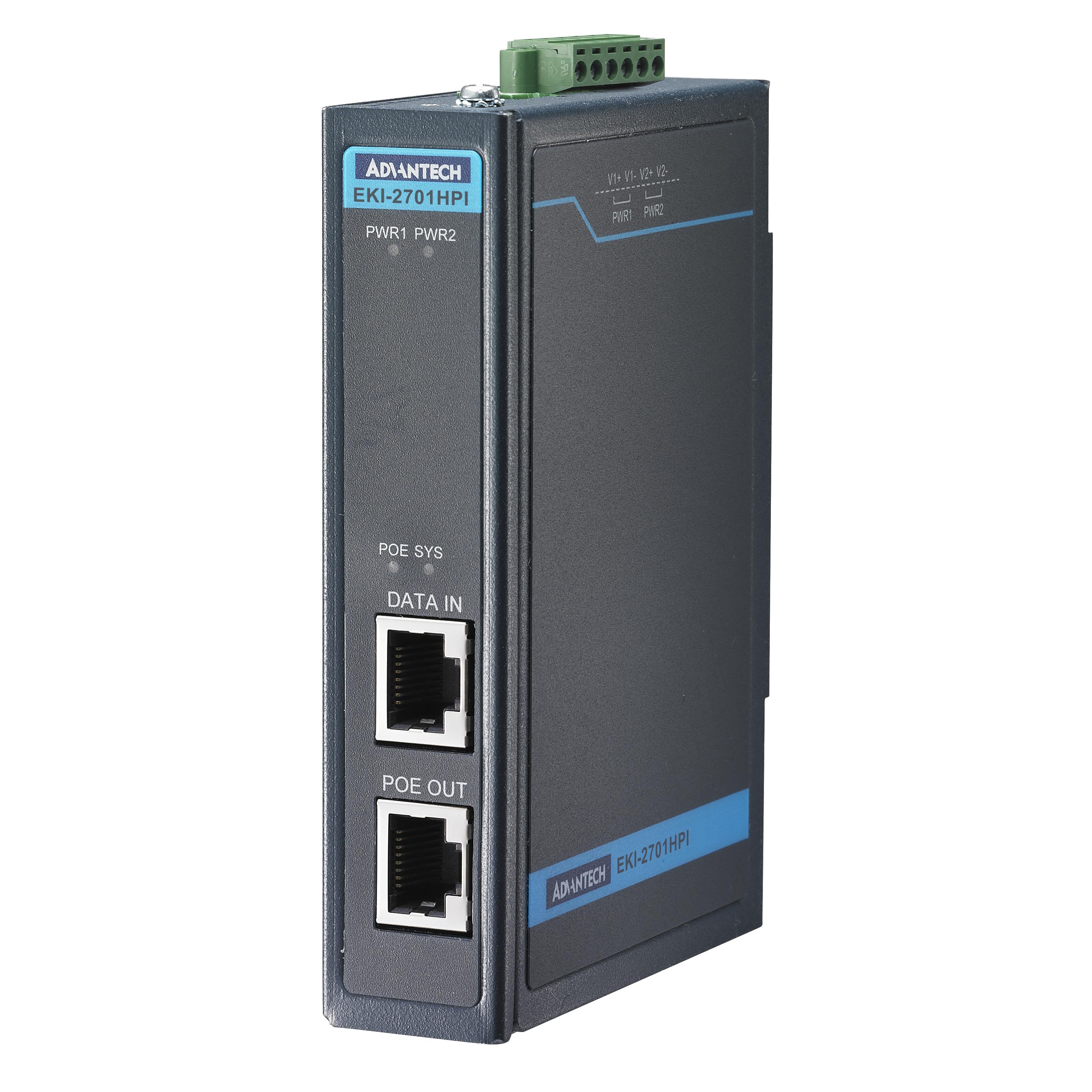

Advantech EKI-2701HPI-AE

Hardened PoE injector, 1000Mbps, 30W.

$165.00
Part Number
  • EKI-2701HPI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.3 , 802.3ab , 802.3af , 802.3at , 802.3u , 802.3x
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • RJ-45 Transmission Distance: 100 m
  • Power Consumption: Max. 35W (Full load PoE)
  • Power Input (DC): 24 ~ 48 VDC, redundant dual power inputs
  • Dimensions (W x H x D): 27 x 120 x 85 mm (1.06 x 4.72 x 3.34 in.)
  • Enclosure (Metal): Metal shell with solid mounting kits
  • Mounting (Wall): Yes
  • Mounting (DIN-rail): Yes
  • Reverse Polarity: Present
  • Overload Current: Present
  • Operating Humidity: 5~95% (non-condensing)
  • Storage Humidity: 0~95% (non-condensing)
  • IP Rating: IP30
  • Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
  • IEEE 802.3af/at compliant, supports a full 30 watt output
  • Power input (24 ~ 48 VDC), inject 30 W for each port
  • Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
  • Supports operating temperatures from -40 to 75°C
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC.
