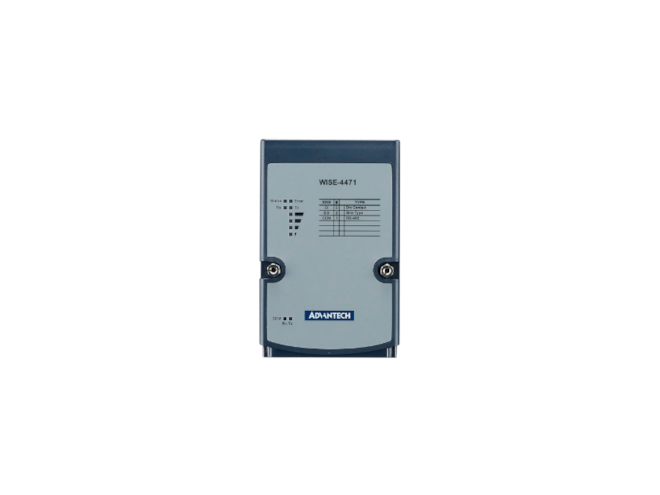

Advantech WISE-4471-UA

NB-IoT/LTE-M IoT Wireless Modular I/O.

$378.00
Part Number
  • WISE-4471-UA
Highlights...

Features

  • Ingress Protection: IP65
  • SIM card slot: Micro SIM
  • Connectors: 1 x Plug-in screw terminal,
  • 1 x M12 4-pin code-A male
  • Certification: CE, NCC, FCC Class A, IC
  • LED Indicators: Status, Error, Tx, Rx, Signal Level
  • Power Consumption: 1.7 W @ 24 VDC
  • Power Input: 10~50 VDC
  • USB Ports: 1 x Micro-B USB
  • Dimension (W x H x D): 70 x 112 x 38 mm
  • Mounting: DIN 35 rail, Wall, Pole, Stack
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC
  • Frequency Band: LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28
  • Standard (Technology): NBIoT, CatM
  • Global coverage of NB-IoT and LTE-M frequency bands
  • 3GPP release 13 Cat. NB1/Cat. M1
  • Application-ready I/O combination with optional M12 Connectors I/O
  • Support MQTT, CoAP & LwM2M protocol
  • Supports direct cloud service for IoT integration
Cat. NB1 and Cat. M1 feature low power consumption and utilize LTE networks based on licensed spectrum bands that are optimized for connectivity to machines, assets, and sensors to unlock a range of IoT applications.
