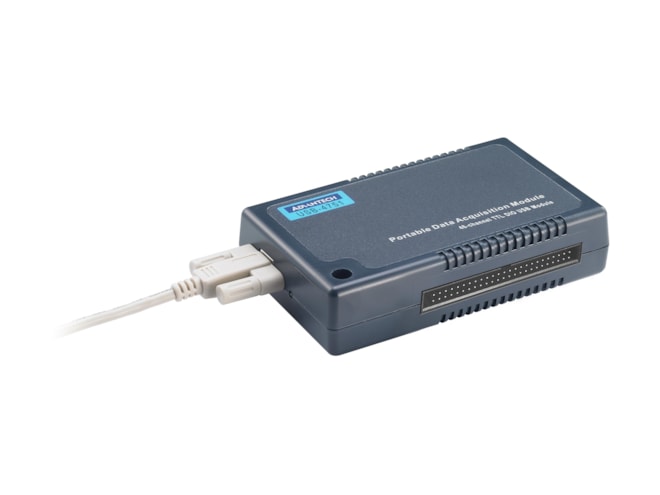

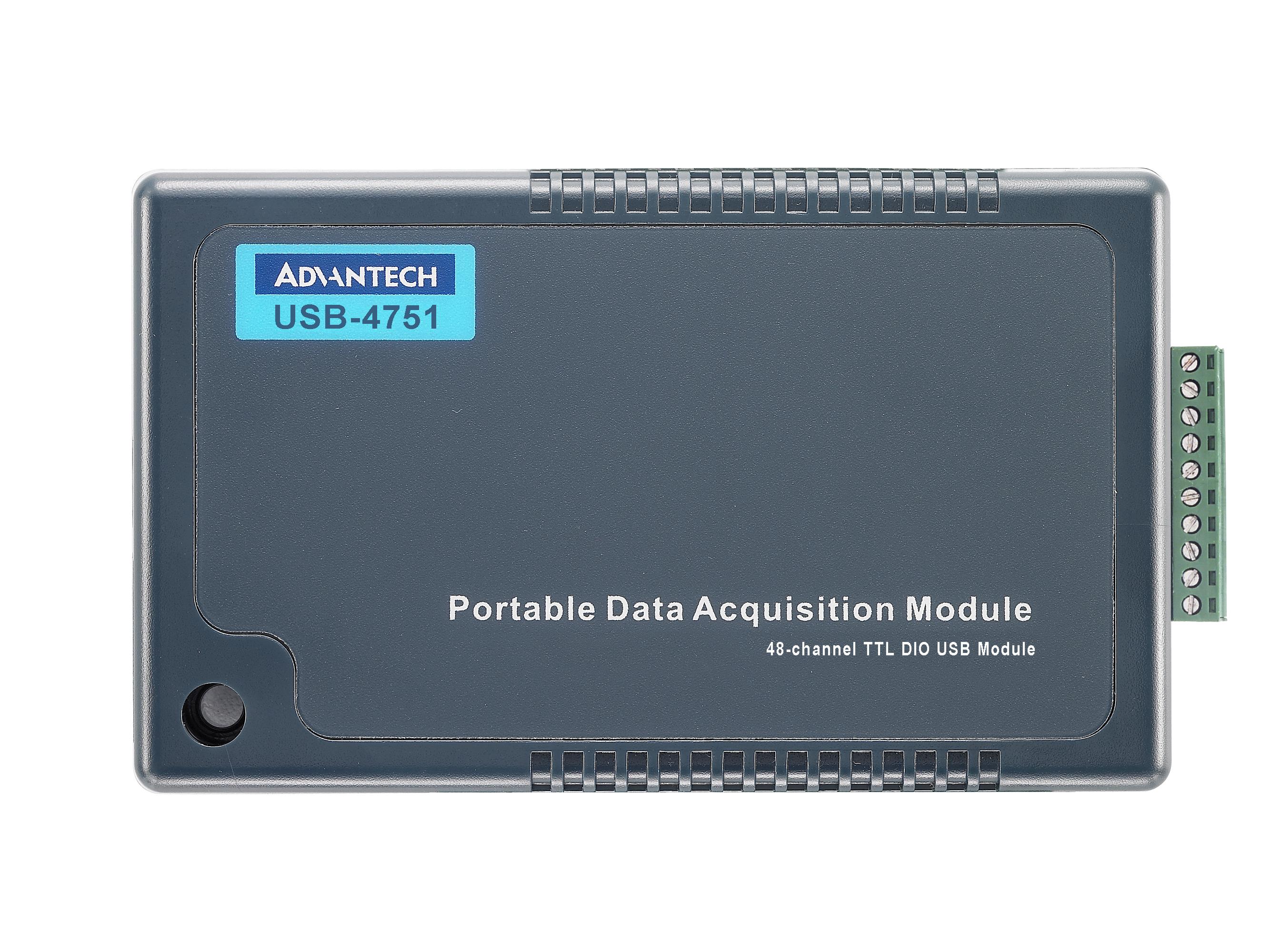

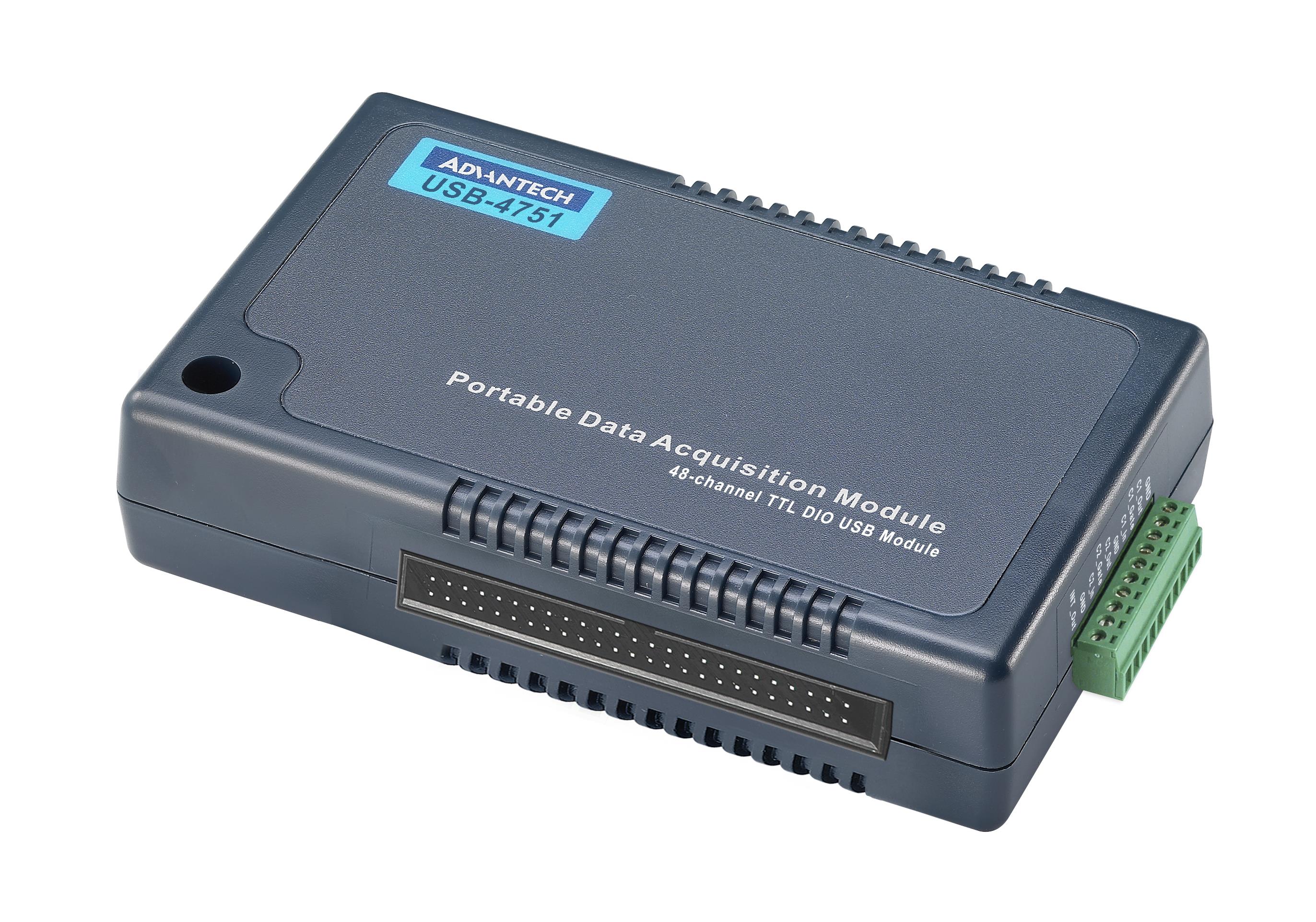

Advantech USB-4751-BE

48-CH TTL DIO USB Module.

$131.00
Part Number
  • USB-4751-BE
Highlights...

Features

  • Channels: 48 (TTL)
  • Channels: 48 (TTL)
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Compatible with USB 1.1/2.0
  • Bus-powered
  • 48 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Buffered circuits for higher driving capacity than 8255
  • Interrupt handling capability
  • Timer/Counter interrupt capability
  • Supports both dry and wet contact
  • 50-pin Opto-22 compatible box header
  • Portable
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4751/4751L is a 48/24-bit digital I/O module for the USB bus. Its 48/24 bits are divided into six/three 8-bit I/O ports and users can configure each port as input or output via software. USB-4751/USB-4751L also provides one event counter and three 16-bit timers, which can be cascaded to become a 32-bit timer.
