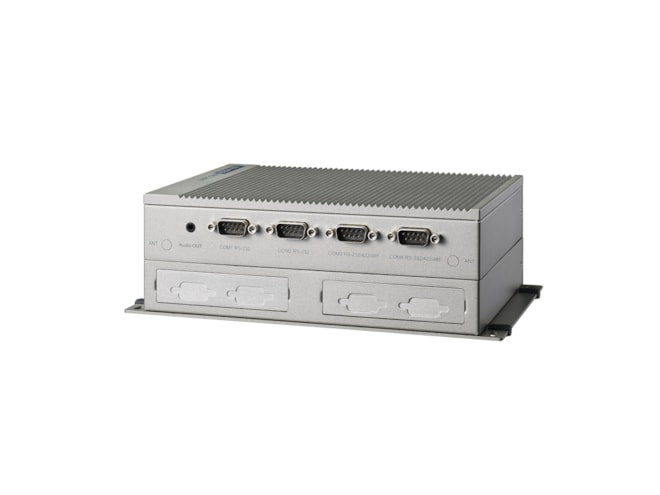

Advantech UNO-2484G-6331BE

Modular Compact Embedded Box PC with 6th Gen Intel® Core™ i3-6100U CPU.

$1,340.00
Part Number
  • UNO-2484G-6331BE
Highlights...

Features

  • Ingress Protection: IP40
  • Relative Humidity: 10~95% RH (non-condensing)
  • Shock Protection: 50 G, half sine
  • Vibration Protection: 3 Grms, random
  • Certification: CE, FCC, UL, CCC, BSMI
  • CPU: 6th Gen. Intel® Coreâ„¢ i3-6100U 2.30GHz Dual-Core
  • Memory: 1 x SO-DIMM with 8 GB DDR4 2133 MHz
  • OS Support: Microsoft® Windows 10 LTSC, Linux
  • Power Input: 10~36 VDC
  • Storage: 2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe)
  • Audio: Line-Out
  • Displays: 1 x HDMI, 1 x DP
  • LAN Ports: 4 x 10/100/1000 Mbps
  • Power Connector: 1 x 2-Pin Terminal Block
  • Serial Ports: 4 x RS-232/422/485
  • USB Ports: 4 x USB 3.0
  • Dimension (W x H x D): 200 x 140 x 50 mm
  • Enclosure: Aluminum housing
  • Weight (Net): 1.4 kg ( 3.09 lb)
  • Intel® Coreâ„¢ i7/i5/i3/Celeron Processor with 8GB DDR4 built-in Memory
  • 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
  • Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
  • Compact Fanless Design
  • Ruggedized by zero cable and lockable I/O design
  • Supports 30+ iDOOR combination with four main categories
  • Diverse system I/O and Isolated Digital I/O by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance
Advantech new generation UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with embedded operation system. New UNO-2000 series implement Universal, Customized, and Domain idea into modular design concept which provides flexible and time-to-market support in variety of applications. The series also includes iDOOR technology which supports automation feature-extensions such as Multiple I/O Peripheral, Industrial Fieldbus, Smart I/O Communication, and Signal Communication. New UNO-2000 series including pocket, small, and regular-size form-factors with indicated market segments in terms of different kinds of smart factory application categories such as Equipment Connectivity (EC), Process Visualization (PV), Environment Management (EM), and Dispatch Management (DM) solution. New UNO enables smart factory and fulfill all application.
