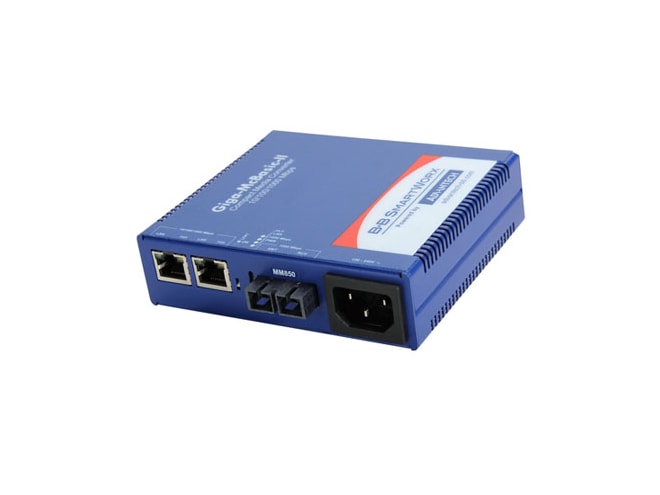

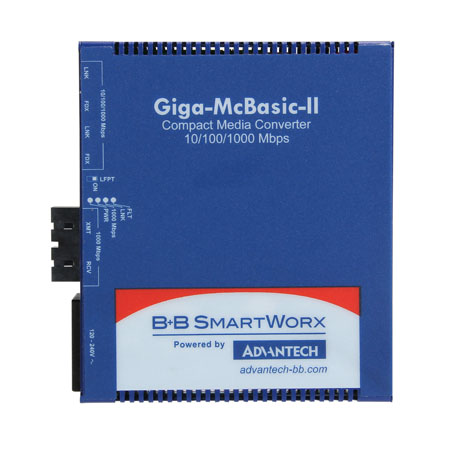

Advantech IMC-470-MM-US

Standalone Media Converter, 1000Mbps, Multimode 850nm, 550m, SC, AC adapter (also known as Giga-McBasic 856-30601).

$406.35
Part Number
  • IMC-470-MM-US
Highlights...

Features

  • Fiber Transmission Speed: 10/100/1000 Mbps
  • Fiber Port Optical Mode: Multi-Mode
  • Fiber Transmission Wavelength: 850 nm
  • Fiber Transmission Distance: 550 m
  • Fiber Port Connector Type: SC Type
  • Power Input (AC): 100 ~ 240 VAC
  • Dimensions (W x H x D): 10.16 x 2.03 x 10.16 cm (4.0 x 0.8 x 4.0 in.)
  • Weight: 0.3 kg (0.7lb)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL, CSA
  • EMC: CE, FCC Class A
  • Designed with internal AC power
  • Supports diagnostic features including Link Loss and Fiber Alert
  • Some models provide two 10/100/1000Mbps copper ports
  • Some models support Link Fault Pass Through (LFPT)
  • Supports a variety of SFP modules
  • Supports multiple mounting options (desktop, DIN rail or wall-mount)
The IMC-450 and 470 series are standalone media converters with an optional internal power security device that make the connection between copper and fiber cables. It can be installed anywhere a network connection is required. In addition, these media converters feature in automatic link restoration. They also increase the scalability of a network by providing rate conversion ,distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connection. The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interfaces.
