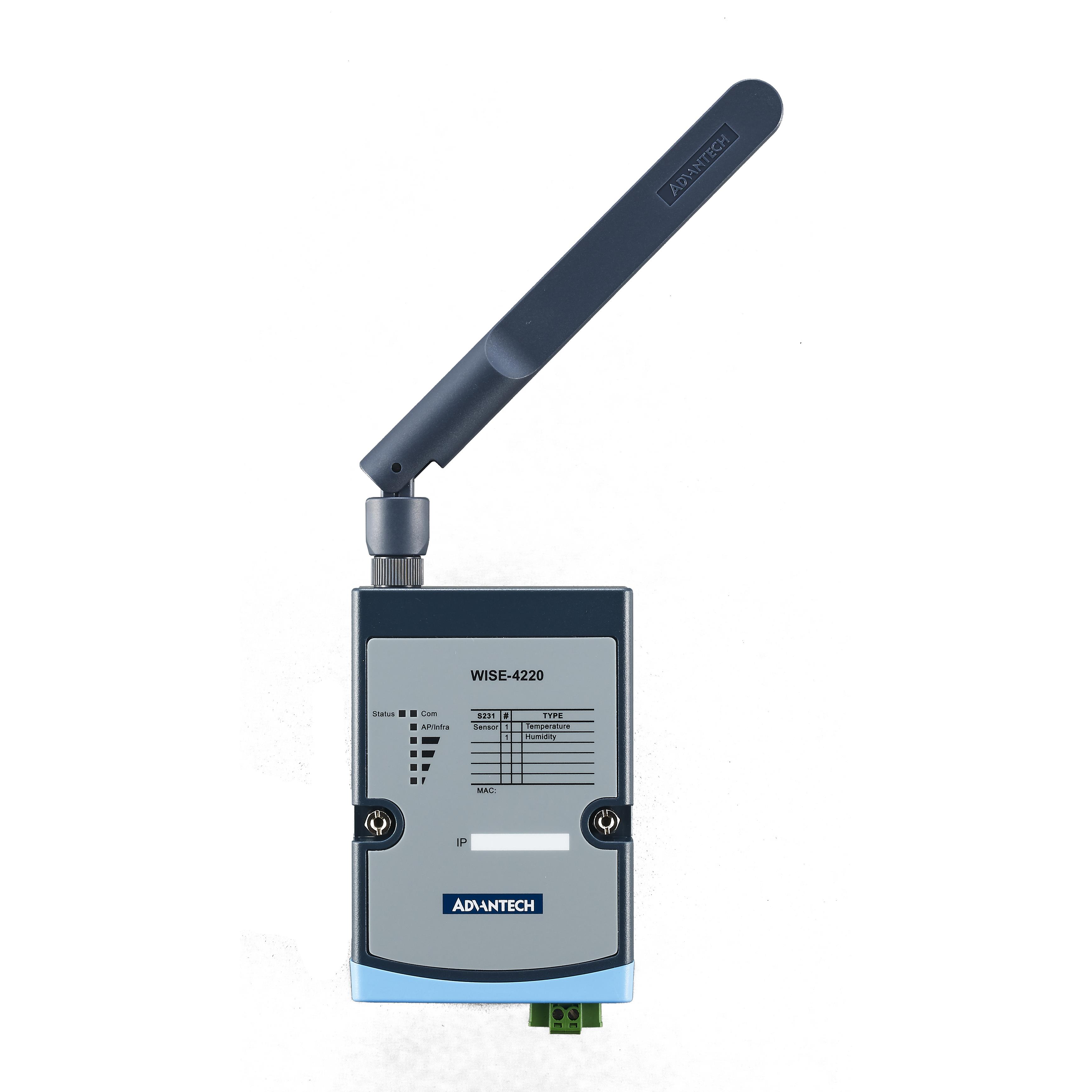

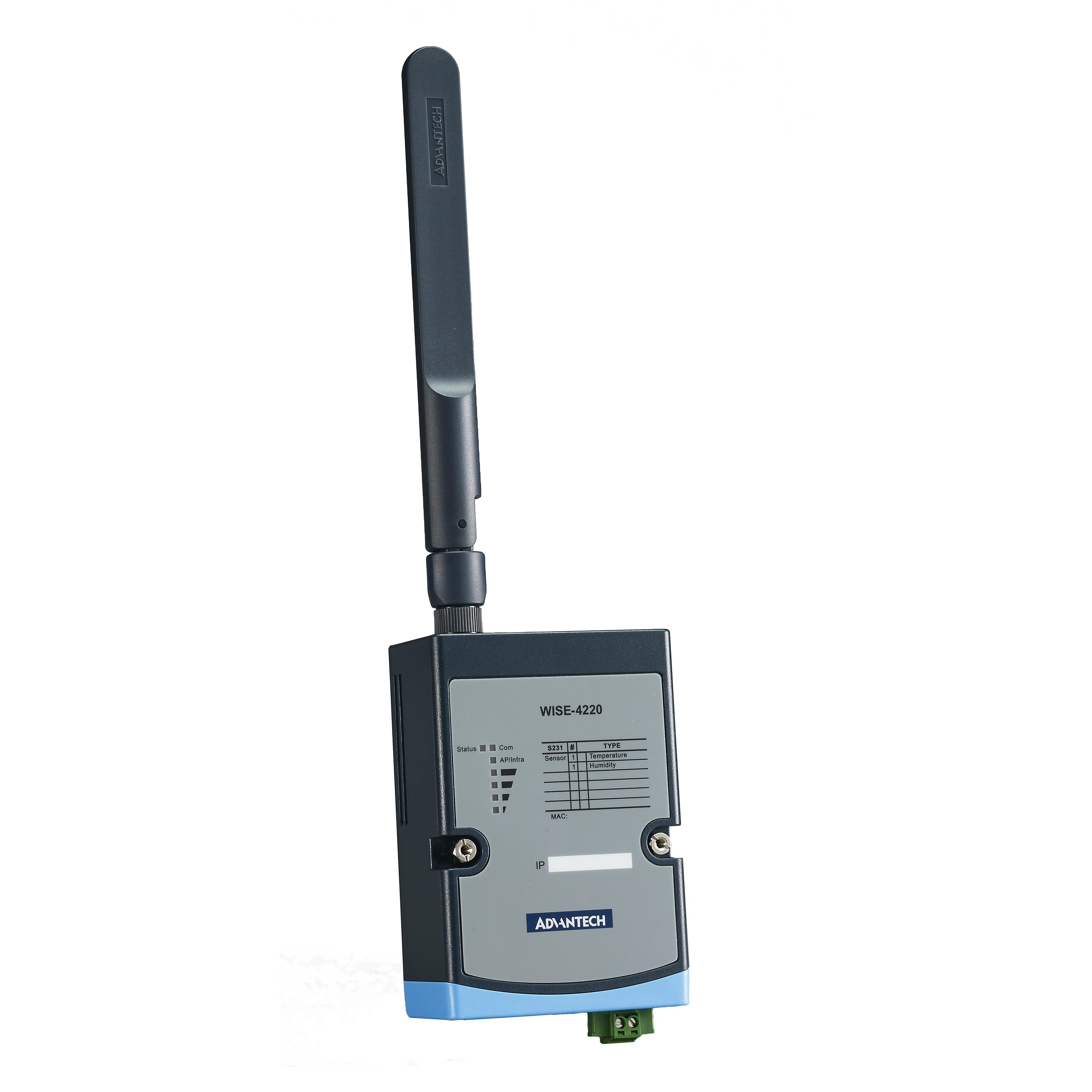

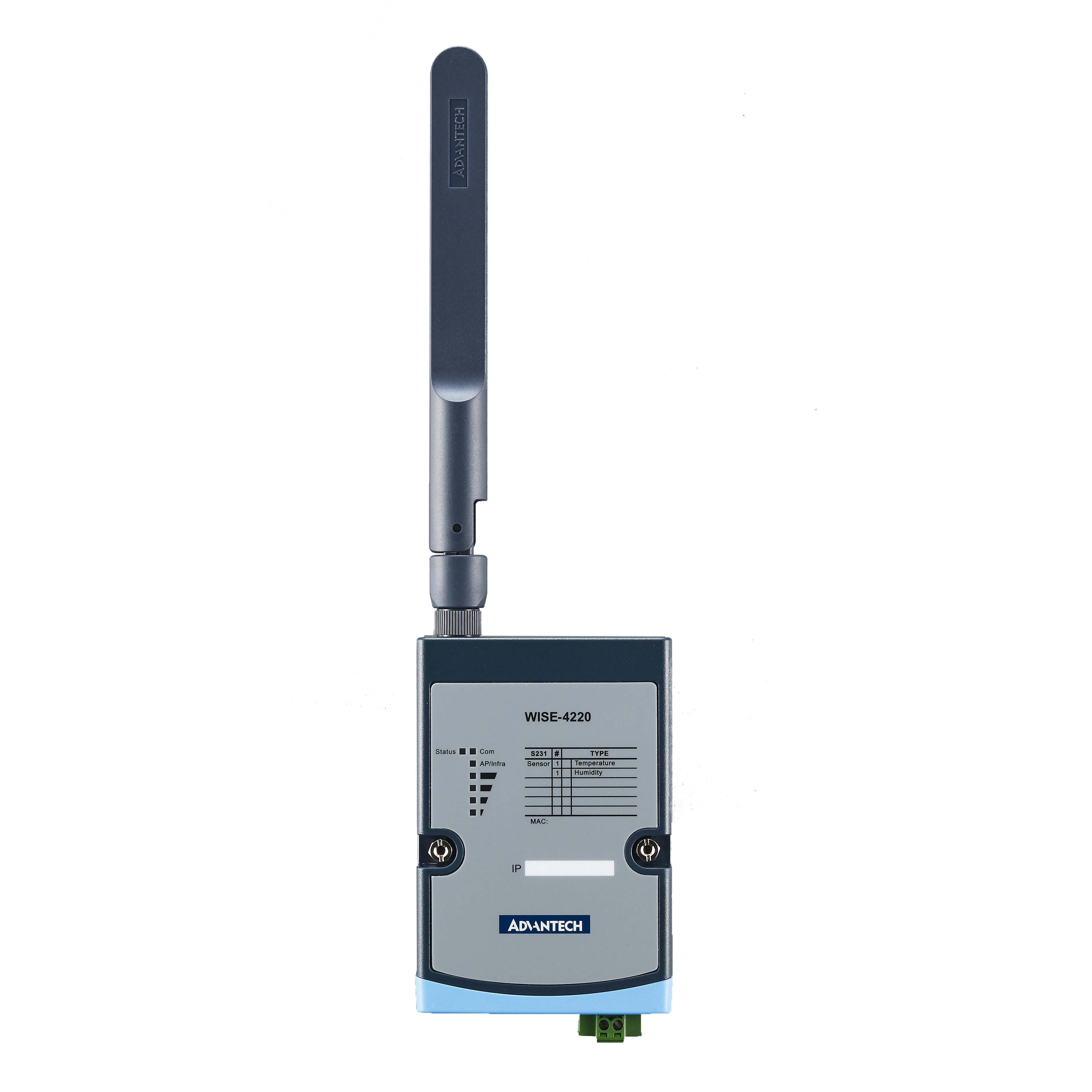

Advantech WISE-4220-S231A

2.4G WiFi IoT Wireless Module with Temperature & Humidity Sensor.

$194.00
Part Number
  • WISE-4220-S231A
Highlights...

Features

  • Relative Humidity: 20~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
  • Certification: CE, FCC Class A, IC, NCC, SRRC, RCM, VCCI, TELEC
  • LED Indicators: Status, Line-power, Wireless Com, Initial/Normal, Signal Strength
  • Power Consumption: 1.2 W @ 24 VDC
  • Power Input: 10~50 VDC
  • Dimension (W x H x D): 70 x 102 x 38 mm
  • Enclosure: PC
  • Mounting: DIN-rail, Wall, Pole, Stack
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC
  • Resolution: 16-bit
  • Frequency Band: IEEE 802.11 b/g/n 2.4 (GHz)
  • Standard (Technology): WIFI
  • WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
  • Application-ready sensor solution
  • Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Supports RESTful web API in JSON format for IoT integration
  • Supports file-based cloud storage and local logging with RTC time stamp
Advantech’s new WISE-4220 series modules leverage Wi-Fi, to provide high-performance modularized wireless sensor nodes that can be easily integrated into existing networks. Aimed at industrial applications, WISE-4220 modules feature an internal sensor for collecting and logging environment data that can be wirelessly transmitted to a server or cloud applications using the MQTT protocol or RESTful web services. With high connectivity for diverse I/O, WISE-4220 modules can also be combined with other sensing solutions to enable simple and cost-effective real-time data monitoring.
