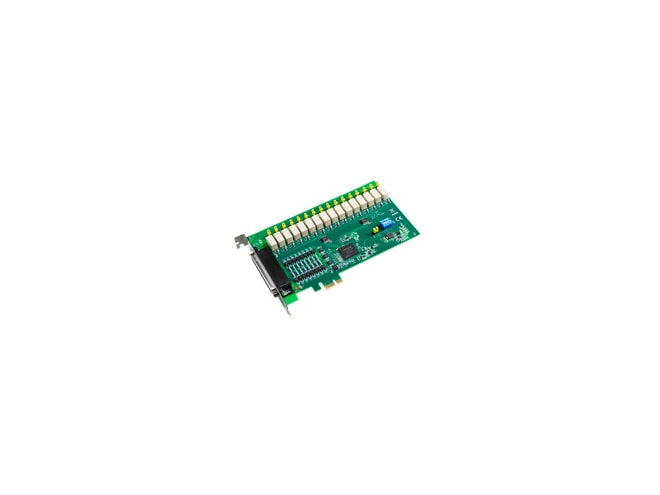

Advantech PCIE-1762H-AE

16-ch Relay and 16-ch Isolated Digital Input PCIe Card.

$233.00
Part Number
  • PCIE-1762H-AE
Highlights...

Features

  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 16 Form A
  • Contact Rating (Resistive): 0.5 A @ 30 VDC, 0.25 A @ 250 VAC
  • 16-ch digital input and 16-ch relay
  • Interrupt handling capability for all DI channels
  • Selectable Digital filter time for all DI channels
  • Output status readable
  • LED indicator to show activated relays
  • Selectable Form A or Form B
The PCIE-1762H provides 16 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 16 relay actuators that can be used as a on/off control devices or small power switches. All of the input signals can be used as interrupt request signals and also disable or enable the interrupt in each channel and support the edge of the input signals, at which to generate an interrupt. all of PCIE-1762H DI channel has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
