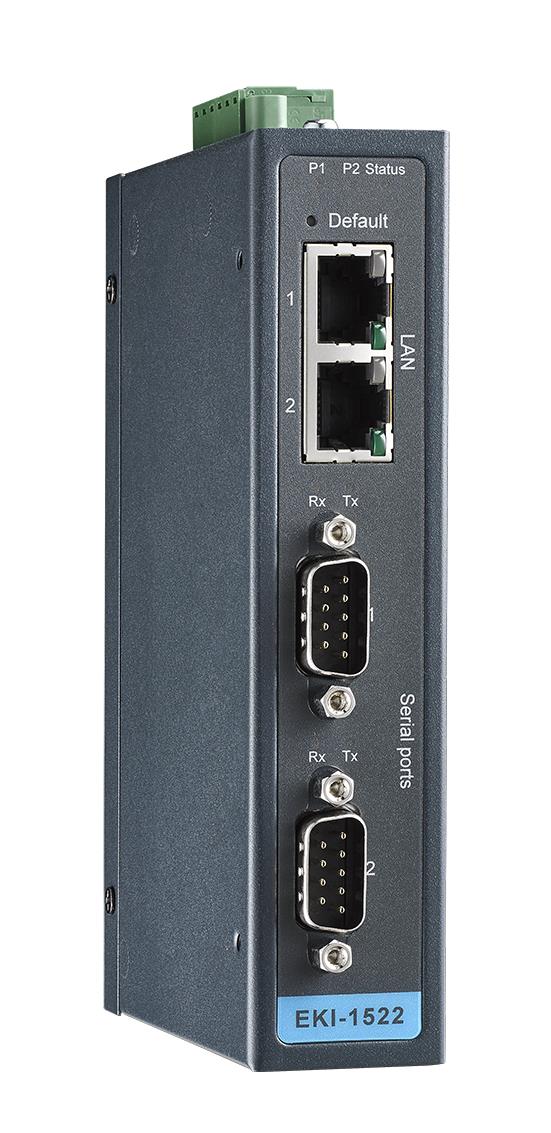

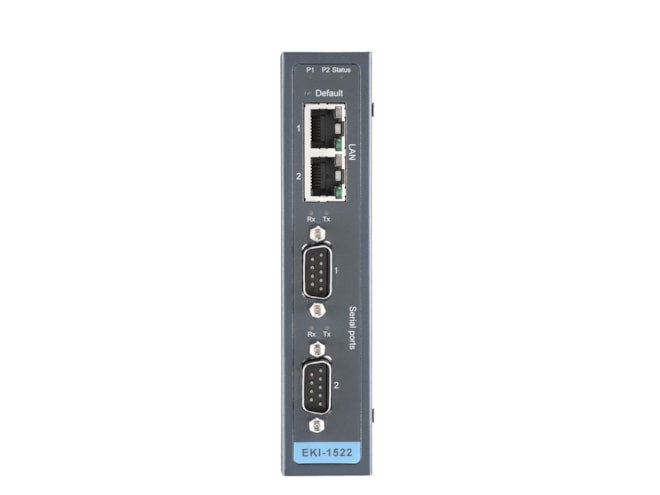

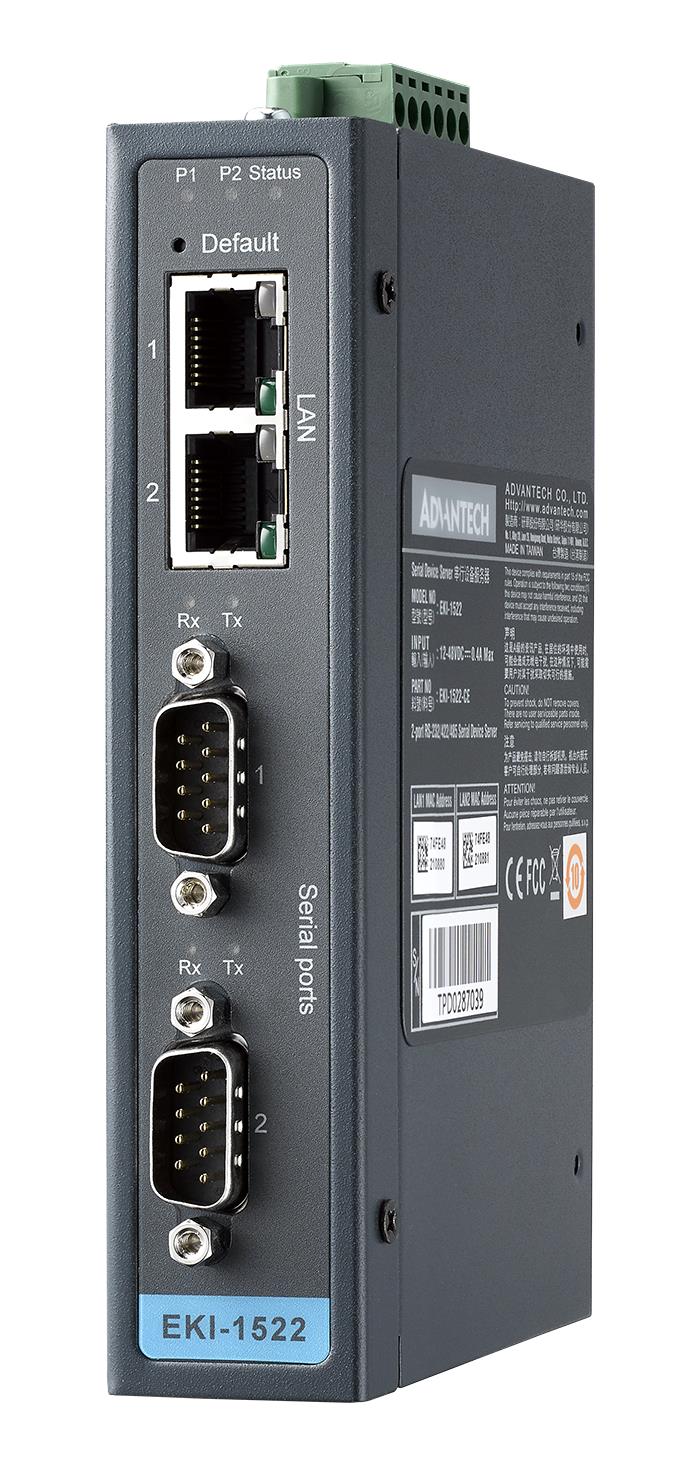

Name: Advantech EKI-1522-CE
Price: 267.0 USD
Availability: BackOrder

Advantech EKI-1522-CE — Advantech-EKI-1522-CE

Advantech-EKI-1522-CE
Advantech-EKI-1522-CE
Advantech-EKI-1522-CE

$267.00

Part Number

EKI-1522-CE

Highlights...

EKI-1522-CE
By Advantech
FREE Shipping on orders of $1,000 or more
Call for availability

Features

EMC: CE, FCC
EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall: IEC 60068-2-32
Safety: UL 60950-1, UL 62368
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
RJ-45 Port Connector Type: RJ-45
Serial Port Connector Type: DB9 male
Ethernet Standard: IEEE 802.3 , 802.3u
RJ-45 Transmission Speed: 10/100 Mbps
Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Enclosure (Metal): Metal with solid mounting hardware
IP Rating: IP30
Mounting (DIN-rail): Yes
Mounting (Wall): Yes
Weight: 432 g
Power Consumption: 3.2W
Power Input (DC): 12 ~ 48 VDC
Redundant Dual Inputs: Yes
RS-232: Yes
RS-422: Yes
RS-485: Yes
Baud Rate: 50 ~ 921.6 Kbps
Serial Transmission Speed: 50 ~ 921.6 Kbps
Configuration: Windows utility, Telnet console, Web Browser
Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode: COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
Warranty Period: 5 years
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Supports up to 921.6 kbps, and any baud rate setting
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
Automatic RS-485 data flow control
Supports line to line 2 KV, line to ground 4 KV surge protection

EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.
