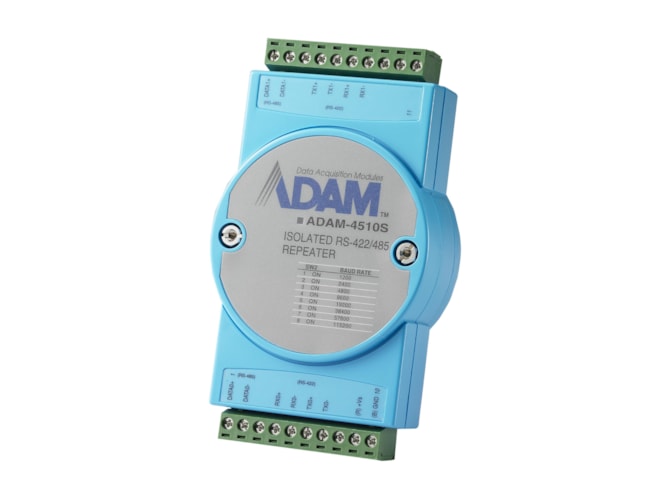

Advantech ADAM-4510-F

RS-422/485 Repeater.

$140.70
Part Number
  • ADAM-4510-F
Highlights...

Features

  • Connectors: 2 x 10-pin plug-in screw terminal
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 1200 bps~115.2 kbps
  • Converter/Repeater: RS-422/485 Repeater
  • Automatic RS-485 data flow control
  • Surge protection RS-485 data line
  • Transmission speed up to 115.2 Kbps
  • Networking up to 1200 meters (4000 feet)
  • LED indicator to monitor status
The ADAM-4510 repeaters simply amplify, or boost, existing RS-485 signals to enable them to cover longer distances. They extend the communication distance by 4000 ft (1200 m) or extend the number of connected nodes by 32.
