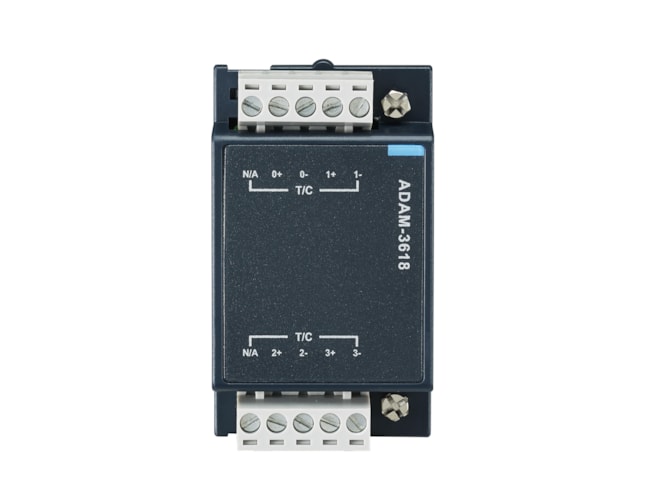

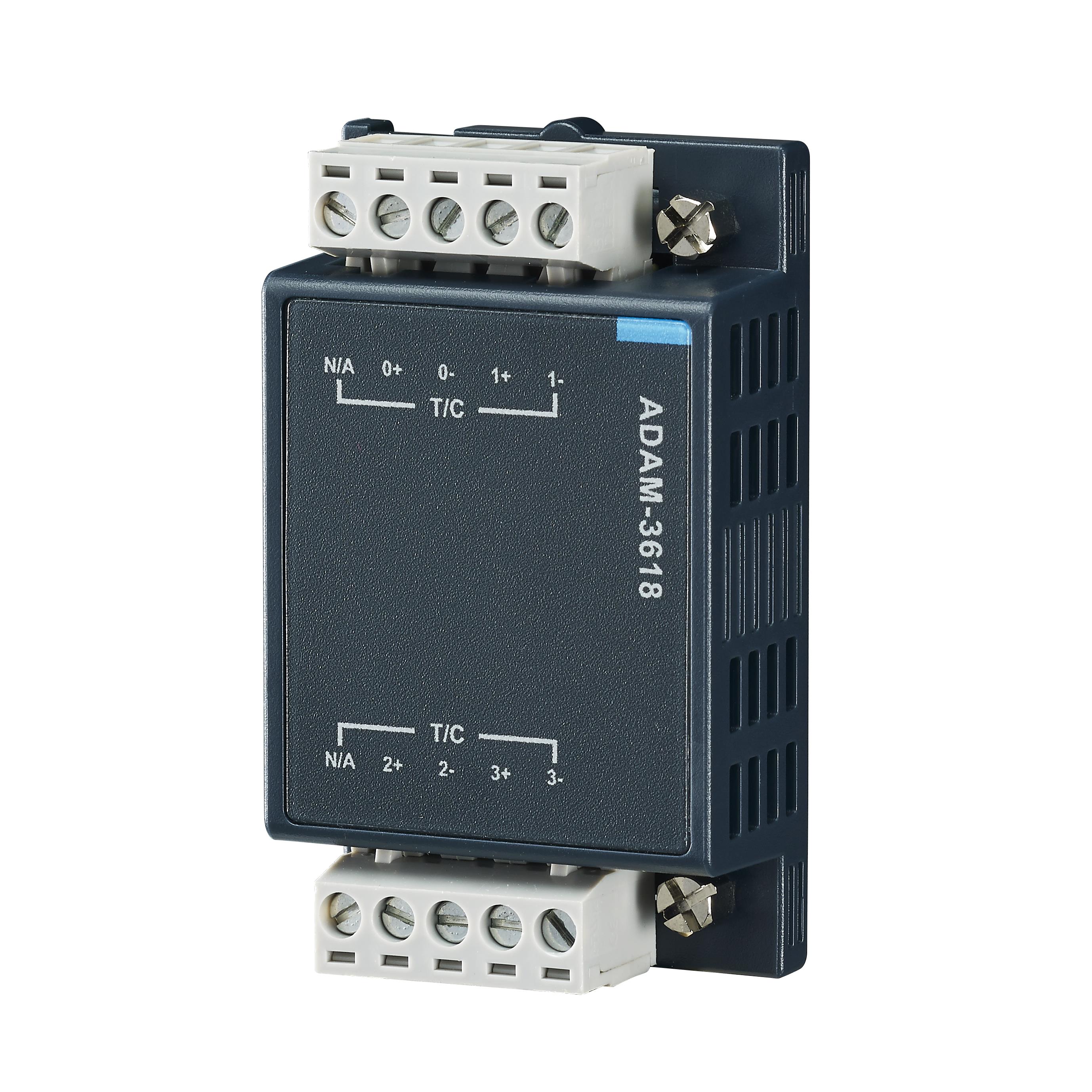

Advantech ADAM-3618-AE

Features

• Burn-out Detection: Yes
• Input Range: Type J ( 0~760°C)
• Type K ( 0~1370°C)
• Type T (-100~400°C)
• Type E (0~1000°C)
• Type R (500~1750°C)
• Type S (500~1750°C)
• Type B (500~1800°C)
• Isolation Protection: 2,000 VDC
• lnput Type: J, K, T, E, R, S, B Type Thermocouple
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 10 S/s (sum)
• Resolution: 16-bit
• Temperature Range: Type J ( 0 ~ 760°C) Type K ( 0 ~ 1370°C) Type T (-100 ~ 400°C) Type E (0 ~ 1000°C) Type R (500 ~ 1750°C) Type S (500 ~ 1750°C) Type B (500 ~ 1800°C)
• Isolation Voltage: 2000 VDC
• Input TypeL: J, K, T, E, R, S, B Type Thermocouple
• Burn-out detection: Yes
• Channels: 4
