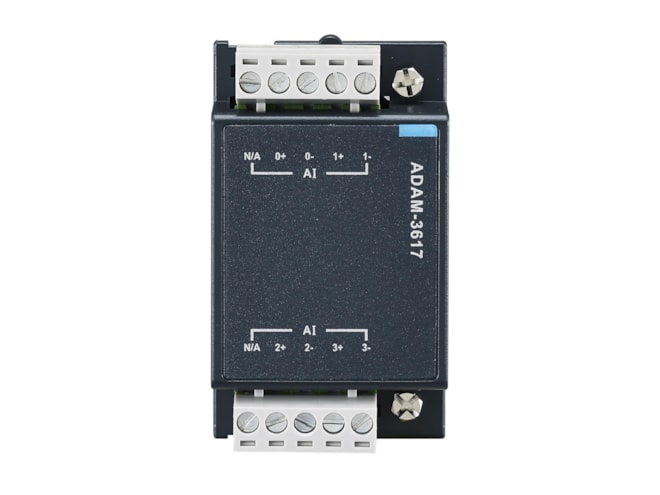

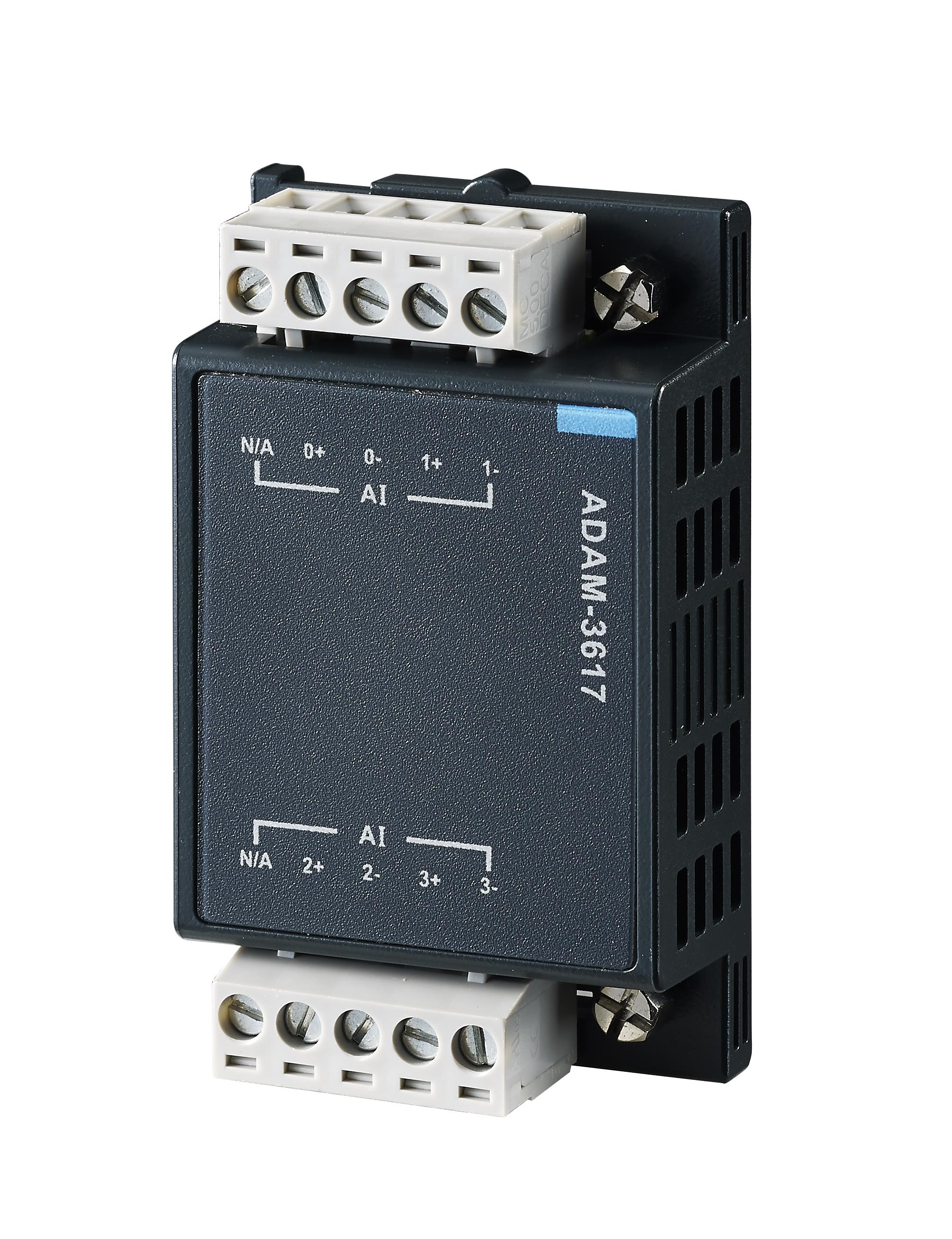

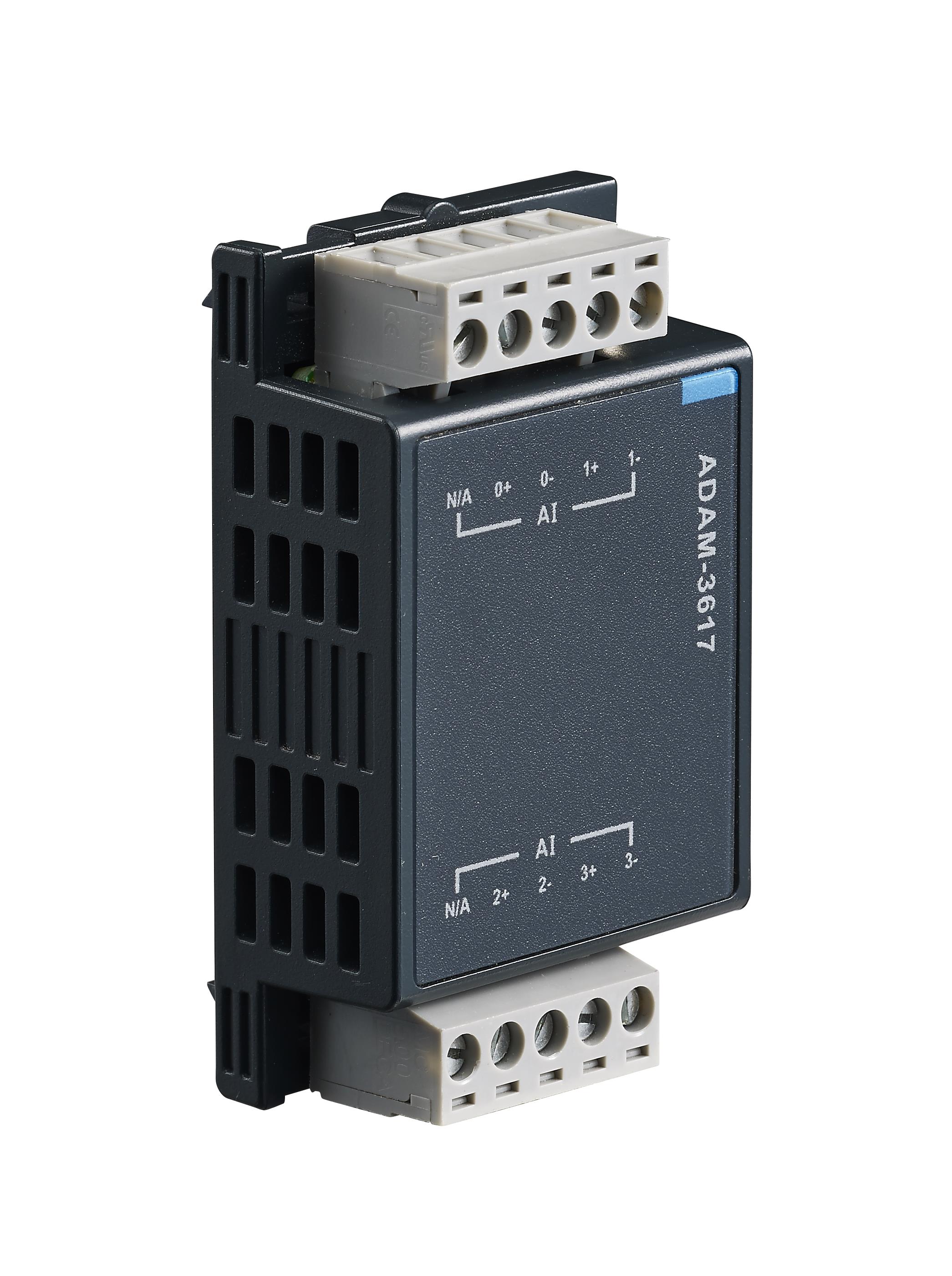

Advantech ADAM-3617-AE

Features

• Burn-out Detection: Yes (Current-only)*
• Channels: 4 differential
• Input Range: ±10 V, ±2.5 V, 0~20 mA, 4~20 mA
• Isolation Protection: 2,000 VDC
• lnput Type: Voltage, Current
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 10 S/s (sum)
• Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
• Resolution: 16-bit
• Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
• Isolation Voltage: 2000 V DC
• Sampling rate: 10 sample/second (total)
• Burn-out detection: Yes (Current-only)
• Input Impedance: 0.1 MΩ
• Input Type: Voltage, Current
• Channels: 4, differential
