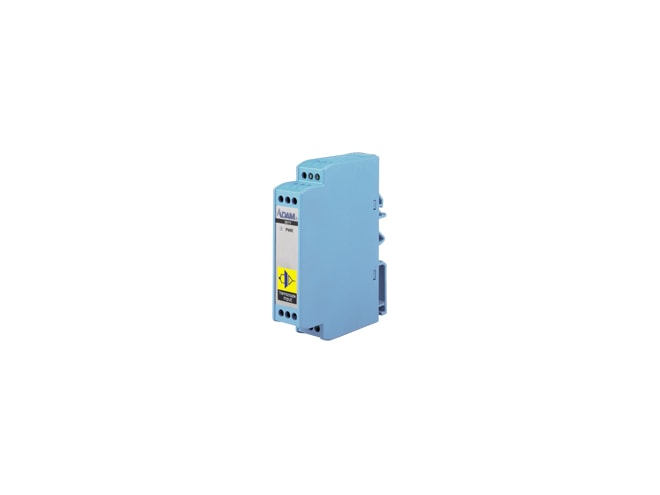

Advantech ADAM-3011-AE

Isolated Thermocouple Input Module.

$184.00
Part Number
  • ADAM-3011-AE
Highlights...

Features

  • Output Ranges: 0~10 V
  • Temperature Range: Type J (-40~760° C), Type K (0~1000° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C)
  • 1000 VDC, fully isolated
  • Configurable thermocouple type
  • Flexible DIN-rail mounting
  • Linearized thermocouple measurement
  • Operates from a single +24VDC
  • Temperature range of 0 to 50°C
The ADAM-3011 is field-configurable, isolation-base, thermocouple input signal conditioner. ADAM-3011 uses microprocessor-controlled high-resolution 16-bit dual-slope, integrating A/D converter to acquire thermocouple signal and cold junction compensation input.
