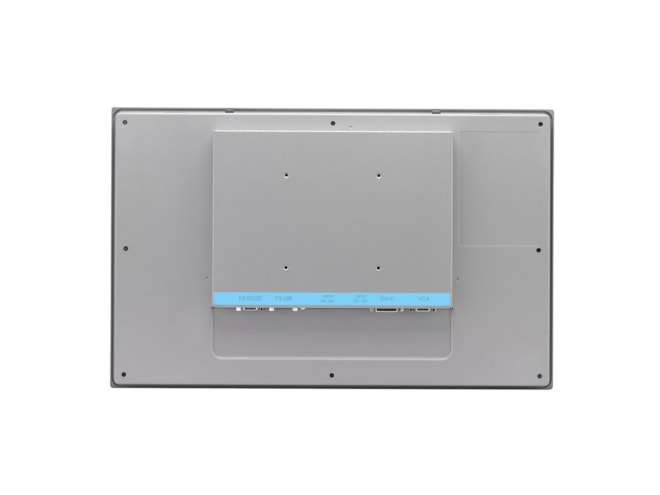

Advantech FPM-7181W-P3AE

18.5" WXGA Industrial Monitor with PCAP Touch Control, Direct VGA, and DVI Ports.

$1,351.00
Part Number
  • FPM-7181W-P3AE
Highlights...

Features

  • Ingress Protection: Front Panel IP66
  • Operating Temperature: 0~55 °C (32~131 °F)
  • Storage Humidity: 10~90% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI
  • OS Support: Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: 24 VDC
  • Video Port: VGA, DVI-D
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 18.5"
  • Max. Resolution: 1366 x 768
  • Viewing Angle (H/V°): 170/160
  • Dimensions (L x H): 488 x 309 mm
  • Enclosure: Die cast magnesium alloy, SECC
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 6 kg (13.22 lb)
  • Touch Type: PCAP
  • 18.5" WXGA TFT LED LCD
  • 16:9 widescreen aspect ratio, increases viewing area by 40%
  • Supports 10-point multi-touch control via USB interface in Windows 7/8 OS
  • Slim design enables easy installation
  • Supports various mount options: panel, wall, desktop, and VESA arm
  • Touchscreen with reliable glass surface and PCAP touch control
  • Robust system with SECC chassis and IP66-rated magnesium alloy front panel
  • OSD control buttons on rear panel
  • Lockable I/O connectors
With its brand new design, the FPM-7181W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP65 testing criteria. FPM-7181W projected capacitive touch can support 4-points touch application. New easy installation design can help you with one person for panel mounting.FPM-7181W monitor with slim enclosure is ideally suited to being either panel or wall mounted.
