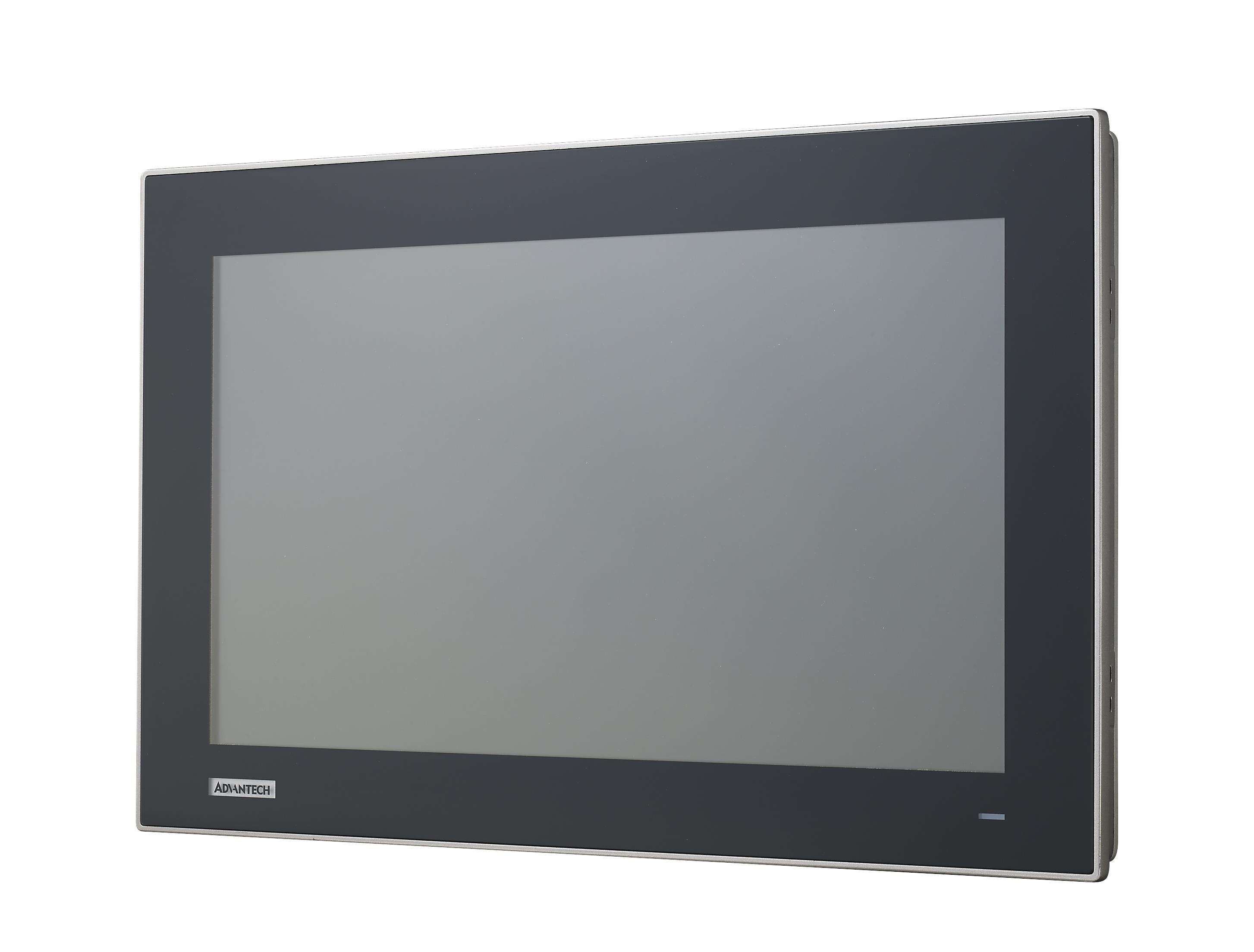

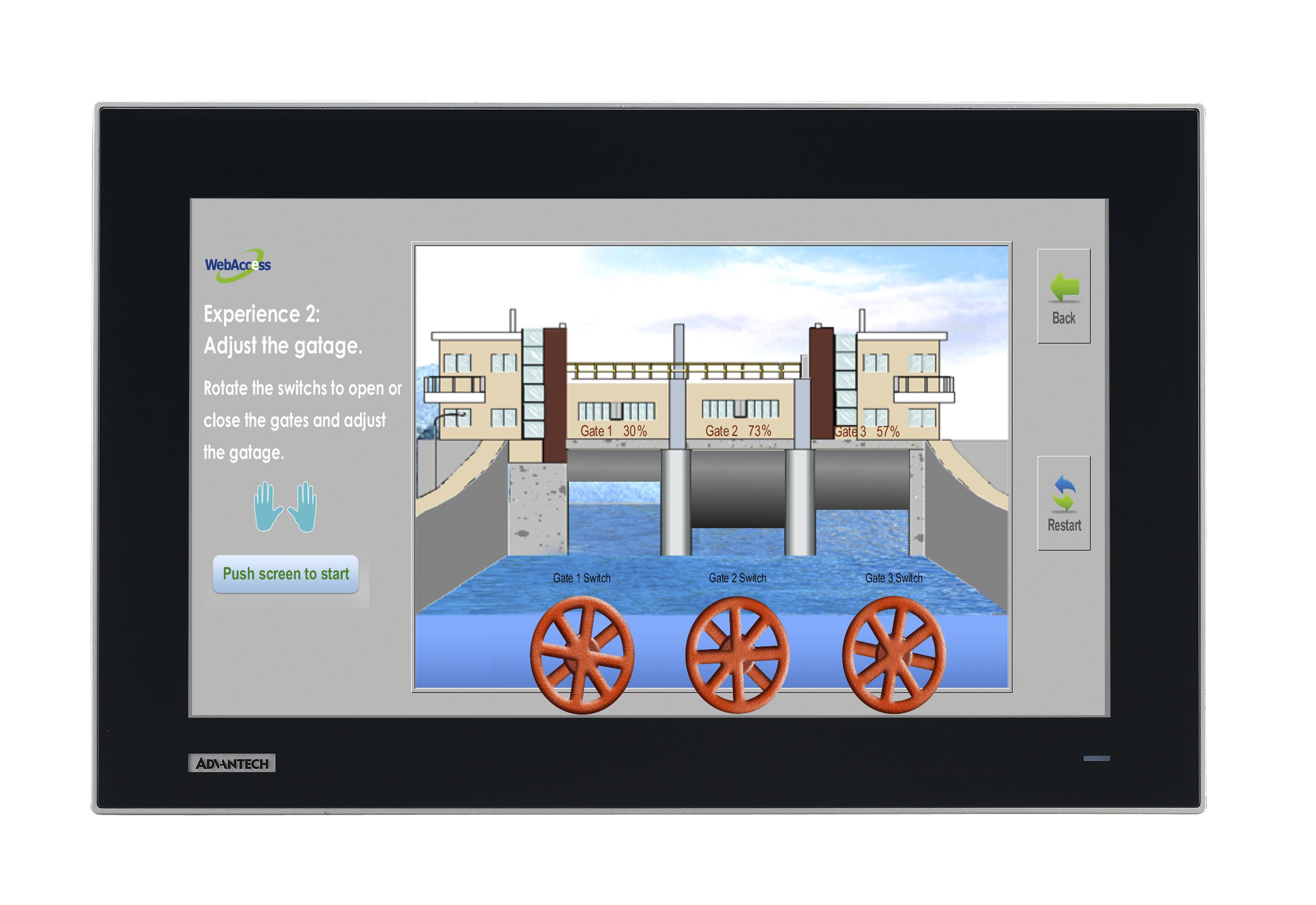

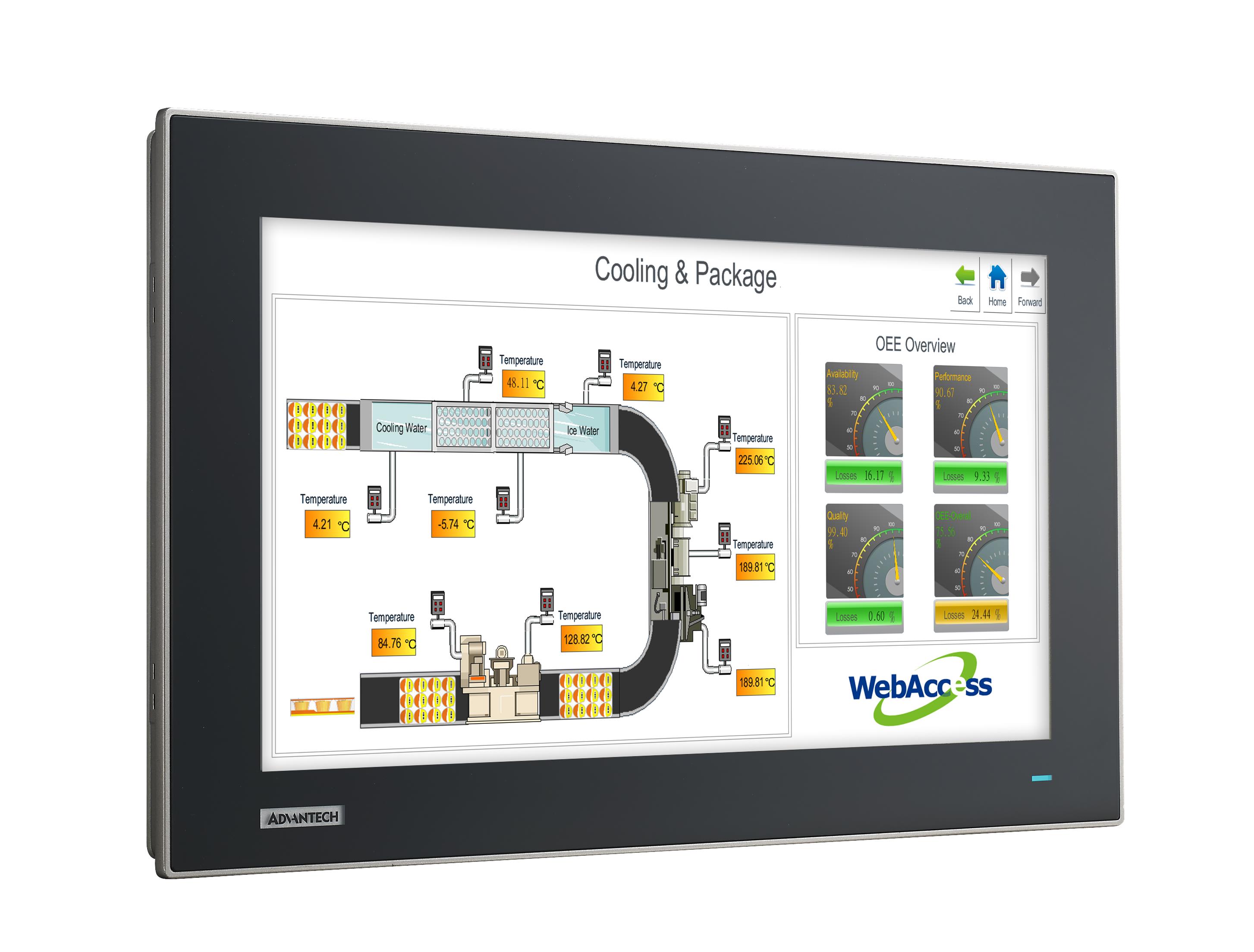

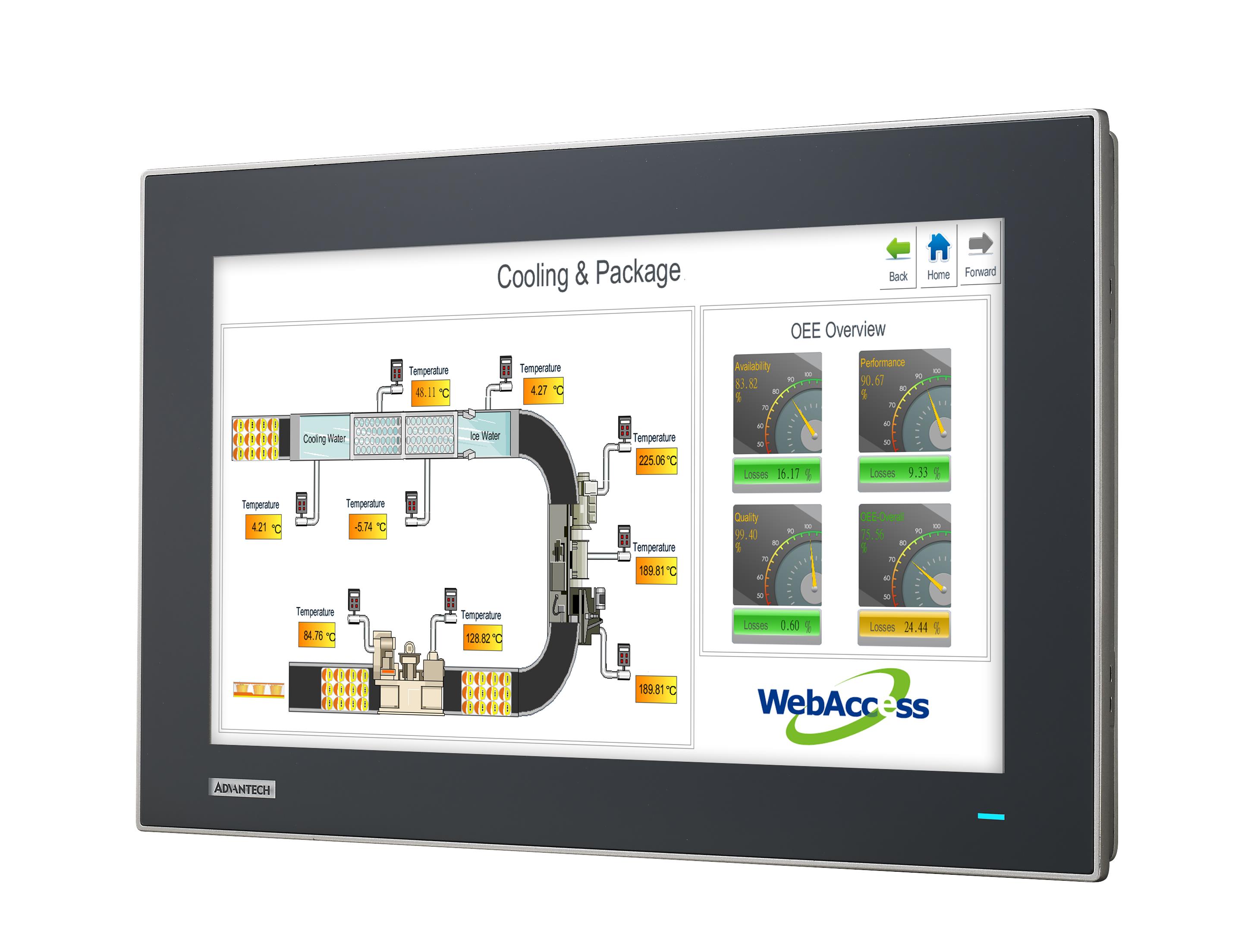

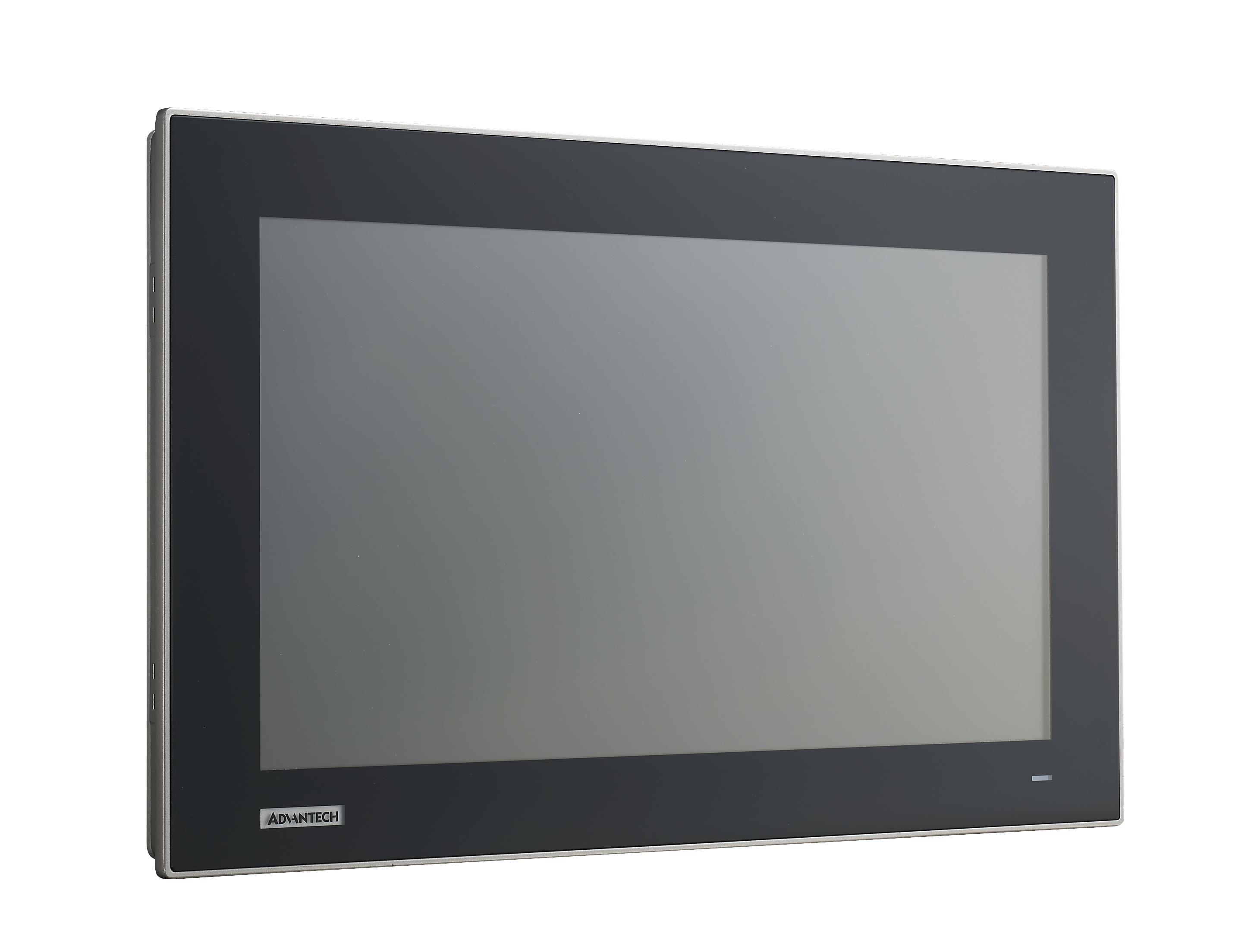

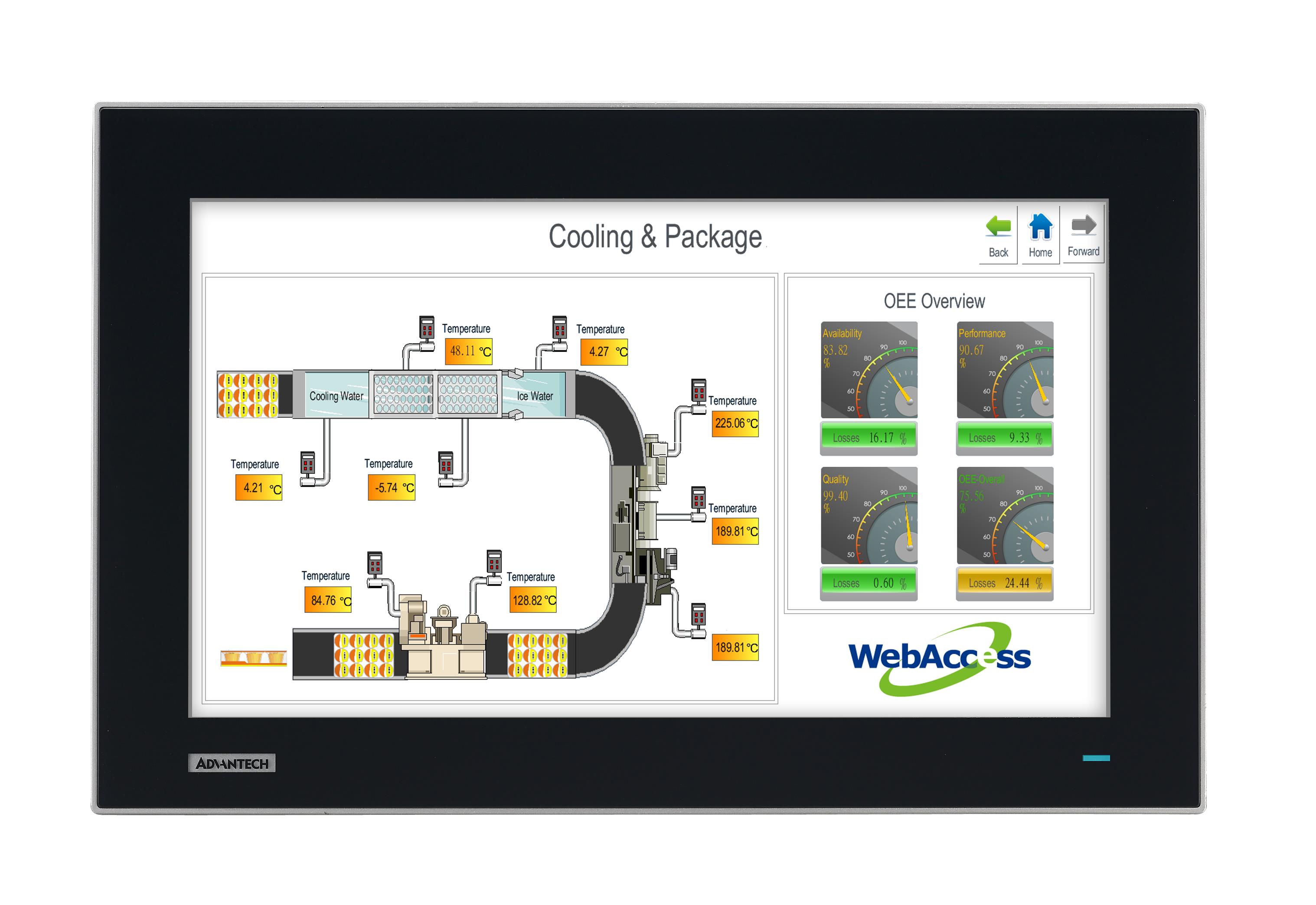

Advantech FPM-7151W-P3AE
15.6" WXGA Industrial Monitor with PCAP Touch Control, Direct VGA, and DVI Ports.
Overview
Features
- Ingress Protection: Front Panel IP66
- Operating Temperature: 0~55 °C (32~131 °F)
- Storage Humidity: 10~90% RH (non-condensing)
- Vibration Protection: 1 Grms, random
- Certification: CB, UL, CE, FCC Class A, CCC, BSMI
- OS Support: Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
- Power Input: 24 VDC
- Video Port: HDMI, VGA, DVI-D
- Power Connector: 1 x Phoenix Jack
- Display Size: 15.6"
- Max. Resolution: 1366 x 768
- Viewing Angle (H/V°): 170/160
- Dimensions (L x H): 419.7 x 269 mm
- Enclosure: Die cast magnesium alloy, SECC
- Mounting: Stand, Wall, VESA, Panel
- Weight (Net): 5 kg (11 lb)
- Touch Type: PCAP
- 15.6" WXGA TFT LED LCD backlight LCD with truly-flat multi-touch screen
- 16:9 wide screen display, view area increases by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8 OS
- Slim design enables easy installation
- Supports various mount options: panel, wall, desktop, and VESA arm
- Touchscreen with reliable glass surface and PCAP touch control
- Robust system with SECC chassis and IP66-rated magnesium alloy front panel
- OSD control buttons on rear pane

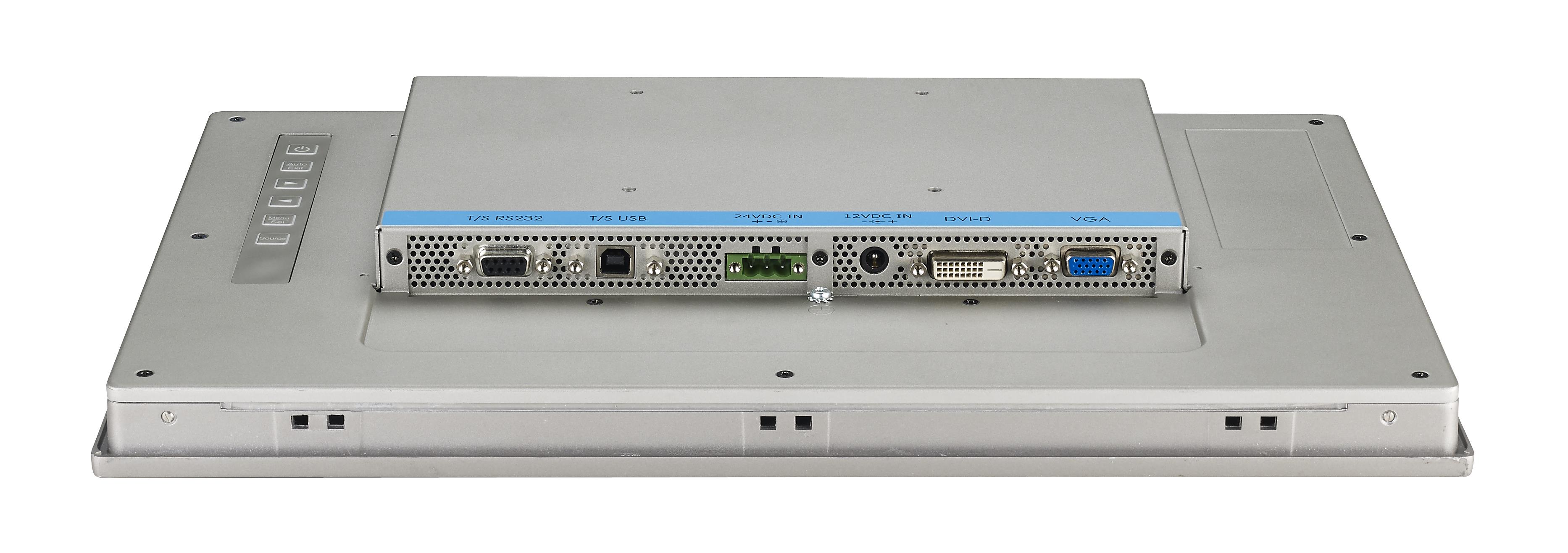

- Lockable I/O connectors
Description
With its brand new design, the FPM-7151W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP66 testing criteria. FPM-7151W projected capacitive touch can support 10 points (via USB interface in Windows 7/8) touch application. New easy installation design can help you with one person for panel mounting.FPM-7151W monitor with slim enclosure is ideally suited to being either panel or wall mounted.
