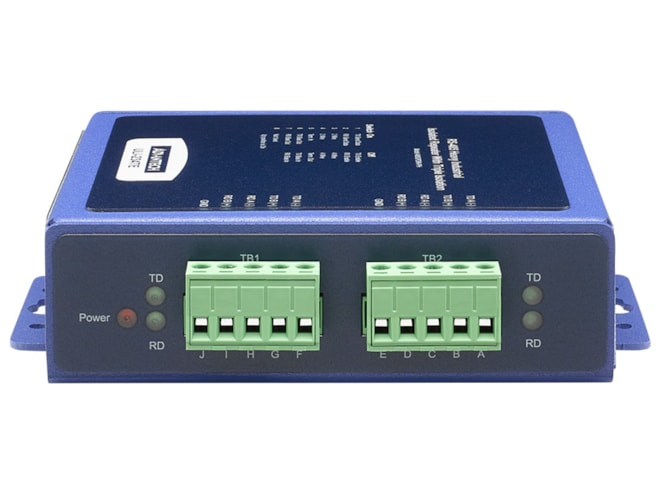

Advantech BB-485OPDRI-PH

ULI-234TE - Serial Repeater, RS-422/485 TB, Isolated, Ind. Panel, C1D2.

$336.00
Part Number
  • BB-485OPDRI-PH
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-422 / RS-485
  • Mounting: Panel
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-48VDC
  • Serial Port Connector Type: Terminal block
  • Isolation: 2kV
  • Repeater Maximum Distance: 1.2 Kilometers
  • Power and Data Isolated: Yes
  • Serial Type: RS-422/485
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Safety: UL C1/D2 (Class I, Division 2)
  • Substation: IEC-61850-3
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: Panel
  • Enclosure (Metal): Metal
  • RS-422/485 Repeator
  • 2kV, 3-way isolation (input/output/power)
  • Data rates:1.2 to 115.2 Kbps
  • Wide operating temperature range: -40 to +85 °C
  • IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE
  • 10 to 48 VDC input power (power supply required, sold separately)
A premium, heavy industrial RS-422/485 isolated repeater. Powerful isolation on both data ports protects equipment and data from ground loops and surges. It extends full or half-duplex RS-422/485 signals an additional 4000 feet and allows 32 additional nodes to your network. 10-48 VDC input power.
