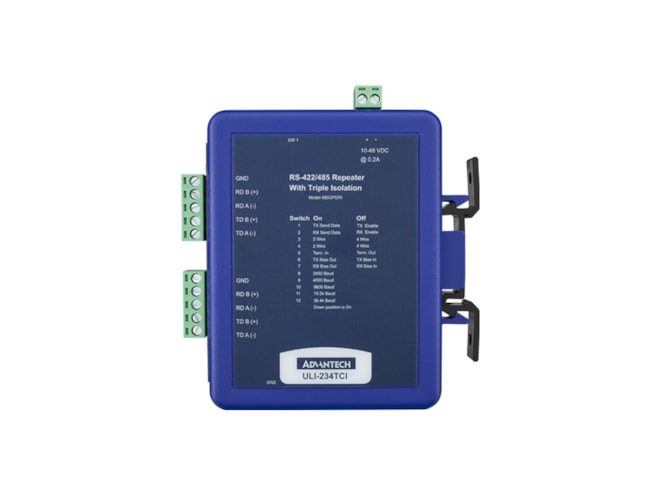

Advantech BB-485OPDRI

ULI-234TCI - 3-Way Isolated RS-422/485 Repeater, Industrial DIN Mount, Terminal Blocks.

$273.00
Part Number
  • BB-485OPDRI
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-422 / RS-485
  • Mounting: DIN
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-48VDC
  • Serial Port Connector Type: Terminal block
  • Isolation: 2kV
  • Repeater Maximum Distance: 1.2 Kilometers
  • Power and Data Isolated: Yes
  • Serial Type: RS-422/485
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Safety: UL C1/D2 (Class I, Division 2)
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: DIN
  • Repeater extends signals an additional 1200 m
  • 2 KV, 3-way optical isolation (input/output/power)
  • Data rate: up to 115.2 kbps
  • Wide temperature range: -40 to +80 °C
  • DIN rail mount, IP30 case
  • 10-48 Vdc input (power supply required, not included, sold separately)
  • Allen-Bradley 1747-AIC (DH-485 network)
Isolated RS-422/485 repeater designed for rugged industrial environments. Powerful optical isolation on both data ports protects equipment and data from ground loops and surges. Removable terminal blocks make wiring a snap. Power is connected through separate terminal block that accepts 10-48 VDC.
