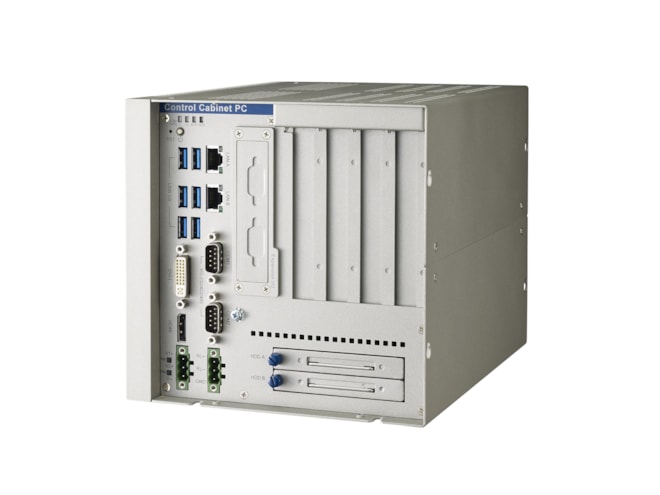

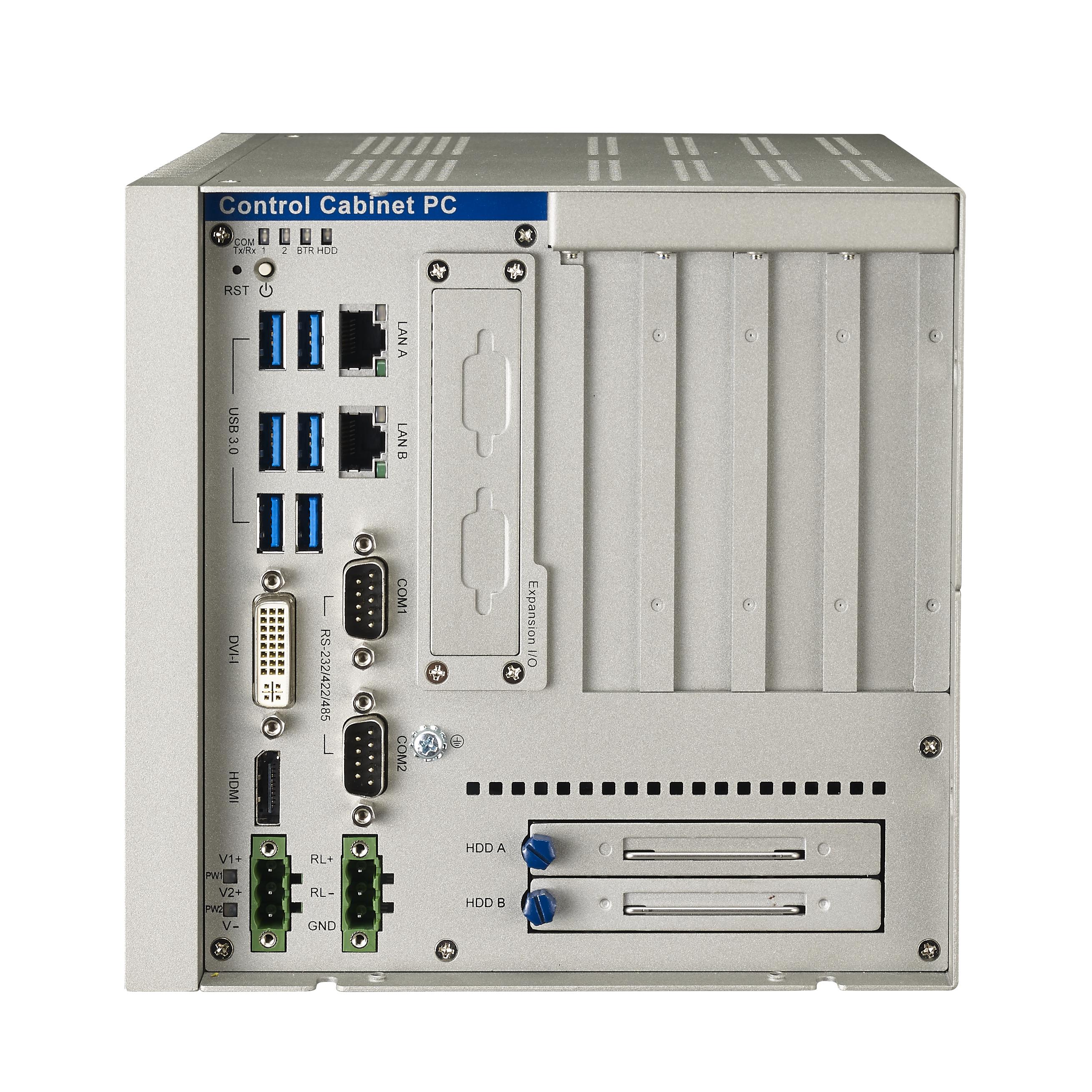

Advantech UNO-3285G-634BE

Expandable Embedded Box IPC with 6th Gen Intel® i3-6102E CPU, 2 PCIE, 2 PCI.

$1,937.00
Part Number
  • UNO-3285G-634BE
Highlights...

Features

  • Ingress Protection: IP20
  • Relative Humidity: 10~95% RH (non-condensing)
  • Shock Protection: 50 G, half sine
  • Vibration Protection: 4 Grms, random
  • Certification: UL, CE, FCC Class A, CCC, BSMI
  • CPU: 6th Gen. Intel® Coreâ„¢ i3-6102E 1.9GHz Dual-Core
  • Graphics Engine: Intel® HD Graphics
  • Memory: 1 x SO-DIMM with 8 GB DDR4 2133 MHz, 1 x DDR4 SO-DIMM Slot
  • OS Support: Microsoft® Windows 10 2019 LTSC, WES7, Linux
  • Power Input: 12~36 VAC
  • Storage: 2 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x CFast
  • System Chip: Intel QM170
  • Audio: Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)
  • Displays: 1 x HDMI, 1 x DVI-I
  • Expansion: 2 x Full-size mPCIe Slot, 2 x PCIe x8, 2 x PCI
  • LAN Ports: 2 x 10/100/1000 Mbps
  • Power Connector: 2 x 3-Pin Terminal Block
  • Serial Ports: 2 x RS-232/422/485, 2 x RS-232 (Pin Header)
  • USB Ports: 6 x USB 3.0
  • Dimension (W x H x D): 182 x 177 x 238 mm
  • Enclosure: Aluminum housing
  • Weight (Net): 4.5 kg
  • Intel® 6th Gen Coreâ„¢ i7-6822EQ Quad Core Processors with 8GB DDR4 Memory
  • 2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
  • 2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
  • Dual Hot-Swappable storage with thumb screw support for RAID 0/1
  • Supports Fieldbus Protocol by iDoor Technology
  • Dual power input for power redundancy
  • Front LED indicator design for monitoring system status
The high-performance fanless control cabinet PC UNO-3283G/ 3285G equipped with a Intel® 6th Gen Core™ i7/ i5/ i3 processor and QM170 PCH chipset, rich I/O including 6 x USB 3.0, 2 x GigaLAN, 2 x RS-232/422/485, and 2 x RS-232 (pin header) ports, as well as DVI-I and HDMI display interfaces, UNO-3283G/ 3285G is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of two hot-swappable HDD/SSD bays and up to 5 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply.
