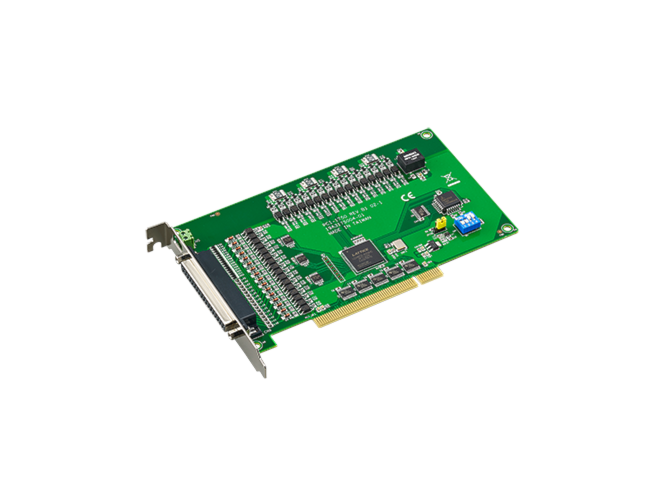

Advantech PCI-1750SO-AE

32-ch Isolated Digital I/O and 1-ch Counter PCI Card.

$177.00
Part Number
  • PCI-1750SO-AE
Highlights...

Features

  • Counting Range: 16-bit
  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • 16 isolated DI and 16 isolated DO channels
  • High voltage isolation on all isolated channels (2,500 VDC)
  • High sink current on isolated output channels (200 mA/channel)
  • Supports dry contact or 5 ~ 50 VDC isolated inputs
  • Interrupt handling capability
  • Timer/counter interrupt capability
PCI-1750 offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750 corresponds to a bit in a PC I/O port. This makes PCI-1750 very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC. So you can then easily do configurations by software.
