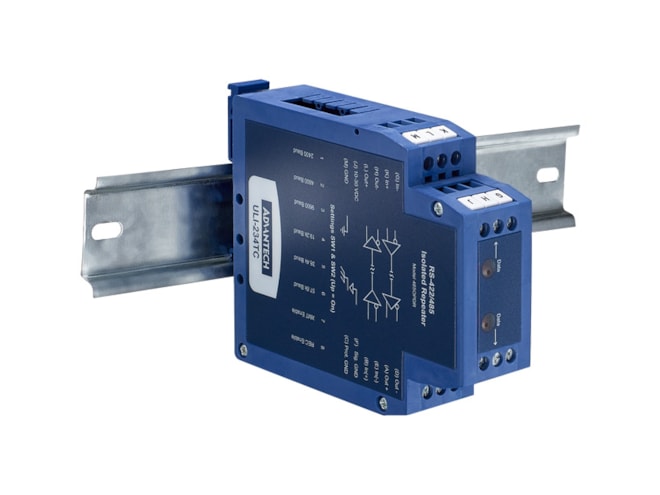

Advantech BB-485OPDR

ULI-234TC - RS-422/485 Repeater / Isolator, Industrial, Terminal Blocks.

$237.00
Part Number
  • BB-485OPDR
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-422 / RS-485
  • Mounting: DIN
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-30VDC
  • Serial Port Connector Type: Terminal block
  • Isolation: 2kV
  • Repeater Maximum Distance: 1.2 Kilometers
  • Serial Type: RS-422/485
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: DIN
  • Extends RS-422/485 additional 1.2km
  • 2 KV isolation; 600W surge suppression
  • 10-30 Vdc power supply required (not included, sold separately)
  • DIN rail mount (panel mount adapter available)
  • cULus Recognized, UL508
RS-422/485 line repeater, provides isolation and surge suppression. The repeater extends an existing network an additional 1.2 km and expands it beyond 32 nodes. Data signals and power inputs connect via terminal block. Automatic Send Data Control (no SW drivers). 10-30 VDC power supply required.
