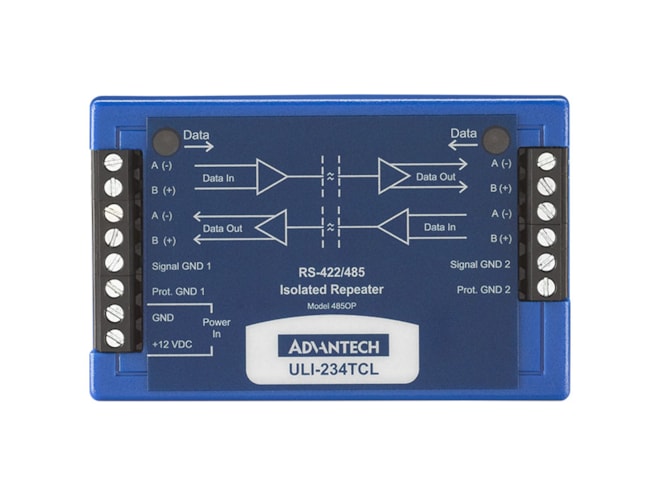

Advantech BB-485OP

ULI-234TCL - RS-422/485 (Terminal Block) Isolator.

$181.00
Part Number
  • BB-485OP
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-422 / RS-485
  • Mounting: Inline
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: 10-14VDC
  • Serial Port Connector Type: Terminal block
  • Temperature: 0 to 40C
  • Isolation: 2kV
  • Repeater Maximum Distance: 1.2 Kilometers
  • Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
  • Serial Type: RS-422/485
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Power Input (DC): 10 - 14 VDC
  • Mounting: Inline
  • Device and data 2 kV optical isolation and 1.2 km (4000 ft) extension
  • Add up to 32 nodes to RS-485 network
  • Inline installation
  • External 12 Vdc power source required (included)
  • Modbus support
An optically isolated RS-422/485 signal repeater. In addition to 2KV isolation on the data lines, it can be used to extend RS-422/485 circuits 1.2 km. Offers ability to add 32 nodes to an RS-485 network and join 2 and 4-wire systems. Compact design fits almost anywhere, easy installation.
