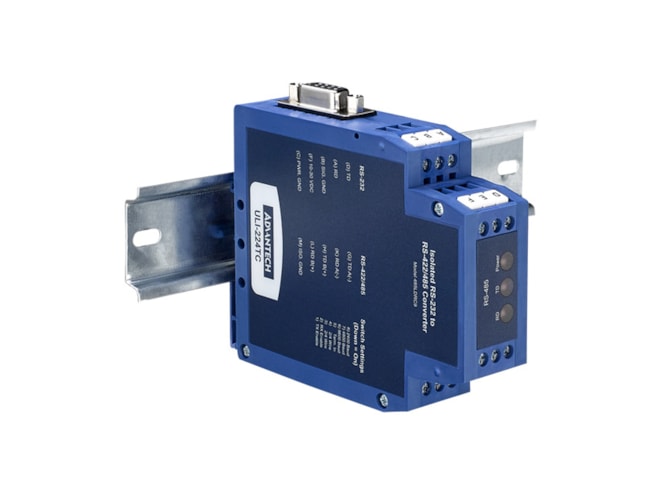

Advantech BB-485LDRC9

ULI-224TC - RS-232 to Isolated RS-422/485 Converter, Industrial, DIN Rail Mounted.

$179.00
Part Number
  • BB-485LDRC9
Highlights...

Features

  • Technology: Serial
  • Serial Converter: RS-232 to RS-422/485
  • Mounting: DIN
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Power: 10-30VDC
  • Maximum Serial Transmission Speed: 19.2 Kbps
  • Isolation: 2kV
  • Isolation: 2,000 VDC
  • Surge Protection: 500W
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: DIN
  • Converts RS-232 (DB9F or TB) to RS-422/485 (TB)
  • 2 kV optical isolation on input/output; 500W surge suppression
  • 19.2 kbps data rate; extends data up to 1.2 km
  • External 10-30 power supply required (not included)
  • Automatic Send Data control - no software drivers required
This optically isolated RS232 to RS422/485 converter features Automatic Send Data Control - no software drivers needed to control handshake lines. RS232 signals on DB9 female connector or terminal block. RS422/485 signals and power inputs connect to terminal blocks. External power required.
