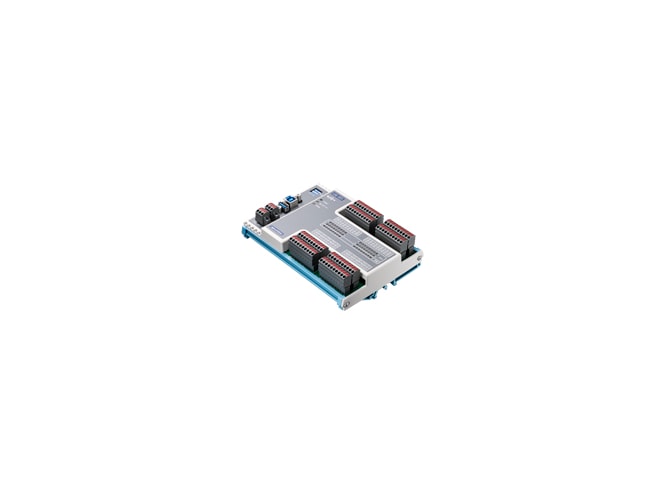

Advantech USB-5855-AE

32-ch Isolated Digital Input and 16-ch PhotoMOS Relay USB 3.0 I/O Module.

$429.00
Part Number
  • USB-5855-AE
Highlights...

Features

  • Channels: 32 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 16 Form A
  • Contact Rating (Resistive): 1.2 A @ 60 VDC
  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 32-ch digital input and 16-ch PhotoMOS Relay output (Form A) isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • 1500 VDC optical isolation for relay outputs
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
