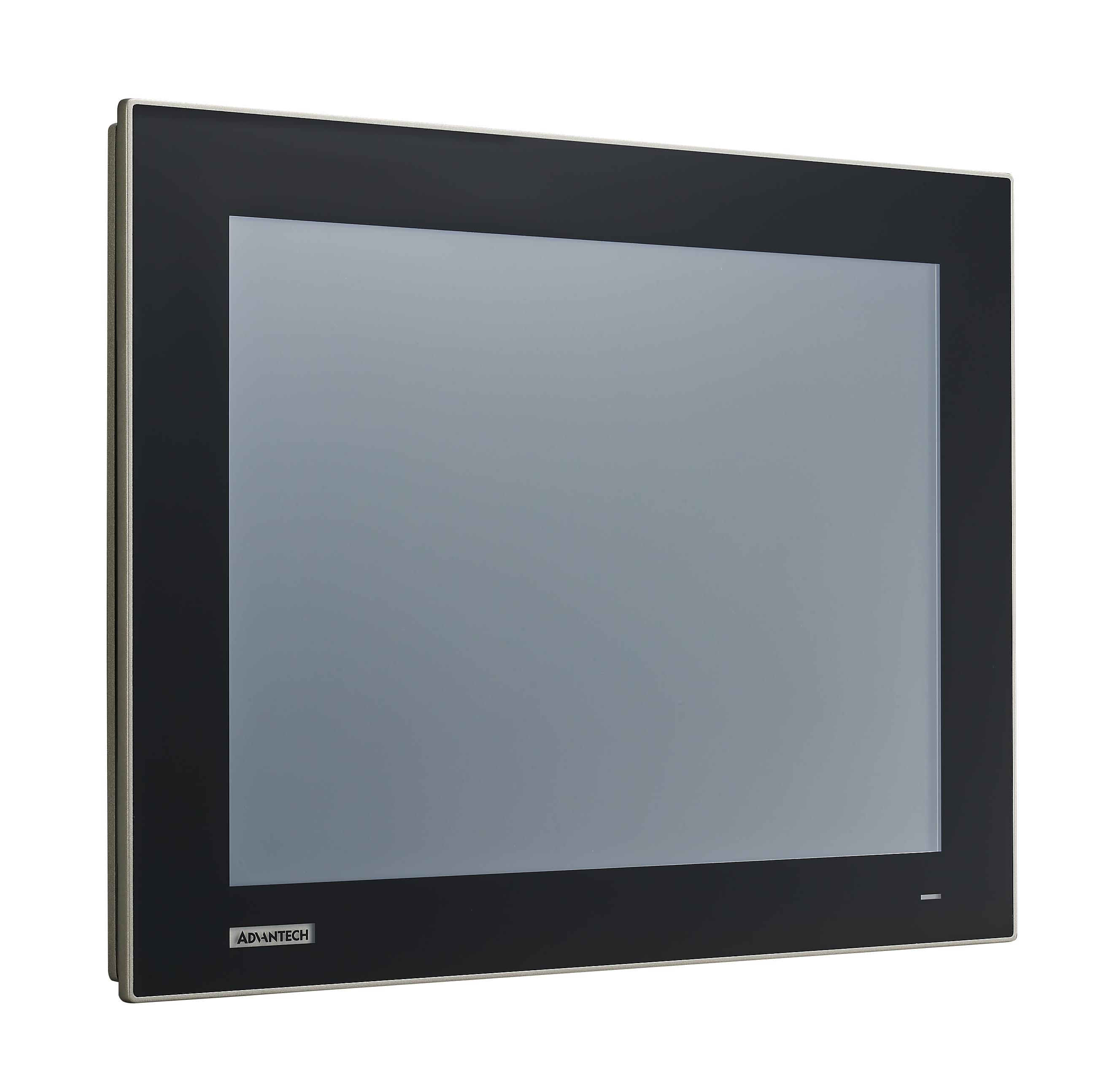

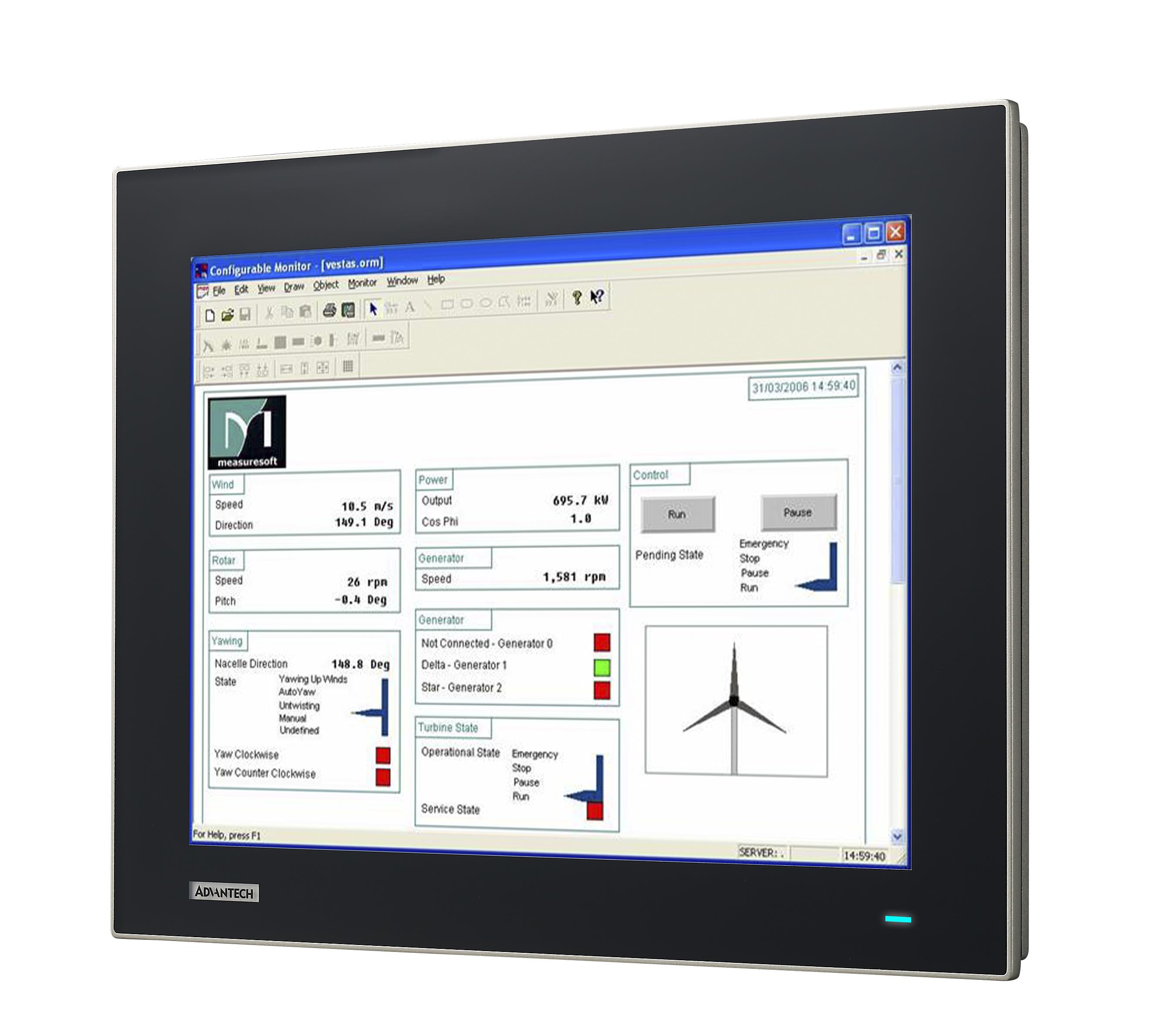

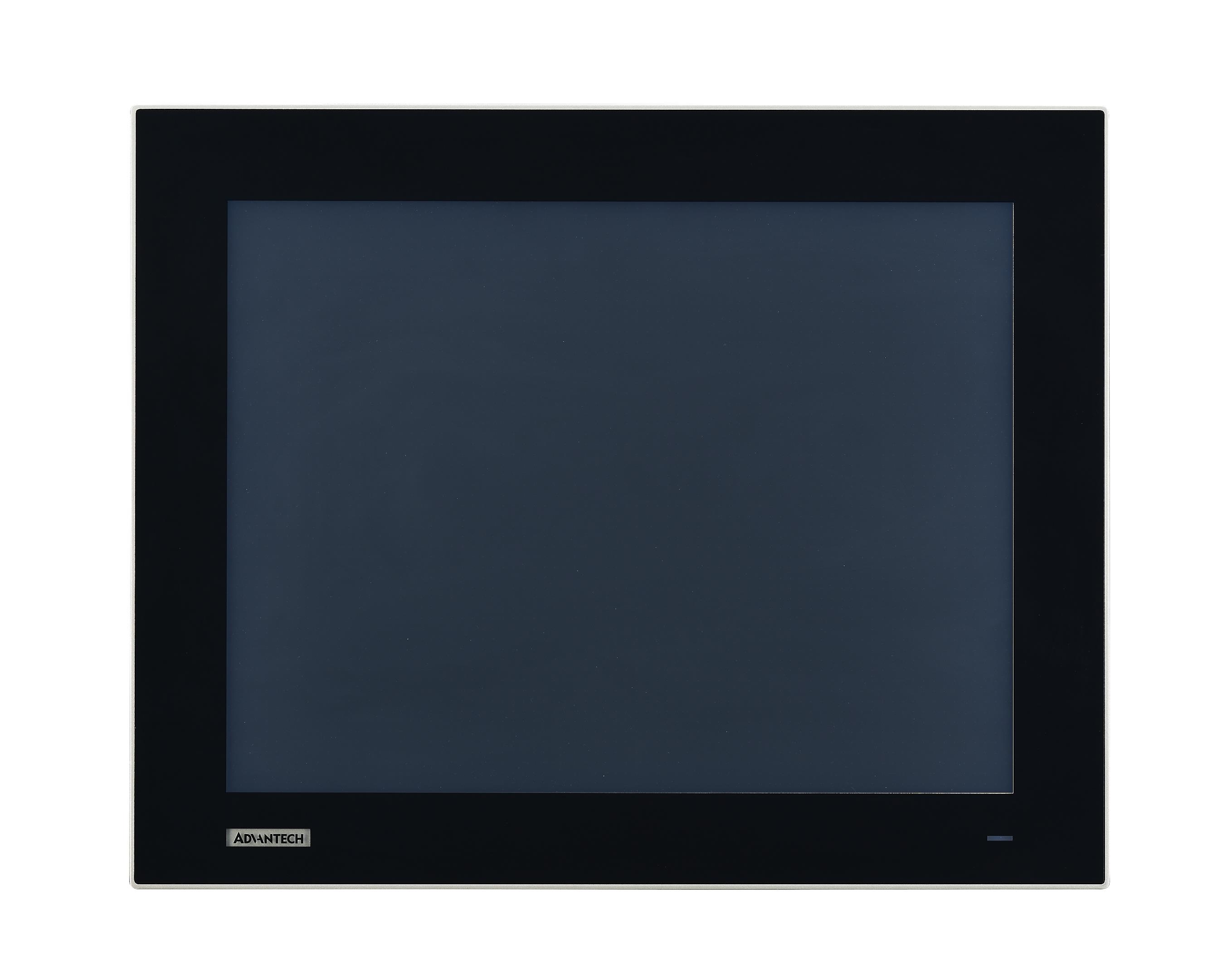

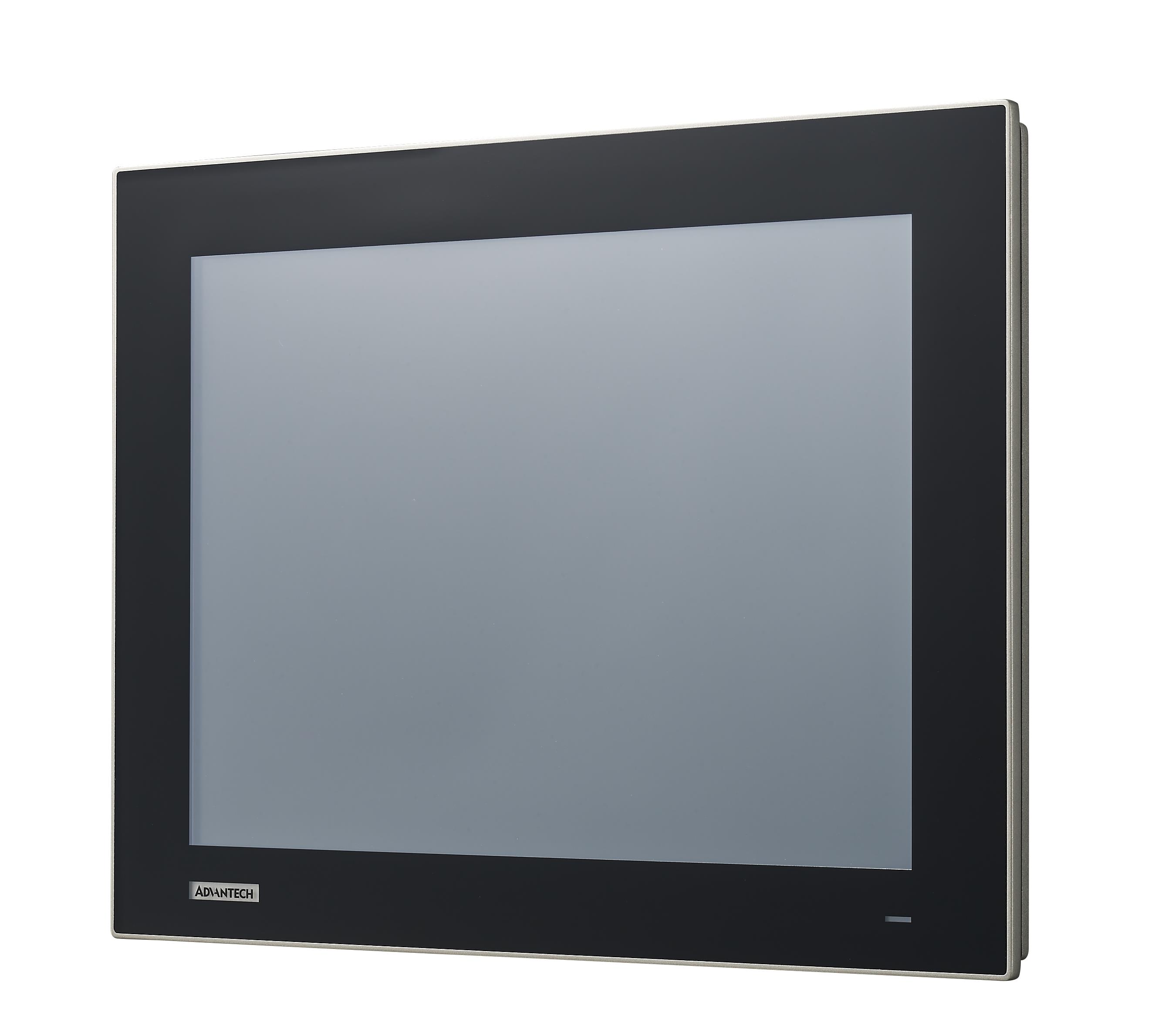

Advantech FPM-7151T-R3AE

15” XGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature Range.

$917.00
Part Number
  • FPM-7151T-R3AE
Highlights...

Features

  • Ingress Protection: Front Panel IP66
  • Storage Humidity: 10~90% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI
  • OS Support: Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: 24 VDC
  • Video Port: VGA, DP
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 15"
  • Max. Resolution: 1024 x 768
  • Viewing Angle (H/V°): 160/140
  • Dimensions (L x H): 382 x 307.3 mm
  • Enclosure: Die cast magnesium alloy, SECC
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 4.2kg (9.26 lb)
  • Touch Type: 5-wire resistive
  • 15" XGA TFT LED LCD with 50K backlight lifetime
  • Robust system with IP66-rated aluminum front panel
  • Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
  • Anti-glare touchscreen with tempered glass
  • Supports various mount options: panel, wall, desktop, and VESA arm
  • Combo RS-232+USB interface for touchscreen functionality
  • OSD control buttons on rear panell

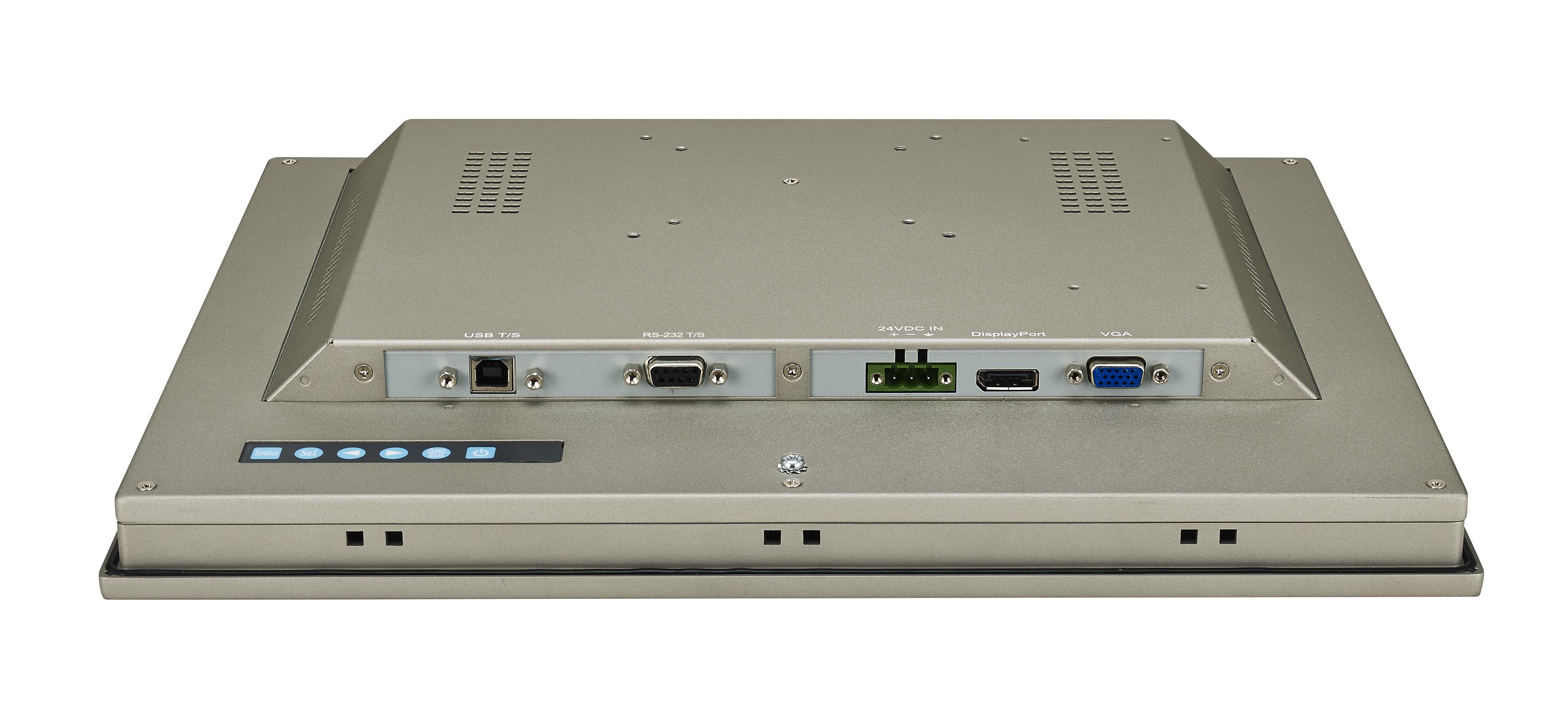

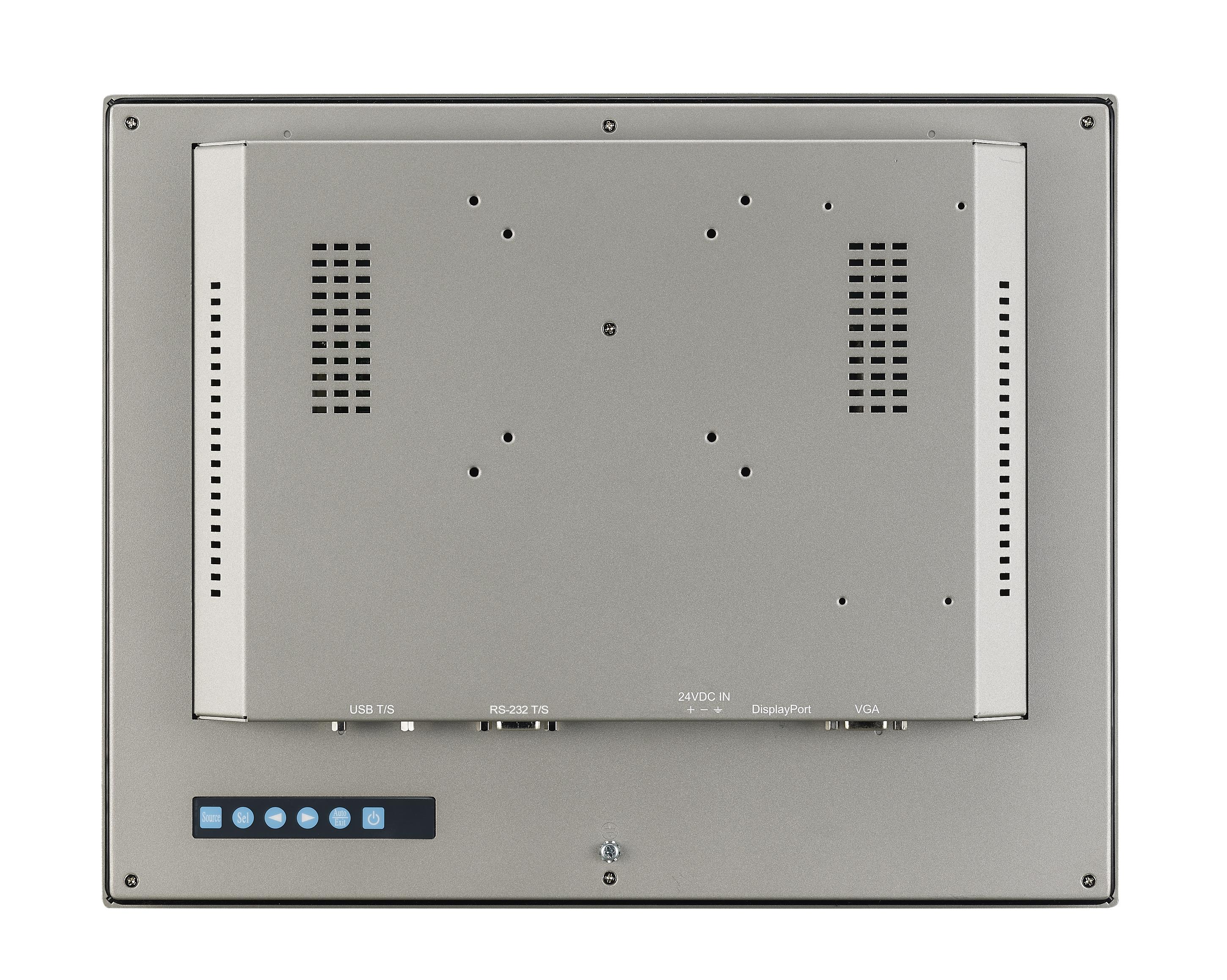

  • Lockable I/O connectors
FPM-7000T series is the first true-flat design in 4:3 industrial grade monitor. To enhance its durability, the FPM-7000T series is true-flat touch screen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C for a variety of user environments. Designed with various mounting methods for users to apply into the system or adopt to the environment easily.
