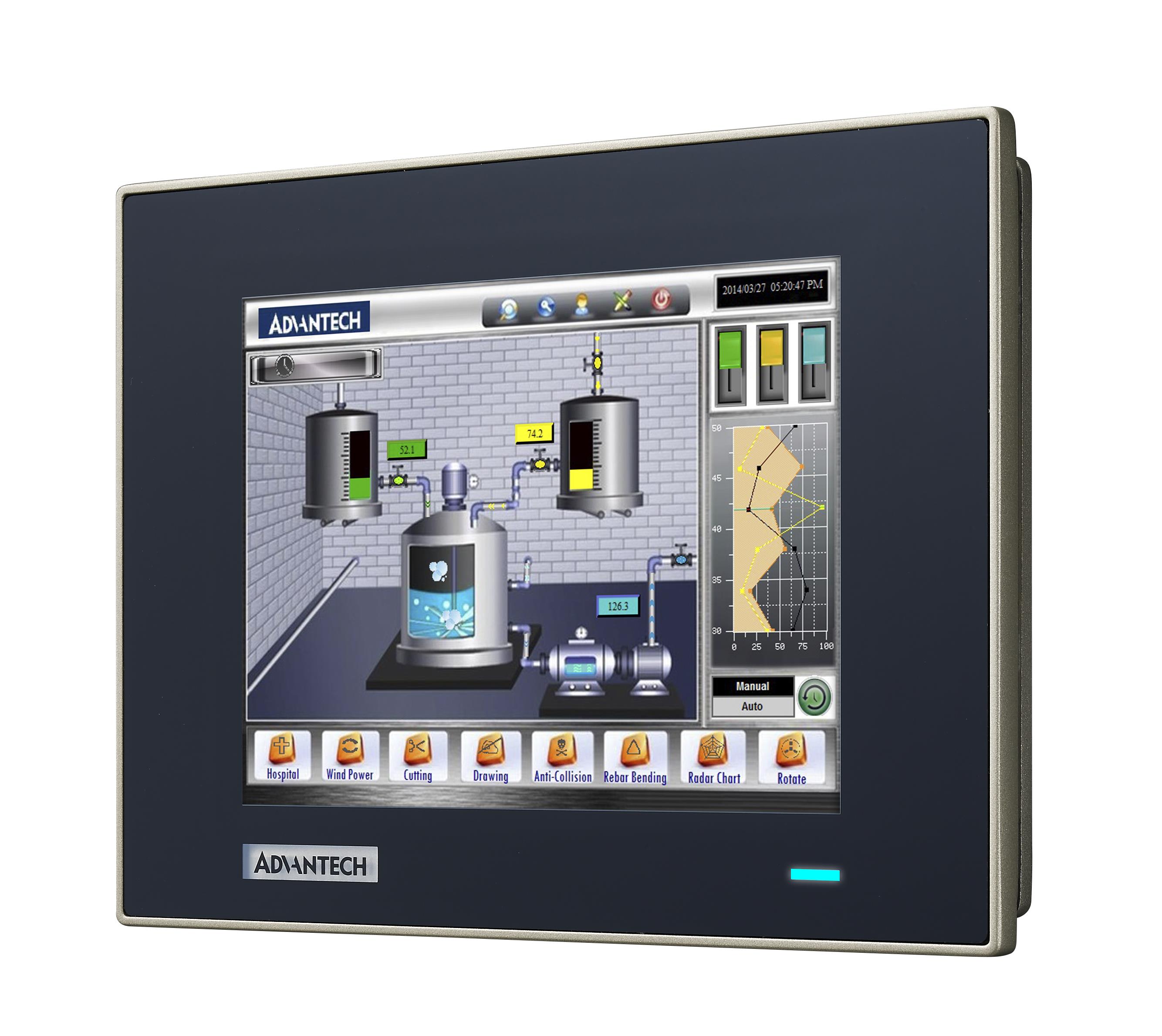

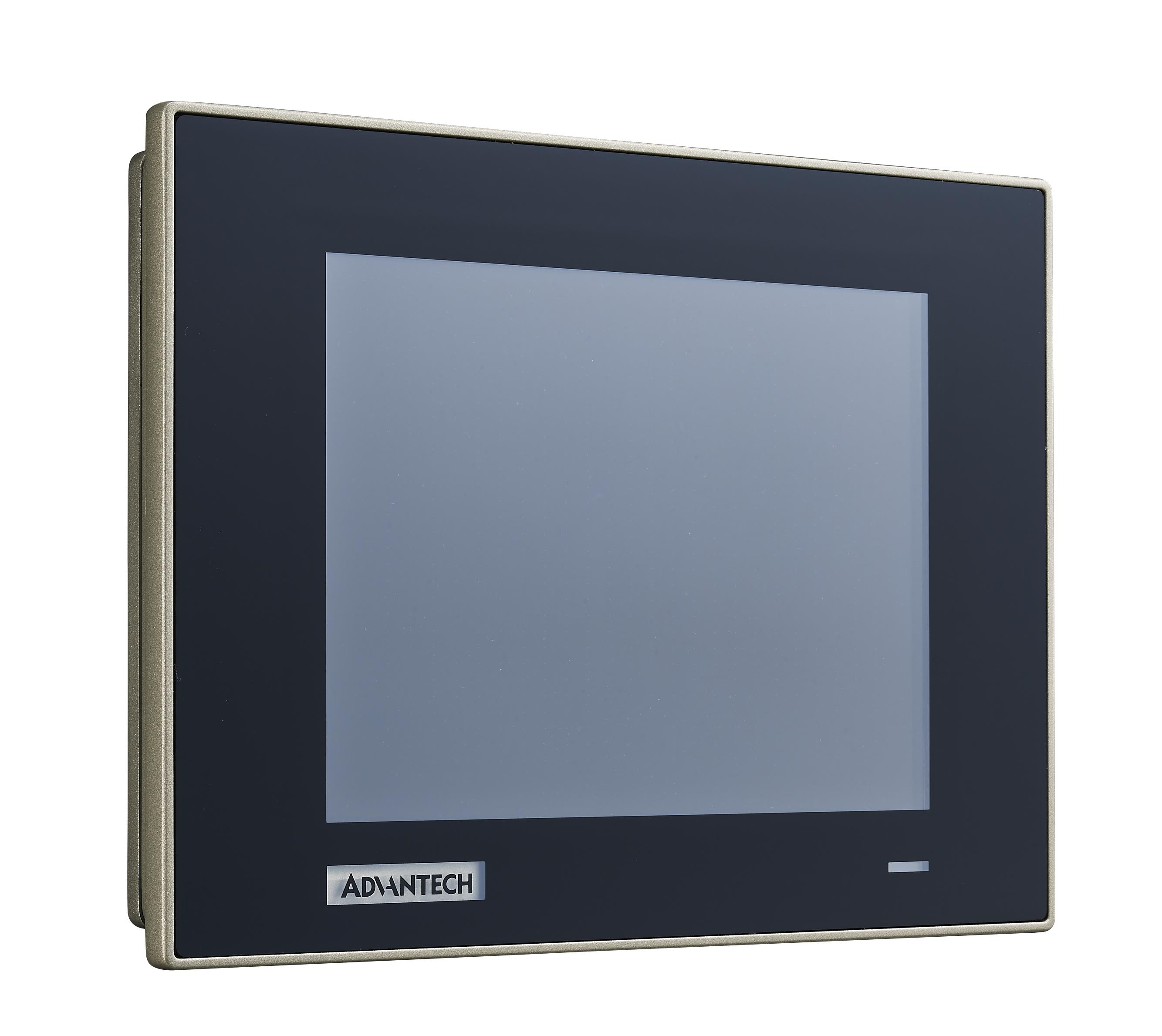

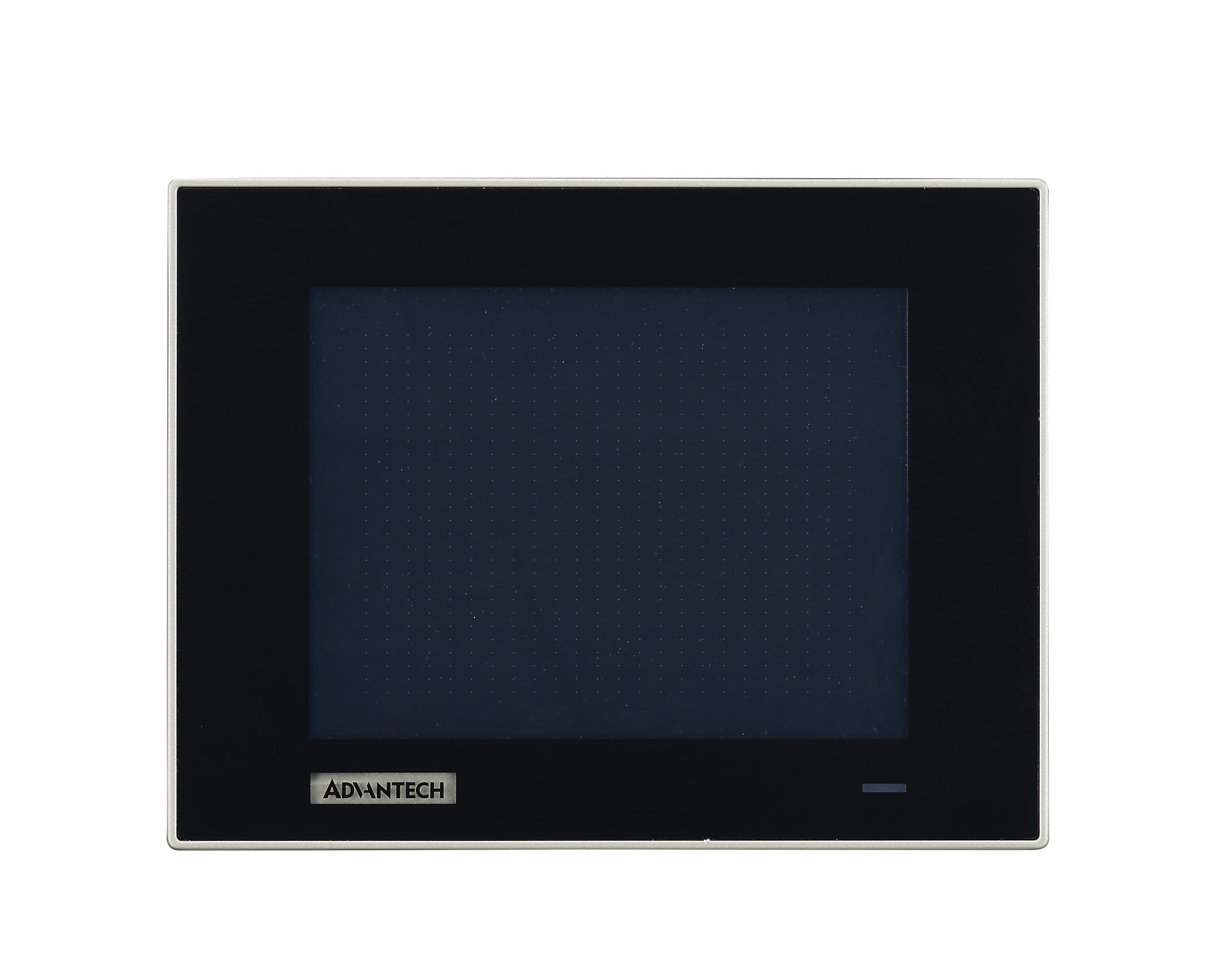

Advantech FPM-7061T-R3AE

6.5" VGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature.

$602.00
Part Number
  • FPM-7061T-R3AE
Highlights...

Features

  • Ingress Protection: Front Panel IP66
  • Storage Humidity: 10~90% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI
  • OS Support: Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: 24 VDC
  • Video Port: VGA, DP
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 6.5"
  • Max. Resolution: 640 x 480
  • Viewing Angle (H/V°): 160/140
  • Dimension (W x H x D): 199 x 151 x 46.1 mm
  • Enclosure: Die cast magnesium alloy, SECC
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 1.2 kg (2.64 lb)
  • Touch Type: 5-wire resistive
  • 6.5" VGA TFT LED LCD with 50,000 backlight life time
  • Robust design with IP66 compliance aluminum front panel
  • Wide operating temperature support -20~60°C
  • Anti-glare screen with tempered glass
  • Supports Panel, Wall, Desktop, or VESA arm mounting
  • USB interface for touchscreen function
  • OSD control pad on rear cover

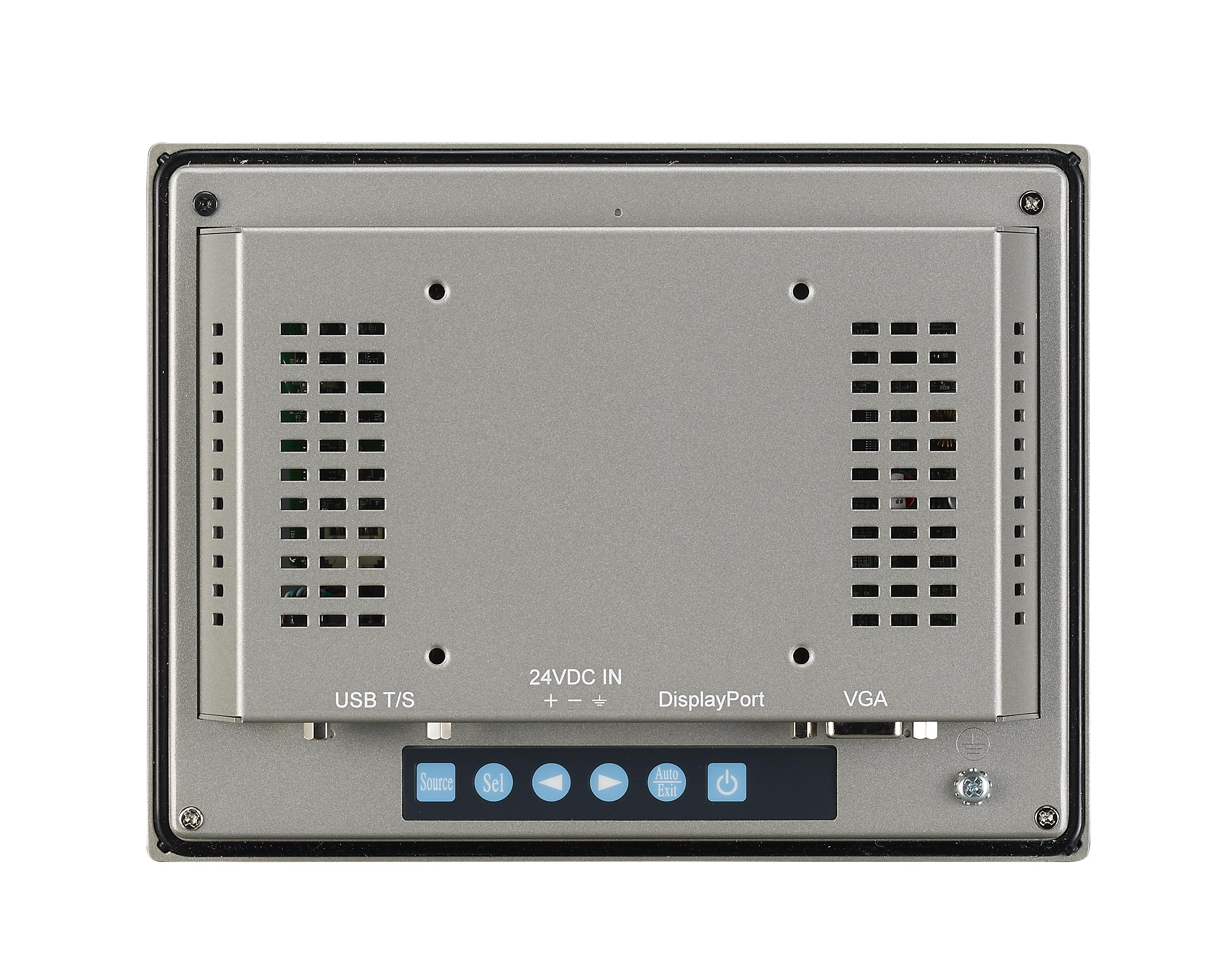

  • Lockable I/O connectors
FPM-7000T series is the first true-flat design in 4:3 industrial grade monitor. To enhance its durability, the FPM-7000T series is true-flat touch screen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C for a variety of user environments. Designed with various mounting methods for users to apply into the system or adopt to the environment easily.
