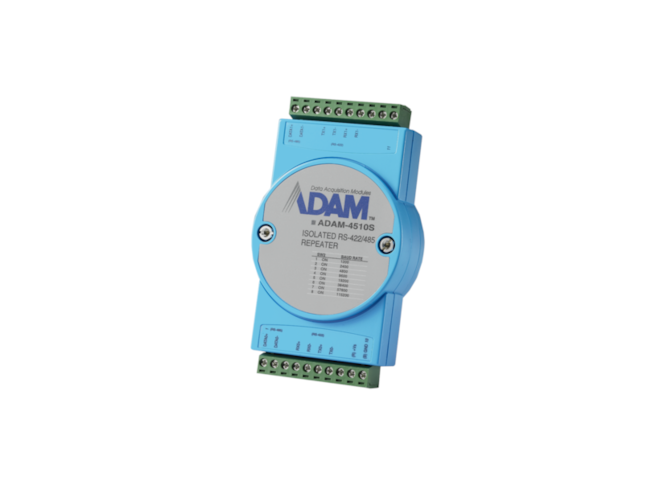

Advantech ADAM-4510S-F

Isolated RS-422/485 Repeater.

$195.30
Part Number
  • ADAM-4510S-F
Highlights...

Features

  • Isolation Voltage: 3,000 VDC
  • Connectors: 2 x 10-pin plug-in screw terminal
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 1200 bps~115.2 kbps
  • Converter/Repeater: RS-422/485 Repeater
  • Automatic RS-485 data fl ow control
  • 3000 VDC isolation protection
  • Surge protection RS-485 data line
  • Transmission speed up to 115.2 Kbps
  • LED indicator to monitor status
Most industrial computer systems come with standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-422 and RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The ADAM-4520/4522 converter lets you take advantage of RS-422 and RS-485 on systems originally equipped with RS-232. It transparently converts RS-232 signals into isolated RS-422 or RS-485 signals. You do not need to change your PC's hardware or your software. The ADAM-4510S repeater simply amplifies, or boosts, existing RS-422/485 signals to enable them to cover longer distances. It extends the communication distance by 4000 ft. (1200 m) or increases the maximum number of connected nodes by 32.
