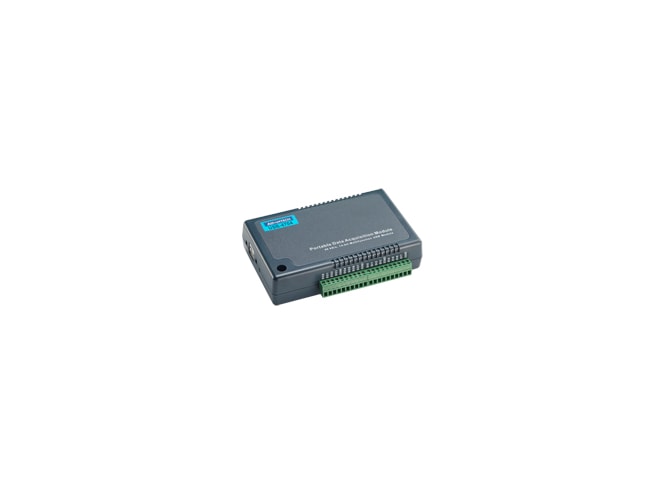

Advantech USB-4704-AE

48 kS/s, 14-bit, 8-ch Multifunction USB Module.

$143.00
Part Number
  • USB-4704-AE
Highlights...

Features

  • Input Range: ±20 V, ±10 V, ±5 V, ±4 V, ±2.5 V, ±2 V, ±1.25 V, ±1 V
  • Resolution(Bits): 14-bit
  • Sampling Rates(S/s): 48 KS/s (sum)
  • Output Ranges: 0~5 V
  • Resolution: 12-bit
  • Channels: 8 (TTL)
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Supports USB 2.0
  • Bus-powered
  • 8 x analog input channels
  • 14-bit resolution AI
  • Sampling rate up to 48 kS/s
  • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
  • Portable
USB-4704 is a low-cost USB data acquisition module. You no longer need to open the chassis to install DAQ modules. Just plug in the module, then get the data. It’s easy and efficient. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, USB-4704 is the perfect way to add measurement and control capability to any USB capable computer. It obtains all required power from the USB port, so no external power connection is ever required. With the features of USB-4704, it is your most cost effective choice of lab or production line test & measurement tool.
