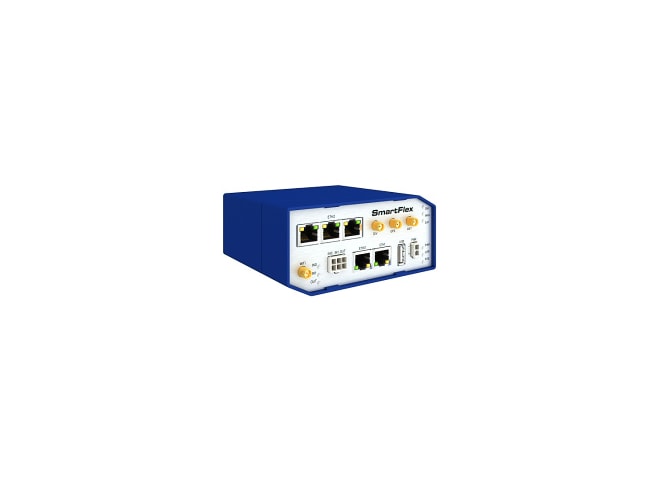

Advantech BB-SR30518110

Features

• NAM: Yes
• NAM: Yes
• I/O: 2 x DI + 1 x DO
• MicroSD: Yes
• WiFi 2.4/5 GHz: Yes
• GNSS receiver: Yes
• PoE-PSE: PoE+ 30W
• Cellular Antennas: 2 x SMA
• WiFi Antennas: 1 x R-SMA
• GPS Antenna: 1 x SMA
• GPRS/EDGE: Yes
• Power Input (DC): 10 ~ 60 VDC
• 3G/HSPA+: Yes
• Sleep Mode: Yes
• Operating Humidity: 0~95%
• Dimensions (W x H x D): 125 x 55 x 97 mm
• Enclosure (Plastic): Yes
• Mounting (DIN-rail): Yes
• Advances Software Tool: WA/DMP, WA/VPN
• WiFi 2.4/5 GHz: Yes
• GPS: Yes
• PoE PSE: Yes
• USB: Yes
• I/O 2x DI + 1x DO: Yes
• MicroSD: Yes
• Case: Plastic
• CE: Yes
• FCC/IC: Yes
• Carriers: AT&T / Verizon / Rogers
• Power Supply: 10 to 60 V DC
• Humidity: 0 to 95 %
• Dimensions [mm]: 55 x 97 x 125
• Cellular Antennas: 2x SMA
• WiFi Antennas: 1x R-SMA
• GPS Antenna: 1x SMA
• LTE Bands: LTE B2, B4, B5, B13, B17
• UMTS Bands: B2 (1900), B4 (1700), B5 (850)
• GSM Bands: 850, 900, 1800, 1900
• LED Indicators: SIM, WAN, DAT, PWR, USR, POE, IN0, IN1, OUT, ETH
• Mounting: DIN
• LTE cat.3, 3G/HSPA+, GPRS/EDGE, NAM, 2x SIM
• LTE B2, B4, B5, B13, B17
• 2x Ethernet port with PoE support
• Powerful CPU and Memory, Hosting of SW IoT applications
• 5x ETH, PSE PoE+, PoE+ IEEE 802.3at & 802.3af on 2x ETH
• WiFi 2.4/5 GHz, GPS, USB, I/O 2x DI + 1x DO, MicroSD
• Certifications: CE, FCC/IC, AT&T, Verizon
• Advanced networking, Diagnostics, VPN support, Firewall
