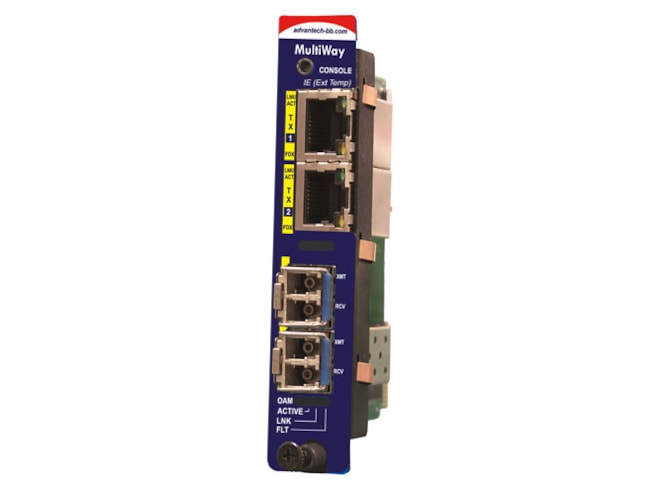

Advantech IMC-784I-SFP

Managed Hardened Modular Media Converter, 1000Mbps, 2xSFP (also known as iMcV 858-18121).

$506.10
Part Number
  • IMC-784I-SFP
Highlights...

Features

  • Fiber Transmission Speed: 1000 Mbps
  • Fiber Port Connector Type: SFP cage
  • Dimensions (W x H x D): 2.0 x 10.74 x 7.05 cm (0.78 x 4.19 x 2.75 in.)
  • Weight: 0.11 kg (0.24 lbs)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL
  • EMC: CE, FCC Class A
  • A single-wide module that allows maximum use of slots in multi-port chassis
  • Supports OAM and VLAN
  • Supports Link Fault Pass Through (LFPT)
  • The SFP port supports both copper and fiber SFPs
  • SNMP manageable
  • Provides a RS-232 CLI (command line interface) console port
  • The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance.
The IMC-784I-SFP comes with two SFP ports for the providers' network connection and two fixed 10/100/1000Base-T copper ports with four distinct DIP switch selectable configurations 1 plus 1 uplink protection revertive mode, 1 plus 1 uplink protection non-revertive mode, a 4-port Gigabit switch and a dual copper to fiber SFP media/mode converter. The software management software for IMC-780 series, iView2, allows users to perform remote configuration and alerts administrators to any potential problems on the ling-haul fiber run, providing vital information on link condition and reporting data traffic statistics.
