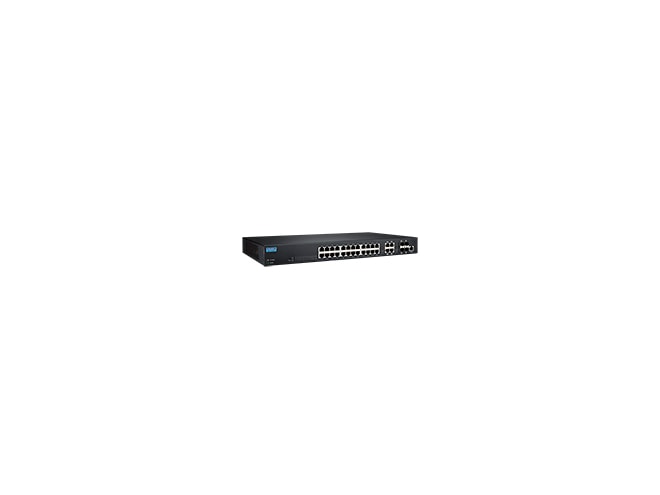

Advantech EKI-7428G-4CA-AE

28 port 19" Full Gigabit Managed Ethernet Switch with 4G combo port.

$1,323.00
Part Number
  • EKI-7428G-4CA-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az
  • EMC: FCC Part 15,Subpart B:ANSI C63.4-2014 CE EN55032: 2010+AC:2011 EN55024: 2010+A1:2015
  • Safety: LVD IEC/EN 62368-1
  • Temperature (Max. Operating): 60°C (140°F)
  • Temperature (Min. Operating): 0°C (32°F)
  • Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
  • Operating Humidity: 5~90%
  • Fiber Transmission Speed: 10/100/1000 Mbps
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • RJ-45 Transmission Distance: 100 m
  • Ethernet Standard: IEEE 802.1p , 802.1s , 802.1w , 802.1x , 802.3ad
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (Wall): Yes
  • Mounting (Rack Mount): Yes
  • Weight: 3 kg
  • Dimensions (W x H x D): 441 x 44 x 196 mm
  • Power Input (AC): 100 ~ 240 VAC
  • Power Operating Current: 0.19A @ 240VAC
  • Power Connector Type: 3-pin Power Connector
  • Power Consumption: 18W
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 56Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 2 years
  • 24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
  • SFP socket for easy and flexible fiber expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • Support Security Pack against internal and external Cyber threats
The EKI-7428G-4CA is a layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation with 1U 19" design and suitable for edge to core networks. It integrates Layer 2 switching software, which is optimized in terms of scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. It is also embedded with Advantech exclusive features like IXM and Security Pack, which benefit users by giving them fast deployment and network and network nods protection, and can dramatically save engineer time and costs.
