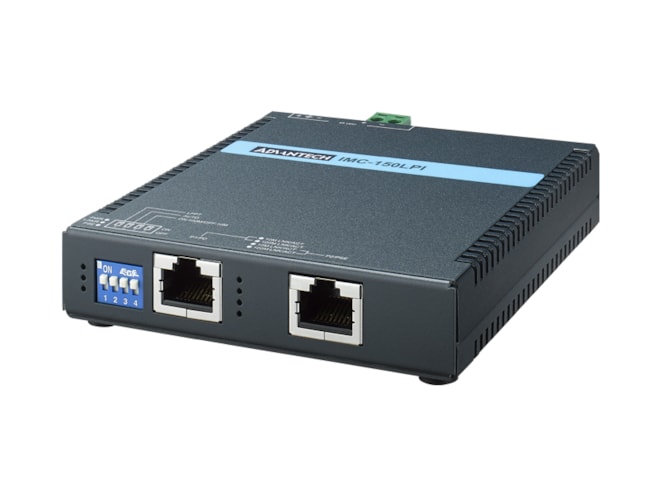

Advantech IMC-150LPI

Hardened PoE Long Reach Ethernet Extender, UTP.

Call for pricing
Part Number
  • IMC-150LPI
Highlights...

Features

  • Fiber Transmission Speed: 10/100 Mbps
  • PoE-PSE: Yes
  • PoE-PD: Yes
  • Power Input (DC): 48 VDC
  • Dimensions (W x H x D): 92.58 x 21.08 x 98.04 mm ( 3.65 x 0.83 x 3.86 in.)
  • Weight: 0.4 kg
  • Operating Humidity: 10~95% (non-condensing)
  • EMC: CE, FCC Class A, CSA
  • Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable
  • Dual design with PoE+ PD/PSE
  • Railway Trackside EN 50121-4
  • Features Link Fault Pass Through (LFPT)
  • Switch-selectable for configuring LAN rate and connection type
Injecting data and power together, the IMC-150L series offers brand new leading products which break the 100-meter limitation for greater Ethernet transmission distances.
