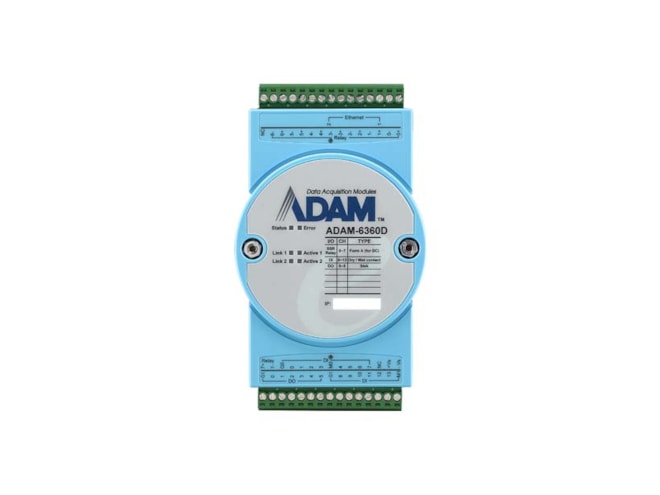

Advantech ADAM-6360D-A1

8Relay(PhotoMOS SPST)/14DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O.

$432.00
Part Number
  • ADAM-6360D-A1
Highlights...

Features

  • Channels: 8 PhotoMOS SPST Form A
  • Contact Rating (Resistive and Inductive Load): 1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC
  • Input Voltage: Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level 0: 0~3 VDC, Logic level 1: 10~30 VDC
  • Isolation Protection: 2,500 VDC
  • Isolation Protection: 2,500 VDC
  • Output Type: Sink
  • Sink Current: 100 mA max./channel
  • Max. Input Frequency: 3 kHz
  • OPC UA empowers Modbus I/O users to access the industrial IoT world
  • OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
  • Hardware and software double security levels to prevent being hacked
  • Cost-effective: high I/O density and daisy-chaining solution saves cost
Advantech ADAM-6300 series is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.
