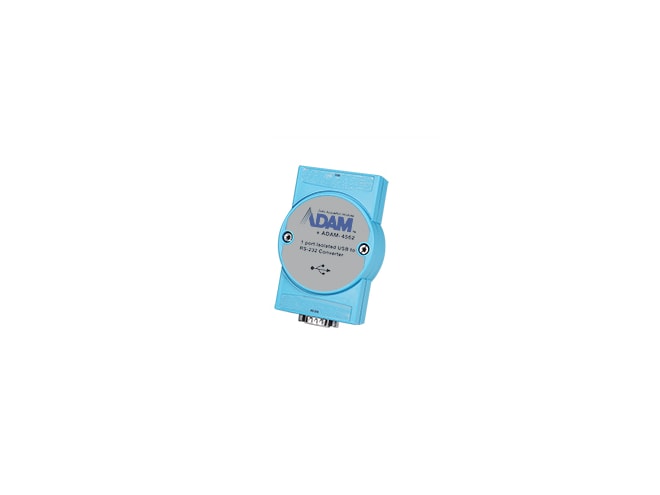

Advantech ADAM-4562-AE

Isolated USB to RS-232 Converter.

$127.10
Part Number
  • ADAM-4562-AE
Highlights...

Features

  • Isolation Voltage: 2,500 VDC
  • Connectors: 1 x USB-type A, 1 x DB9 female connector
  • Input Voltage: Powered by USB port
  • Baud Rate (bps): 75 bps~115.2 kbps
  • Converter/Repeater: USB to RS-232
  • Power from the USB port
  • Hot swap function supported
  • Isolation protection 3000 VDC provided
  • Automatic RS-485 data flow control
  • Transmission speed up to 115.2 kbps
ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.Compliant with USB V1.1, ADAM-4561/4562 features several powerful functions such as high-speed 115.2 kbps transmission, support for various operating systems, independentRS-232/422/485 ports and more. By simply plugging in a USB hub, ADAM-4561/4562 eliminates the configuration issues associated with high-priced, older card solutions. Youonly have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.
