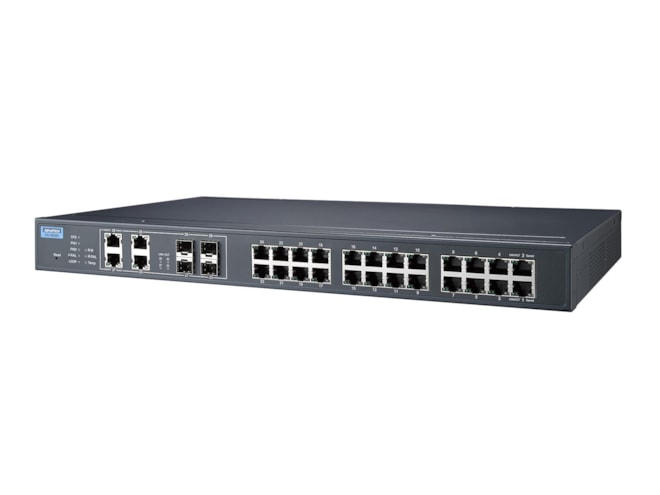

Advantech EKI-9628G-4CI-AE

24GE+4G Combo L3 Managed Ethernet Switch, -40~75℃.

$2,067.83
Part Number
  • EKI-9628G-4CI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1X, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1ab
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 61010
  • Temperature (Max. Operating): 75°C (167°F)
  • Relative Humidity: 10~95%
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: 24 x RJ-45 + 4 x RJ45/SFP Combo ports
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (Rack Mount): Yes
  • Weight: 3.8 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
  • Power Operating Current: 8.3A @ 24V
  • Power Connector Type: 4-pin removable screw terminal (power & relay)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Consumption: 20W
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 56Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • Rackmount 24G+4G Combo port L3 Managed Switch
  • L3 function :Static route , NAT
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • Security:802.1x ,HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP(802.1w/1D), MSTP
The EKI-9628G is an industrial-class L3 managed switch supports static route and NAT.Embedded with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rackmount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. it supports high reliability with -40 ~ 70°C operating temperatures. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.
