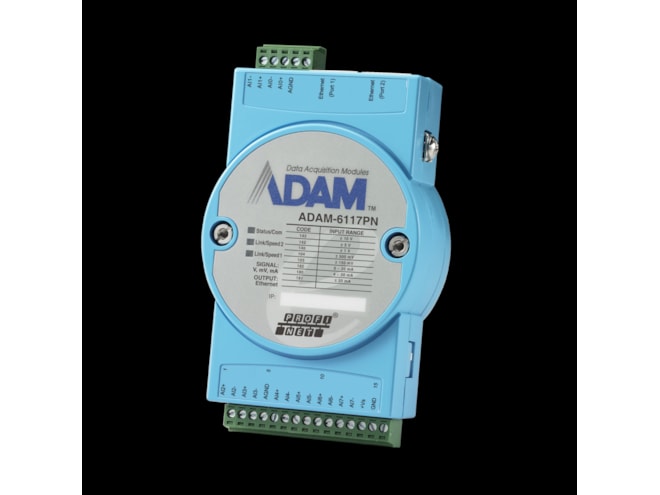

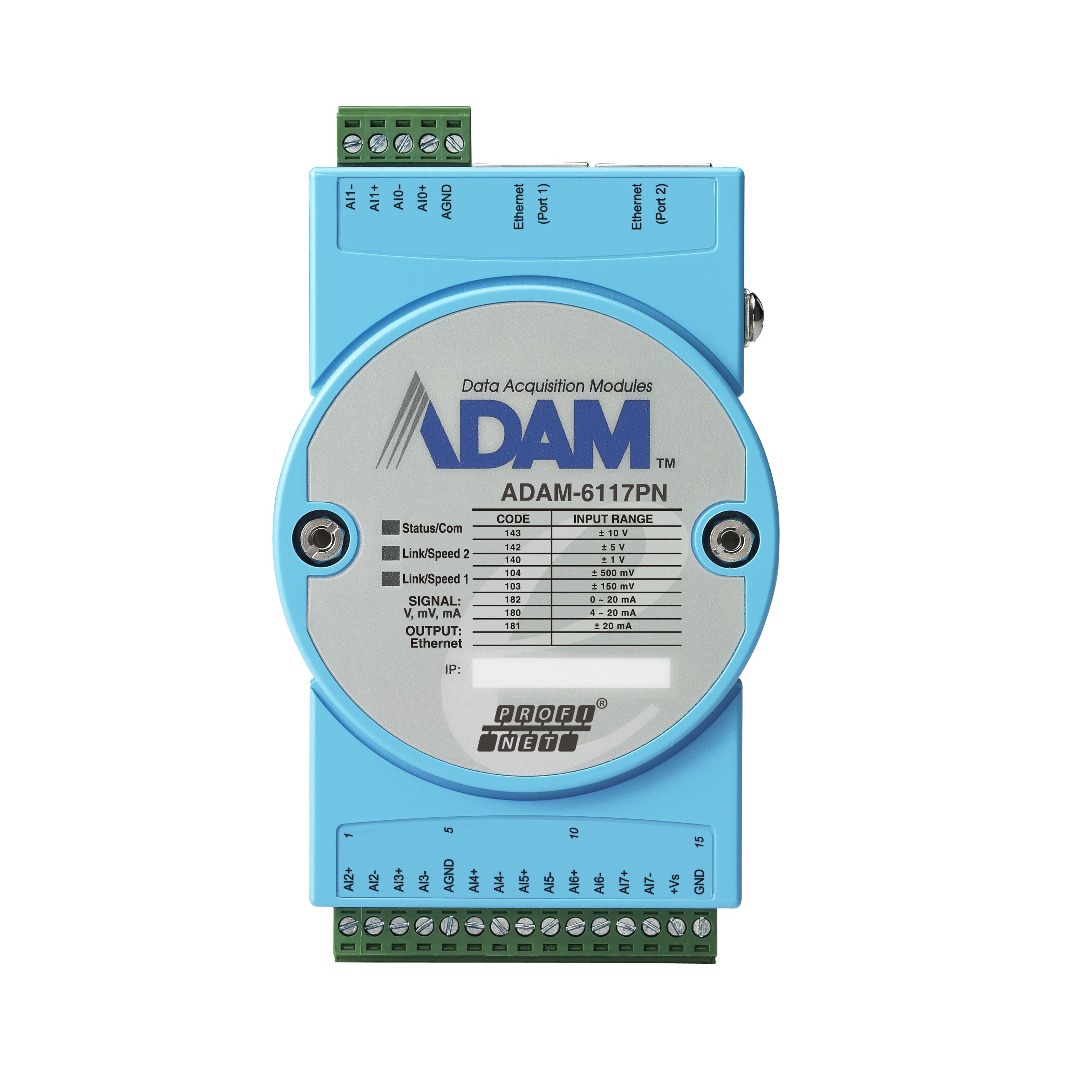

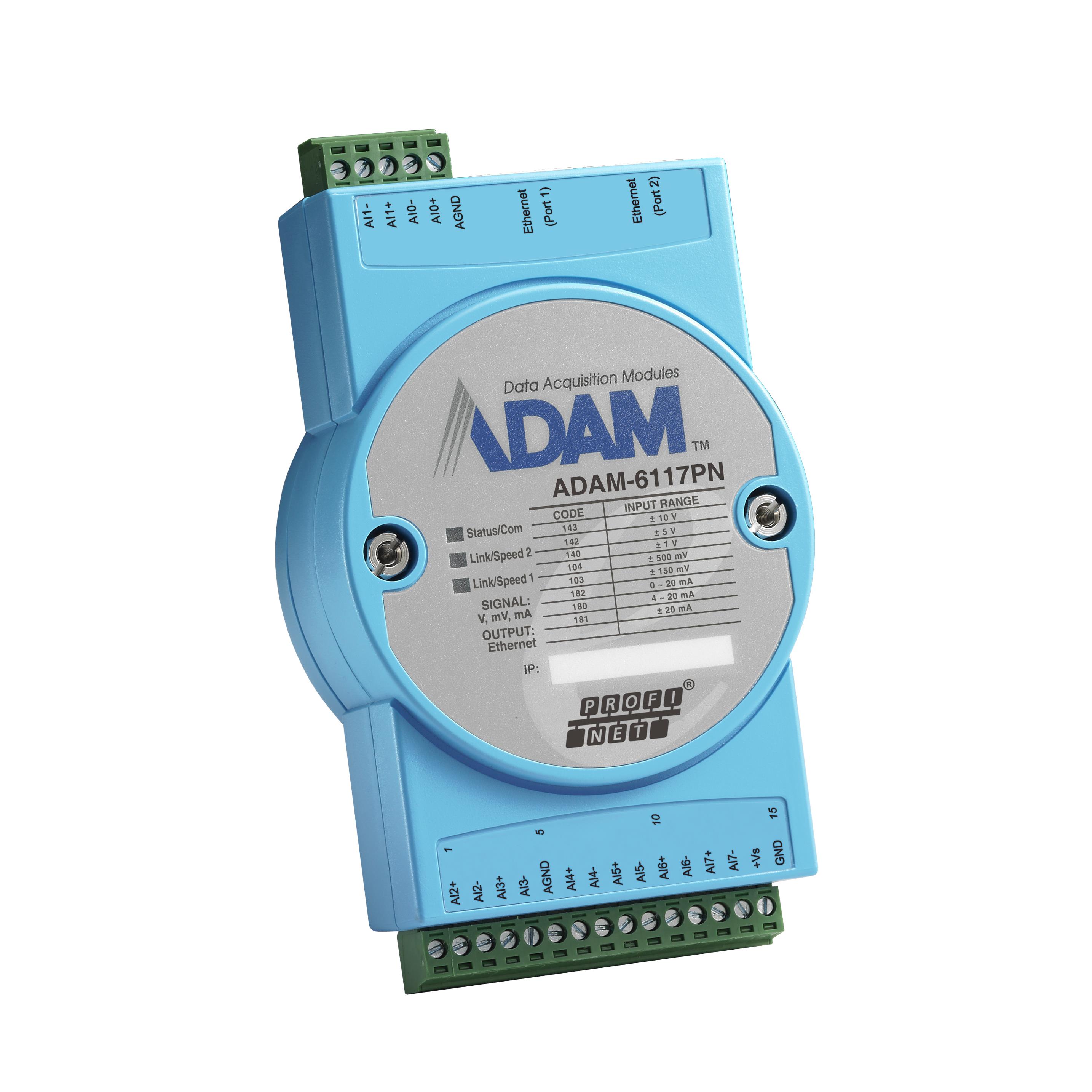

Advantech ADAM-6117PN-AE

Features

• Input Range: ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA
• lnput Type: V, mV, mA
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 10 S/s (sum)
• Interface: Ethernet
• Isolation Voltage: 2,500 VDC
• Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
• Protocol: PROFINET
• Input Voltage: 10~30 VDC
• 8ch analog input(voltage or current)
• Protocol : PROFINET
• 2 x RJ-45 LAN for Daisy-chain connectivity
• 2500VDC isolation protection
