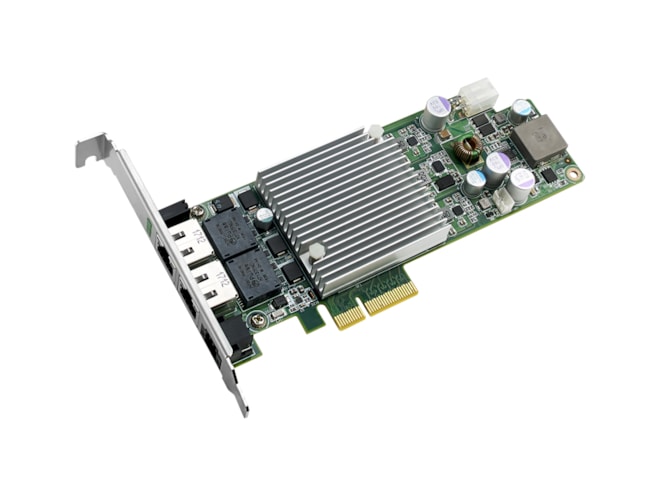

Advantech PCIE-1182-AE

2-Port PCIE 10 GigE Vision Interface Card.

$482.00
Part Number
  • PCIE-1182-AE
Highlights...

Features

  • Operating Temperature: 0~60 °C (32~140 °F)
  • Speed: 10,000 Mbps
  • Compatibility: IEEE802.3af
  • Jumbo Frame: 9 KB
  • Port Connector: 8-pin RJ45
  • Input Voltage: 12 VDC
  • Output PoE Power: 48 VDC PoE Power output, 15.4 W per port, total Max. 60 W
  • Intel server-grade X550-AT2 10GbE MAC+PHY Ethernet Controller
  • PCI Express x4 compliant, low profile
  • PoE+ compliant, dual channel 12VDC output
  • Programmable PoE+ power on/off control
  • Powered Device (PD) auto detection and classification
PCIe-1181/1182 series is PCI Express® 10 GigE Vision frame grabber which supports 1 or 2 independent 10,000/5,000/1,000/100 BaseT(X), 802.3at (PoE+)compliant Ethernet ports. With 12 VDC power output, the PCIE-1181/PCIE-1182 can provides up to 24 watts for each of 2 12VDC output port.
