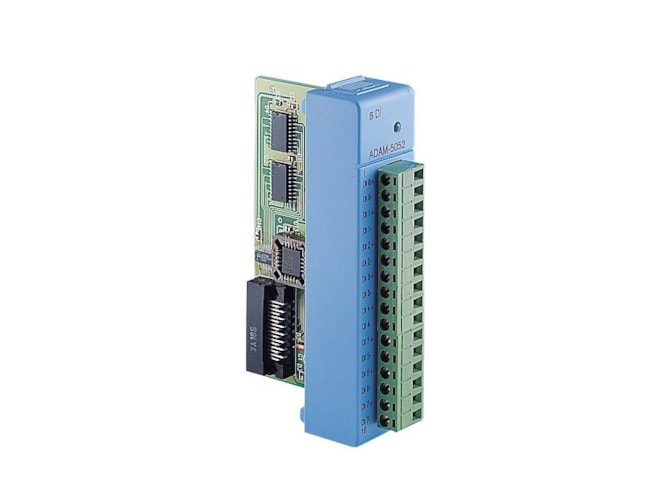

Advantech ADAM-5052-AE

8-ch Isolated Digital Input Module.

$95.00
Part Number
  • ADAM-5052-AE
Highlights...

Features

  • Isolation Protection: 5,000 VDC
  • Connectors: 1 x 16-pin plug-in screw terminal
  • Humidity (Operating): 5~95% RH (non-condensing)
  • Humidity (Storage): 5~95% RH (non-condensing)
  • Certification: CE, FCC class A
  • Digital input level: Logic level 0: +1 V max.
  • Isolation voltage: 5000 VRMS
  • Power consumption: 0.27 W (max)
  • Channels: 8
The ADAM-5052 provides eight fully independent isolated channels. All channel designed with 5000 VRMS isolation to prevent ground loop effects and the damage from power surges on the input lines.
