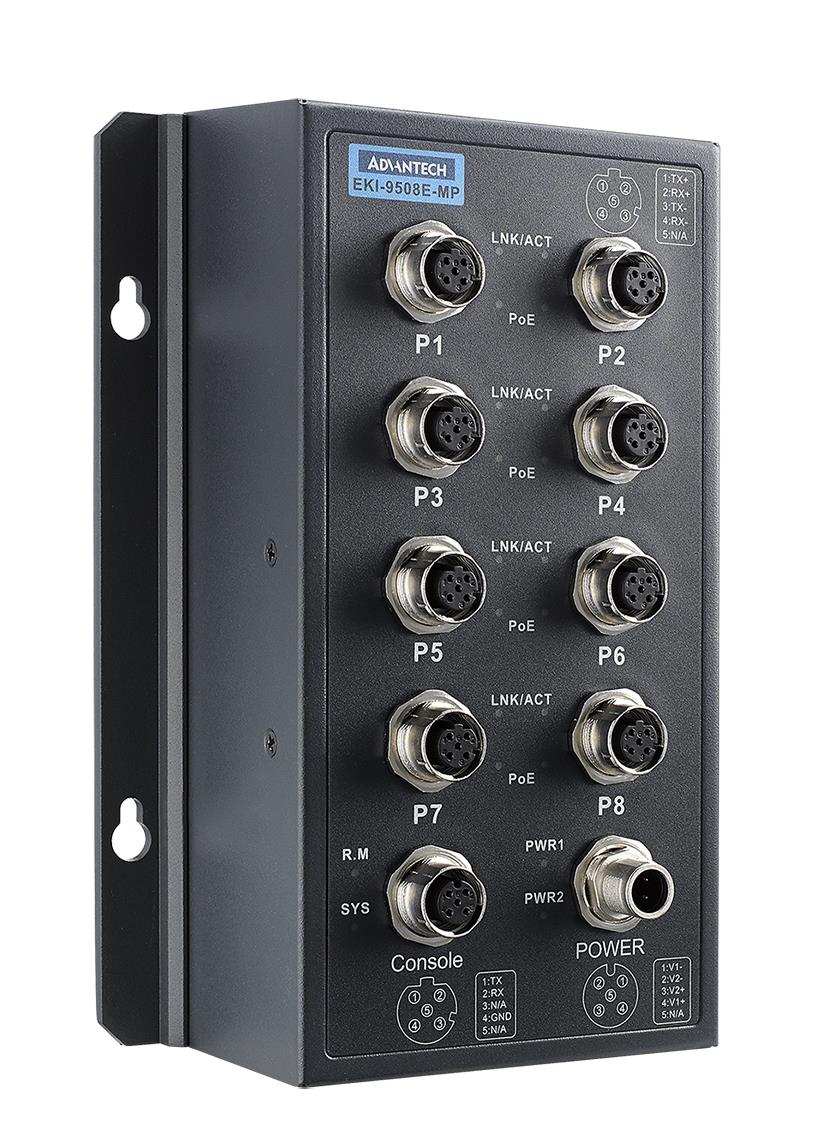

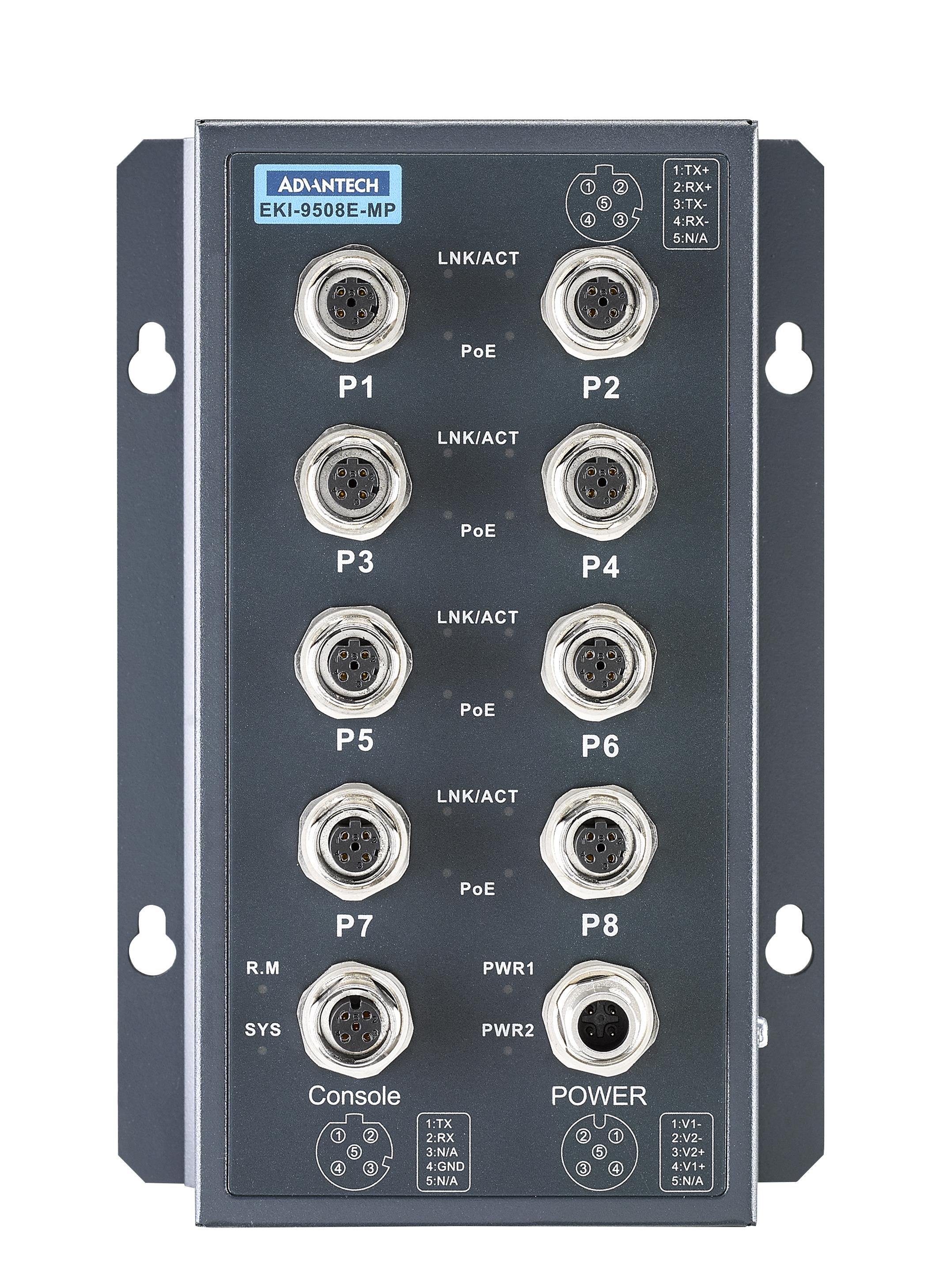

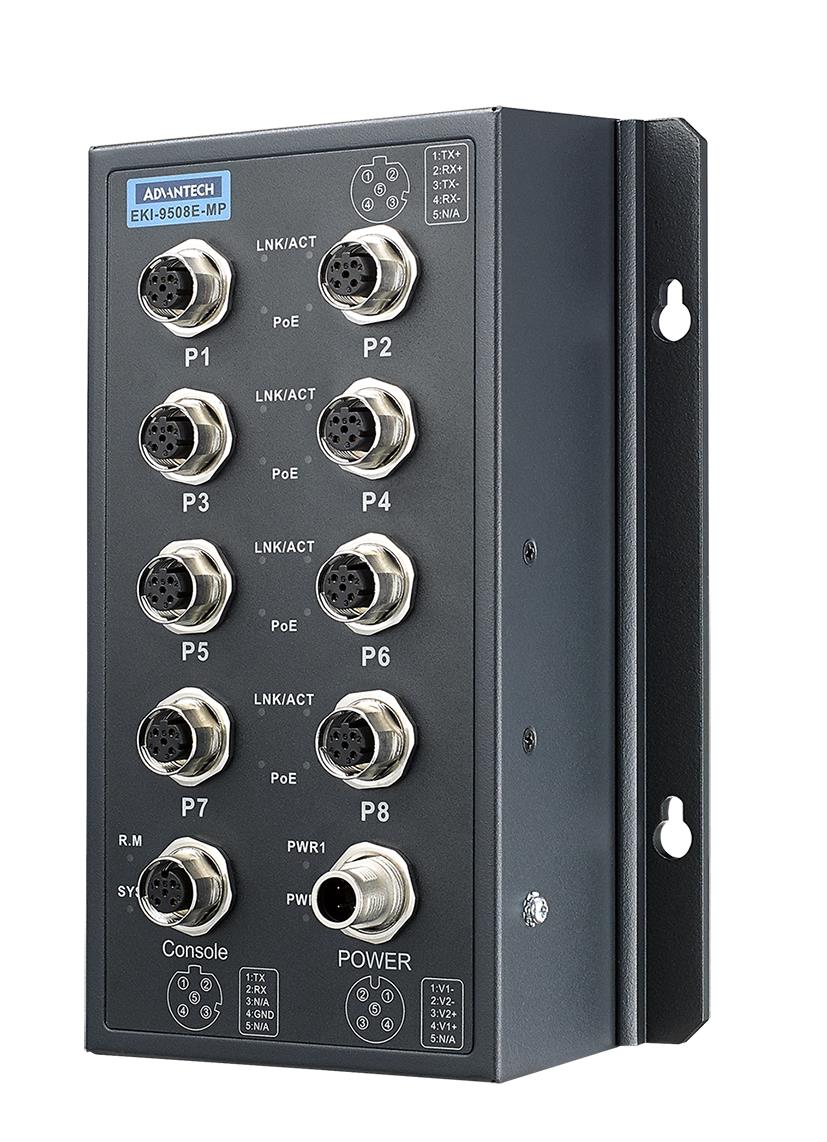

Advantech EKI-9508E-MPH-AE

EN 50155 Managed PoE Ethernet Switch with 8FE, 72-110 VDC.

$1,654.70
Part Number
  • EKI-9508E-MPH-AE
Highlights...

Features

  • EMC: CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
  • EMI: CISPR 32, FCC Part 15 Subpart B Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
  • Vertical Market: EN50155, EN50121-3-2, EN61000-6-2
  • Freefall: IEC 60068-2-31
  • Shock: IEC 61373
  • Vibration: IEC 61373
  • Operating Humidity: 5~95%
  • Relative Humidity: 5~95%
  • Ethernet Standard: IEEE 802.3 , 802.3u , 802.3ab , 802.3x
  • RJ-45 Port Connector Type: M12 (4pin D-Coded) for 10/100Mbps port
  • RJ-45 Transmission Speed: 10/100 Mbps
  • RJ-45 Transmission Distance: NA
  • Fiber Port Connector Type: NA
  • Fiber Port Interface: NA
  • Dimensions (W x H x D): 122.5 x 179.4 x 71.8 mm
  • Enclosure (Metal): Metal shell
  • IP Rating: IP40
  • Mounting (DIN-rail): By additional bracket
  • Mounting (Wall): Yes
  • Weight: 1.3 kg
  • Method: Telcordia, GM
  • PoE Budget: 90W
  • PoE Port Number: 8 (M12 D-Coded)
  • Power Connector Type: M12 (4 pin A-coded)
  • Power Consumption: 5W
  • Power Input (DC): 72 / 96 / 110 VDC
  • Power Operating Current: 0.09A @ 110VDC (system)
  • Power Operating Voltage: 50.4 ~ 137.5 VDC
  • Reverse Polarity: Present
  • Redundant Dual Inputs: Yes
  • Overload Current: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 1.5M bit
  • Switch Fabric Speed: 1.6Gbps
  • Warranty Period: 5 years
  • 8 x port M12 D-coded 10/100Mbps PoE ports
  • Complies with EN50155 & EN50121-3-2
  • Operating Temperature: -40 ~ 70°C
  • Operating Voltage: 50.4~137.5 VDC
  • X-Ring Pro supports rapid and predictable convergence
  • 8-port PoE support IEEE802.3 at/af
  • Provides M12 connector with rugged housing
EKI-9508E M12 Managed Ethernet Switch is designed for railway applications, including rolling stock and wayside installations. EKI-9508E switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. It provides 8 Fast Ethernet M12 D-code ports with 8 IEEE 802.3at/af PoE ports. The PoE /PoE switch is classified as power source equipment (PSE) and provides up to 100 watts PoE power budget, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.
