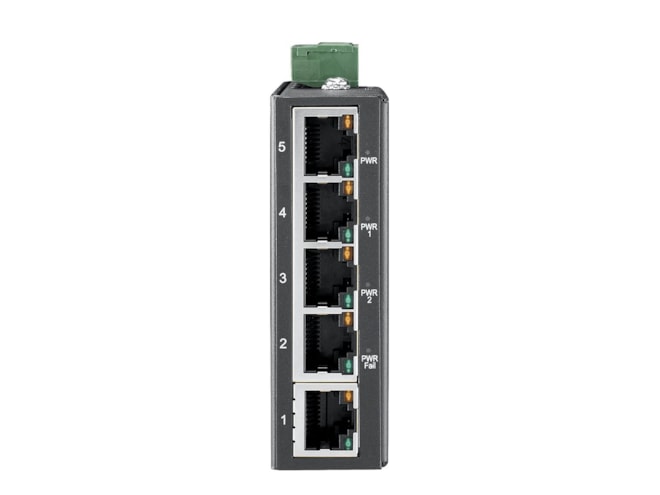

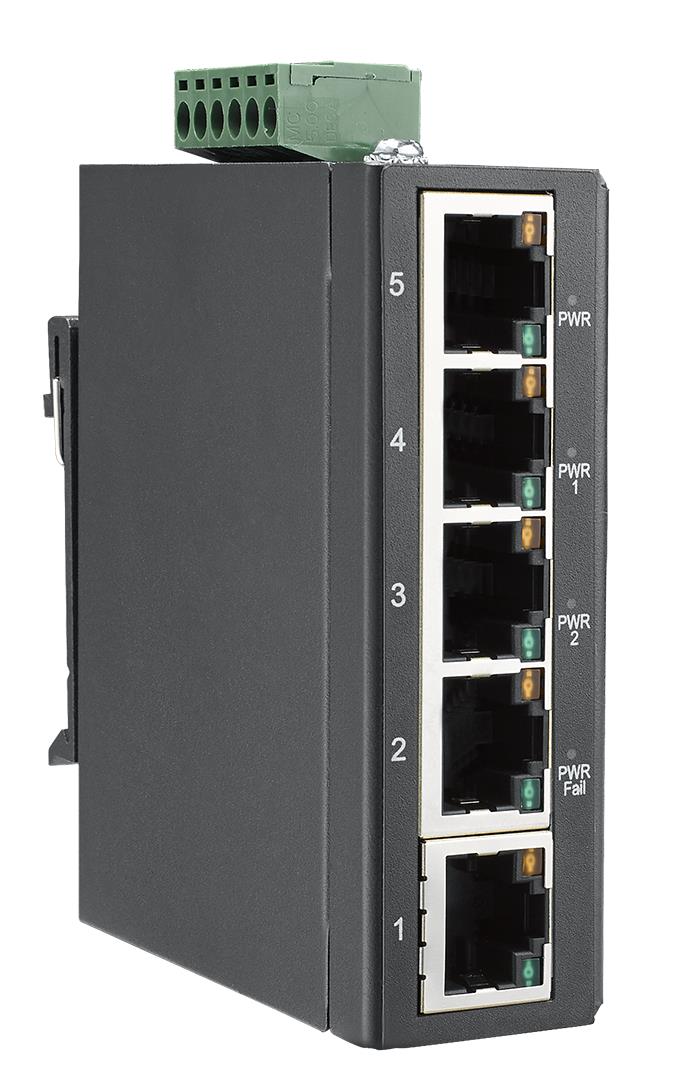

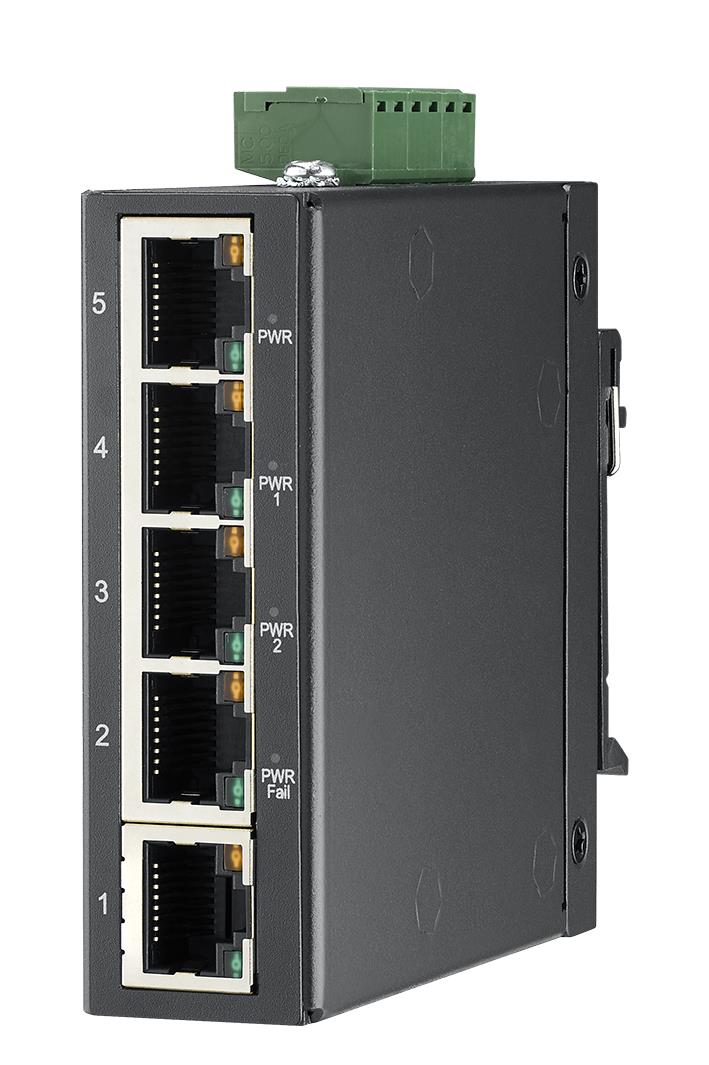

Advantech EKI-2525LI-AE

Features

• EMI: EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
• Temperature (Max. Operating): 75°C (167°F)
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100 Mbps
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Dimensions (W x H x D): 25 x 80 x 84 mm (0.98 x 3.15 x 3.31 in.)
• IP Rating: IP40
• Weight: 0.50 kg (1.1 lbs)
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: 3.1W
• Power Input (DC): 12 ~ 48 VDC
• Power Operating Current: 0.23A @ 24V
• Redundant Dual Inputs: Yes
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 2K
• Packet Buffer Size: 448Kbit (0.4375Mbits)
• Switch Fabric Speed: 1.0Gbps
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• Supports wide operating temperatures from -40 to 75 °C
• Supports redundant 12 ~ 48 VDC power terminal input plus one DC power jack and P-Fail relay
• Provides compact size with DIN-rail/Wall mount, and IP40 metal mechanism
• Supports 10/100 Mbps Auto-Negotiation
• Provides 5 Fast Ethernet ports with Auto MDI/MDI-X
