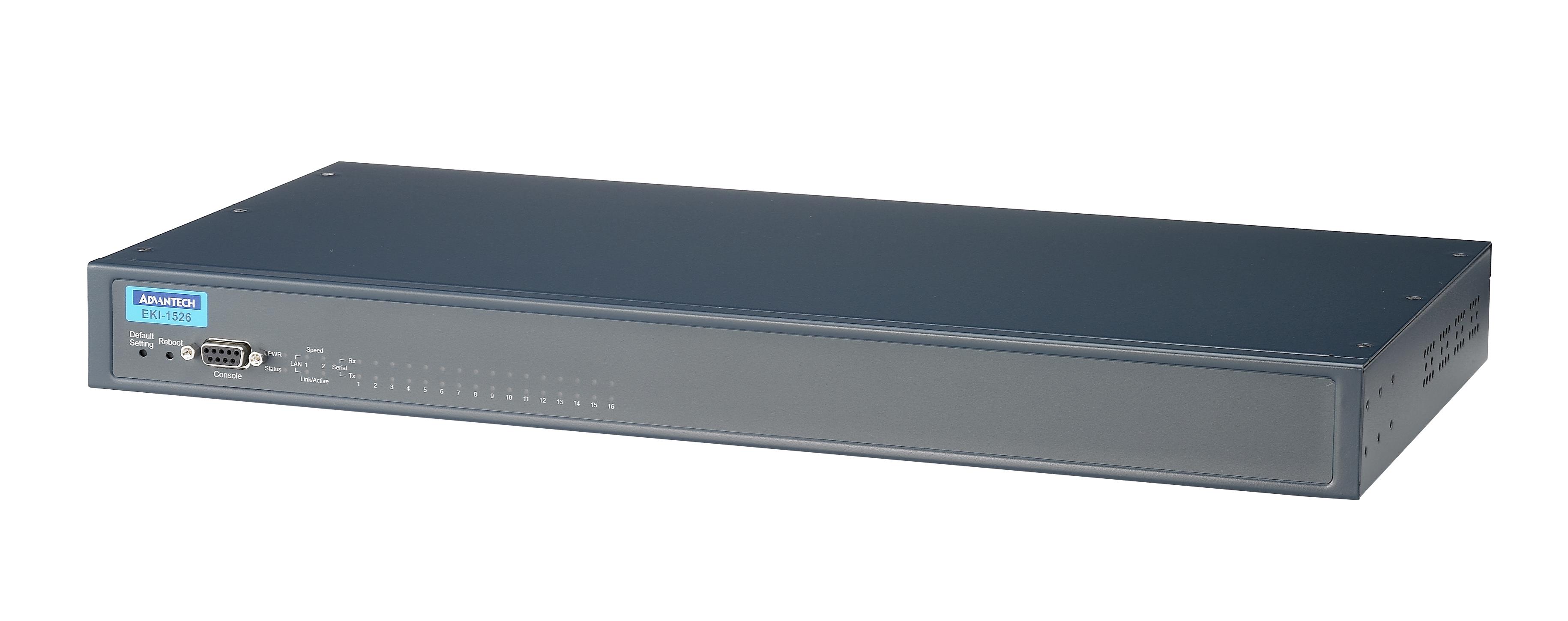

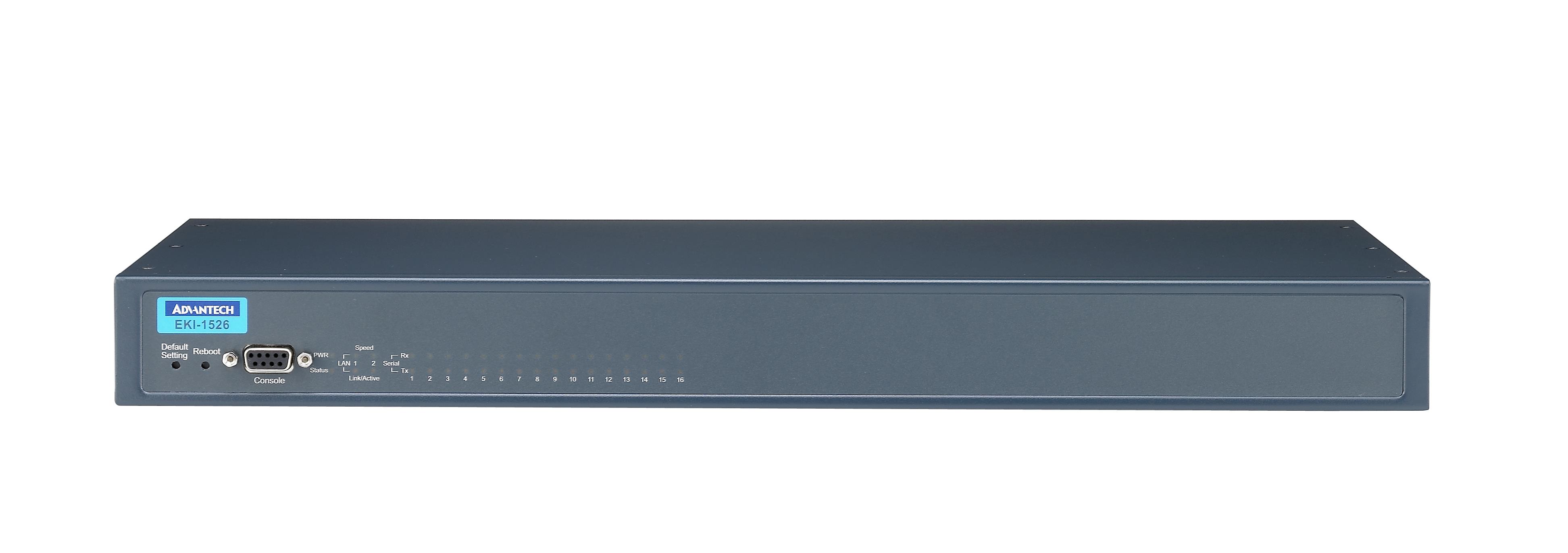

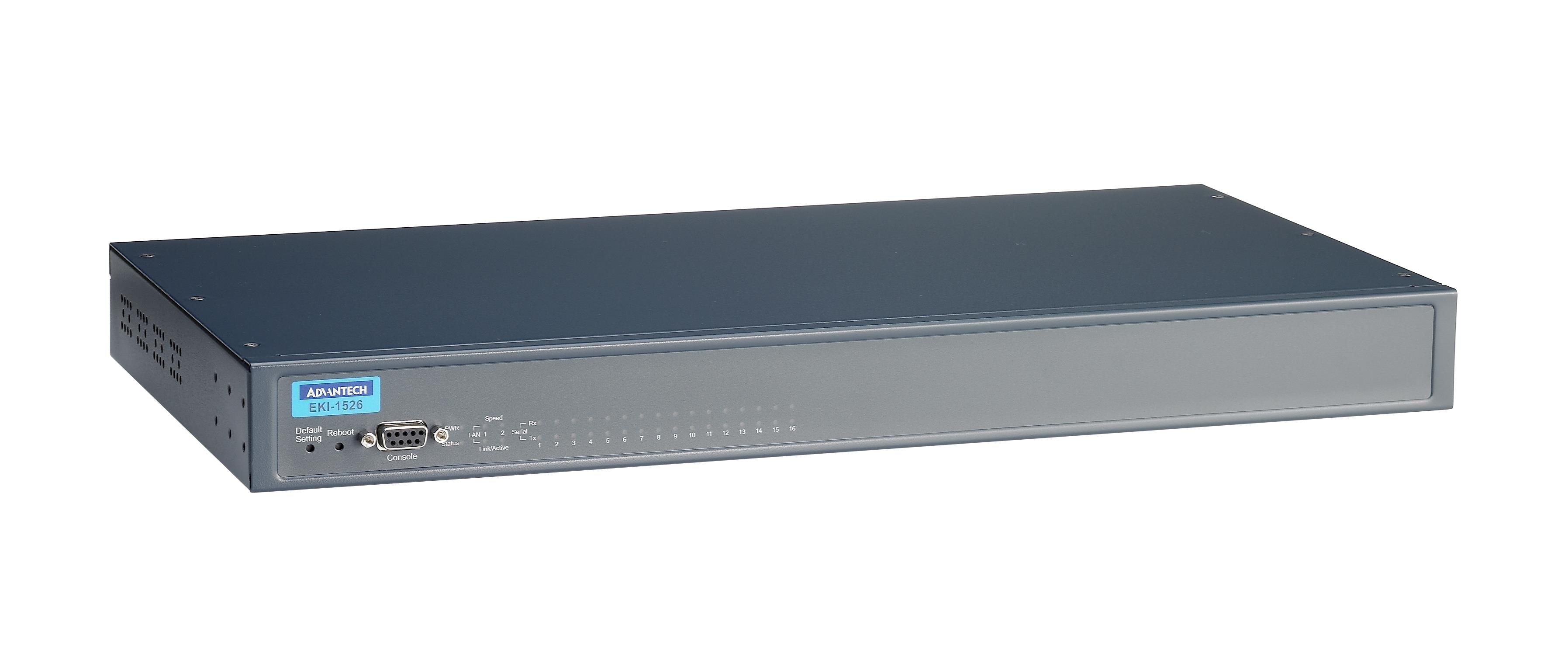

Advantech EKI-1526-CE

16-Port Serial Device Server, AC Input, DB9, Rackmount.

$1,082.00
Part Number
  • EKI-1526-CE
Highlights...

Features

  • EMC: CE, FCC
  • EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
  • EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
  • Freefall: IEC 60068-2-32
  • Safety: UL 60950-1, UL 62368
  • Vibration: IEC 60068-2-6
  • RJ-45 Port Connector Type: RJ-45
  • Serial Port Connector Type: DB9
  • Temperature (Max. Operating): 60°C (140°F)
  • Ethernet Standard: IEEE 802.3, 802.3u, 802.3ab
  • IP Rating: IP30
  • Weight: 3.1 kg
  • Power Consumption: 5.6W
  • Power Input (AC): 100 ~ 240 VAC
  • Power Operating Current: 0.3A @ 110 VAC ;
  • 0.2A @ 220 VAC
  • Reverse Polarity: Present
  • RS-232: Yes
  • RS-422: Yes
  • RS-485: Yes
  • Baud Rate: 50 ~ 921.6 Kbps
  • Serial Transmission Speed: 50 ~ 921.6 Kbps
  • Configuration: Windows utility, Telnet console, Web Browser
  • Driver: 32-bit/64-bit windows XP/7/8/8.1/10, Windows Server 2003/2008/ 2008 R2/2012/2012 R2/2016 and Linux
  • Operation Mode: Virtual COM, TCP/UDP server TCP/UDP client
  • Warranty Period: 5 years
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size
  • Automatic RS-485 data flow control
  • "I" models support a wide operating temperature
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.
