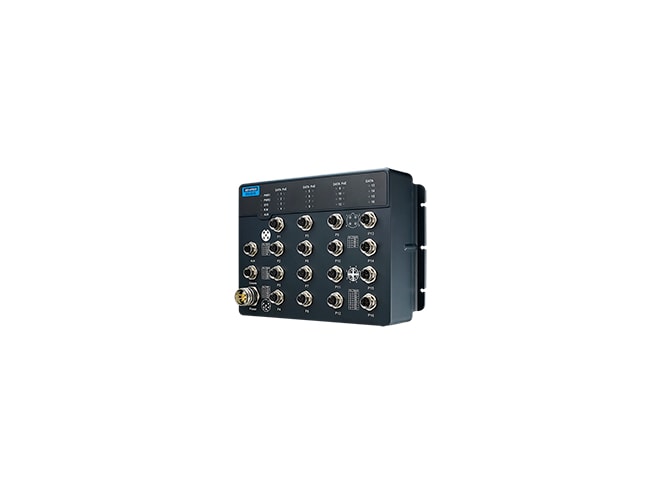

Advantech EKI-9516E-8GMPX-AE

Features

• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 17.6Gbps
• EMC: CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
• EMI: CISPR 32, FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
• Vertical Market: EN50155, EN50121-3-2, EN61000-6-2
• Freefall: IEC 60068-2-31
• Shock: IEC 61373
• Vibration: IEC 61373
• Relative Humidity: 5~95%
• Dimensions (W x H x D): 254 x 174 x 64.5 mm
• Enclosure (Metal): Aluminum die-casting
• IP Rating: IP67
• Mounting (Wall): Yes
• Weight: 3.7 kg
• PoE Budget: Up to 150W
• Power Connector Type: M23
• Power Consumption: 17W (system)
• Power Input (DC): 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC
• Power Operating Current: 0.15A @ 110VDC (system)
• Power Operating Voltage: 16.8 ~ 137.5 VDC
• Reverse Polarity: Present
• Redundant Dual Inputs: Yes
• Overload Current: Present
• Warranty Period: 5 years
• 8 x M12 D-Coded 10/100 Mbps PoE ports + 4 x M12 X-Coded 10/100/1000 Mbps PoE Ports + 4 x M12 X-Coded 10/100/1000 Mbps ports
• Complies with EN50155 & EN50121-3-2
• Operating temperature: -40 ~ 75°C
• Operating power input range: 16.8~137.5VDC
• Supports X-Ring Pro for rapid and predictable convergence
• Supports IXM for fast and easy maintenance
• Supports N-Key for quick configuration and backup
• M12 connector with IP67 rugged housing
• PoE total power budget up to 150W
