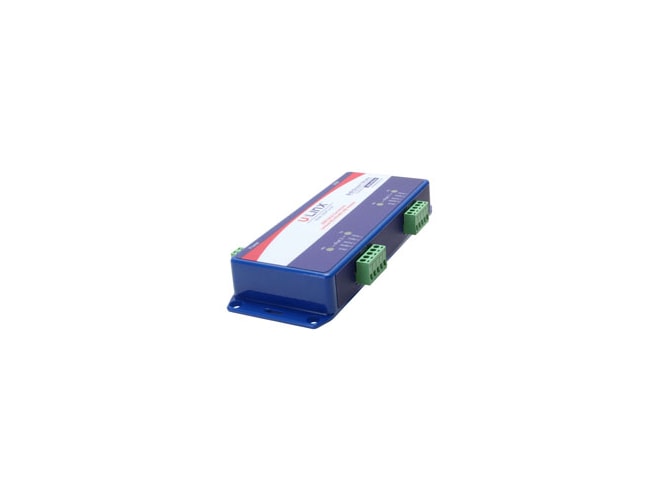

Advantech BB-USOPTL4-2P

Serial Converter, USB 2.0 to 2 x RS-422/485 TB, Isolated.

$263.60
Part Number
  • BB-USOPTL4-2P
Highlights...

Features

  • Technology: USB
  • Mounting: Panel
  • Power: Bus Powered
  • Temperature: 0 to 70C
  • Isolation: 2kV
  • Serial Type: RS-422, RS-485
  • Serial Connector: Terminal Block
  • USB to RS-422/485 Converter
  • 2 kV Isolation
  • 921.6 Kbps Serial Data Rate
  • Flat Panel Mounting
  • Terminal Block for 10-30 VDC Power Input
  • High Retention USB Connector, Plug in Serial Terminal Block
  • USB Cable Included
Two serial ports, 2-wire USB 2.0 to RS-485 or 4-wire RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal blocks on RS-422/485 side and a high retention USB connector that works with a standard USB cable. LEDs indicate transmit and receive. 10-30 VDC Power input.
