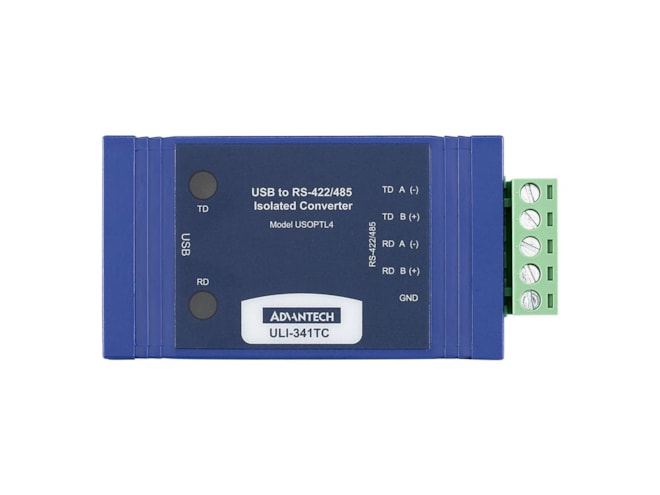

Advantech BB-USOPTL4

ULI-341TC - USB to RS-422/485 (Terminal Block) Isolated Converter.

$143.00
Part Number
  • BB-USOPTL4
Highlights...

Features

  • Technology: USB
  • Serial Standard: RS-422 / RS-485
  • Mounting: Inline
  • Power: Bus Powered
  • Standard: USB 2.0
  • Temperature: 0 to 70C
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Isolation: 2kV
  • Connector Type: Type B (Female) High Retention
  • Serial Type: RS-422, RS-485
  • Serial Port Connector Type: Terminal block
  • Serial Connector: Terminal Block
  • Maximum Serial Transmission Speed: 460.8 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2,000 VDC
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • USB to RS-422/485 Converter
  • 2 kV Isolation
  • USB Port Powered
  • High Retention USB Connector, Plug in Serial Terminal Block
  • 460.8 kbps Serial Data Rate
  • USB Cable Included
Supports 2-wire USB to RS-485 or 4-wire RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-422/485 side and a high retention USB connector that works with a standard USB cable (included). LEDs indicate Transmit and Receive. USB Port Powered.
