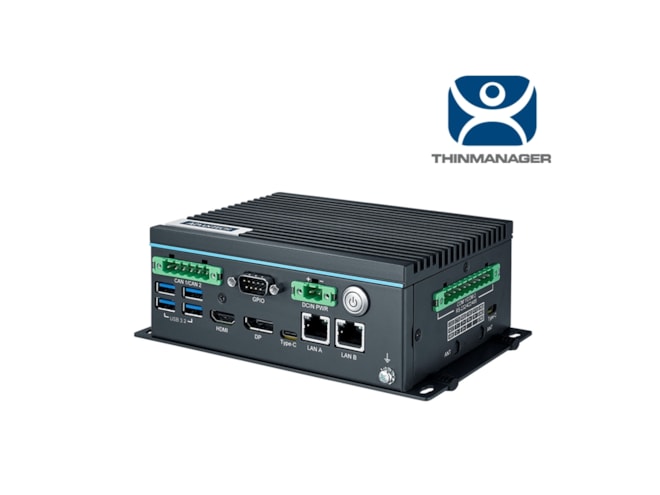

Advantech ESRP-CMS-U238V2

Features

• Ingress Protection: IP20
• Relative Humidity: 5~95% RH (non-condensing)
• Shock Protection: 50 G, half sine
• Vibration Protection: 2 Grms, random
• Certification: CB, UL, CE, FCC, CCC, BSMI
• CPU: Intel® Coreâ„¢ i3-1215UE 1.2GHz Alder Lake 6-Core
• Graphics Engine: Intel® Iris Xe® Graphics
• Hardware Security: TPM 2.0
• Memory: 2 x SO-DIMM Slot with DDR5 4800MHz
• OS Support: Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
• Power Input: 12~24 VDC
• Storage: 1 x SATA M.2 SSD slot (2280 M-Key)
• LED Indicators: PWR
• Watchdog Timer: 1~255 s
• Displays: 1 x HDMI, 1 x DP
• Expansion: 1 x M.2 B key, 1 x M.2 E key
• I/O: 2 x CAN Bus, 4 x USB 3.2, 2 x Type C, 1 x GPIO
• LAN Ports: 1 x 10/100/1000 Mbps, 1 x 10/100/2500 Mbps
• Power Connector: 1 x 10-Pin Terminal Block
• Serial Ports: 2 x RS 232/422/485
• Dimension (W x H x D): 150 x 107 x 60 mm
• Enclosure: Aluminum housing
• Weight (Net): 1.8 kg (3.96 lb)
• Mounting: Stand, Din-rail
• BIOS: ThinManager BIOS
• 12th Gen Intel® Coreâ„¢ i Processor
• Verified with ThinManager, ThinManager BIOS enabled
• Supports multiple displays (HDMI *1, DP*1, USB Type-C*2)
