Advantech BB-485SD9RJ

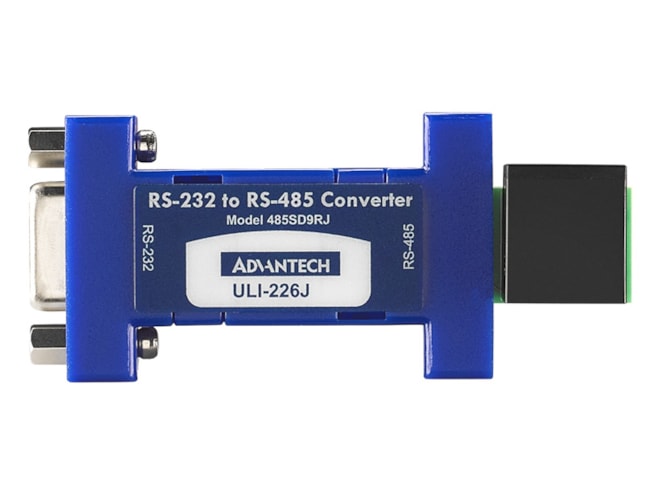

ULI-226J - RS-232 (DB9 Female) to RS-485 2-Wire (RJ 11) Converter.

$89.00
Part Number
  • BB-485SD9RJ
Highlights...

Features

  • Temperature: 0 to 70C
  • Serial Converter: RS-232 to RS-485
  • Serial Type: RS-485
  • Serial Port Connector Type: 1 x DB9 Female , 1 x RJ11
  • RS-232 Connector: DB9 Female
  • RS-422/485 Connector: RJ-11
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • Extend RS-232 data signals up to 1.2 km (4,000 ft)
  • Change RS-232 TD and RD to RS-485 signals
  • Automatic Send Data Control - no software drivers necessary
  • Baud rates up to 115.2 kbps
  • Powered from RS-232 handshake lines - no power supply required
The BB-485SD9RJ (ULI-226J) features Automatic Send Data Control, enabling the driver when data is present on the RS-232 side. The converter is powered from the RS-232 data and handshake lines, requiring no handshake line change to control the data lines.
