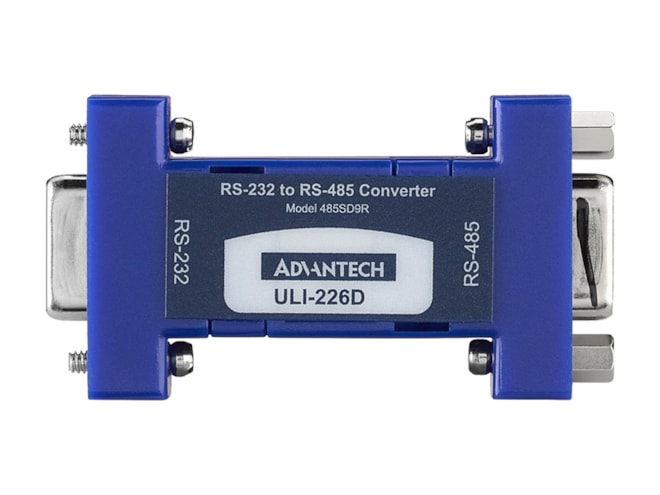

Advantech BB-485SD9R

ULI-226D - RS-232 to RS-485 (2-Wire) Converter, Port Powered, DB9 Female.

$89.00
Part Number
  • BB-485SD9R
Highlights...

Features

  • Temperature: 0 to 70C
  • Serial Converter: RS-232 to RS-485
  • Serial Type: RS-485
  • Serial Port Connector Type: 1 x DB9 Female, 1 x DB9 Female
  • RS-232 Connector: DB9 Female
  • RS-422/485 Connector: DB9 Female
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • Extend RS-232 data signals up to 1.2 km (4,000 ft)
  • Change RS-232 TD and RD to RS-485 signals
  • Automatic Send Data Control - no software drivers necessary
  • Baud rates up to 115.2 kbps
  • Powered from RS-232 handshake lines - no power supply required
Port-powered, 2-channel converter changes RS232 TD and RD to RS485 for longer distance and multidrop function. Automatic Send Data Control enables driver when data is present on RS232 side. Powered from RS232 data and handshake lines (high or low). Extend RS-232 data signals up to 1.2 km (4,000 ft).
