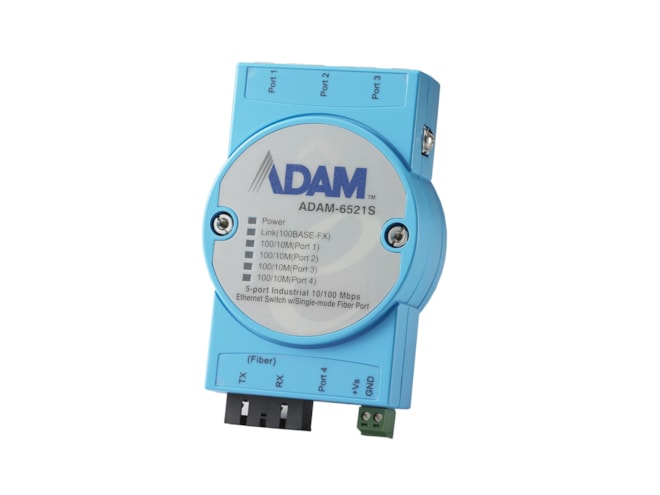

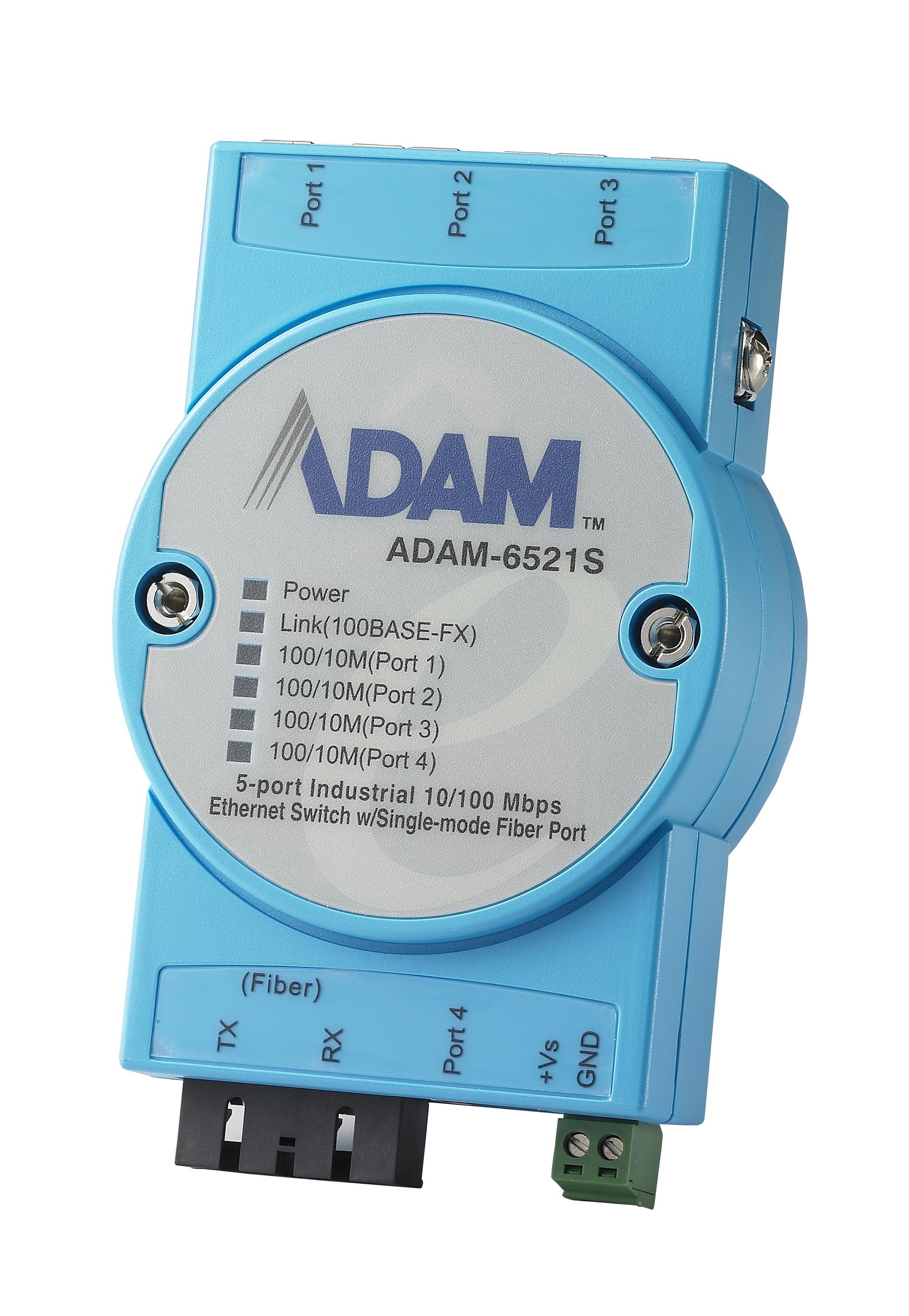

Advantech ADAM-6521S-AE

4+1 port SC Single-mode Unmanaged Ethernet Switch, Flexible mounting.

$370.65
Part Number
  • ADAM-6521S-AE
Highlights...

Features

  • EMI: CE, FCC
  • Safety: UL/cUL 60950-1
  • Temperature (Max. Operating): 70°C (158°F)
  • Fiber Port Interface: Single-Mode
  • Fiber Port Connector Type: SC Type
  • Fiber Transmission Distance: 15 km
  • Fiber Transmission Speed: 100 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Stack): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 70 x 112 x 27 mm
  • Enclosure (Plastic): Yes
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 2-pin removable screw terminal
  • Power Consumption: 4W
  • Power Input (DC): 1 x Unregulated 10 ~ 30 VDC
  • Warranty Period: 2 years
  • Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC connector
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Embedded with a switch controller, supports auto-negotiation
  • Embedded with the memory buffer, supports store-and-forward transmission
  • Support +10 ~ 30 VDC voltage and provides surge protection 3000 VDC for power line
  • Provides flexible mountings: DIN-rail, panel, piggyback
  • Supports operating temperature: -10 ~ 65°C
ADAM-652S1 is an industrial-grade Ethernet switch and single-mode fiber converter. It is designed to help extend an Ethernet network up to 15 km through areas with electrical noise interference. ADAM-6521 has one fiber optic and four RJ-45 ports. With single-mode fiber transmission, you can prevent noise interference and achieve transmission distances up to 15 km. Thus, ADAM-6521S is especially suitable for industrial environments with long-distance Ethernet networking needs, e.g. warehouses, transportation, environmental monitoring, and many more.
