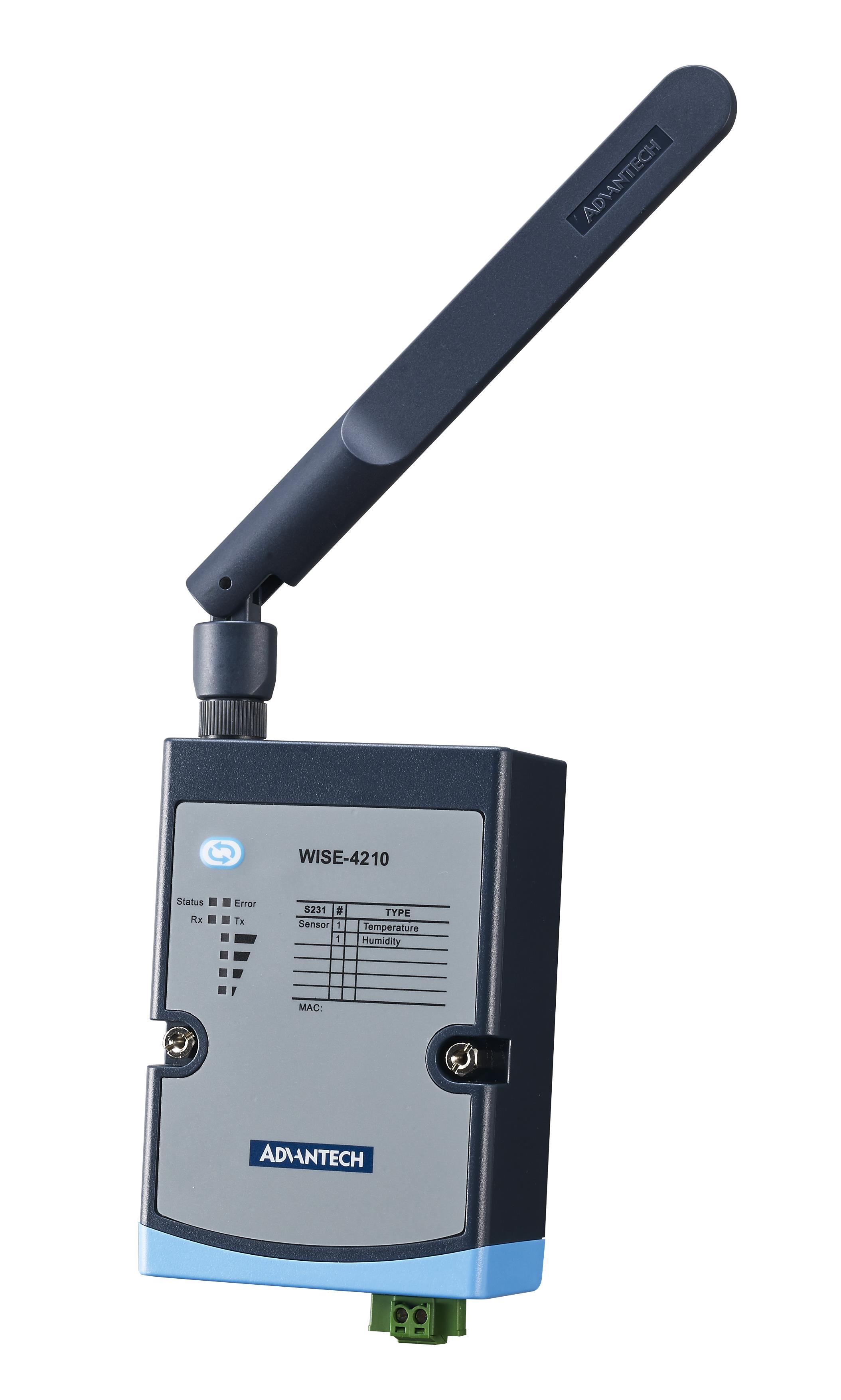

Advantech WISE-4210-S231NA

Proprietary LPWAN IoT Wireless Module w/ Temperature & Humidity Sensor.

$255.00
Part Number
  • WISE-4210-S231NA
Highlights...

Features

  • Data Transfer Rates: 625 bps, 50 kbps
  • Relative Humidity: 5~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Certification: CE, FCC Class A, IC, NCC, TELEC
  • LED Indicators: Status, Error, Tx, Rx, Battery/Signal Level
  • Power Consumption: 0.1 W @ 24 VDC
  • Power Input: 10~50 VDC
  • USB Ports: 1 x Micro-B USB
  • Dimension (W x H x D): 70 x 102 x 38 mm
  • Mounting: DIN-rail, Wall, Pole, Stack
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC
  • Resolution: 16-bit
  • Frequency Band: US 923 (MHz), EU 868 (MHz)
  • Standard (Technology): Proprietary LPWAN
  • Proprietary LPWAN (Sub-G) wireless technology
  • Supports MQTT & Modbus/TCP protocol
  • Application-ready sensor solution
  • Battery power for 5 years with 3 x 3.6V AA batteries
  • Up to 5 km communication range in open space
WISE-4210 wireless sensor node and AP series utilize proprietary LPWAN (Low-Power Wide-Area Network) wireless communication technology. Comparing with traditional 2.4G Wi-Fi, Sub-1GHz LPWAN can provide better connection and eliminate network interference. WISE-4210-S231 nodes has a kilometer-long communication distance and battery power. With a 3.6V AA Lithium battery, the sensor node can maintain communication at a distance of 5 km for up to 5 years, thereby eliminating the need to recharge or change batteries.
