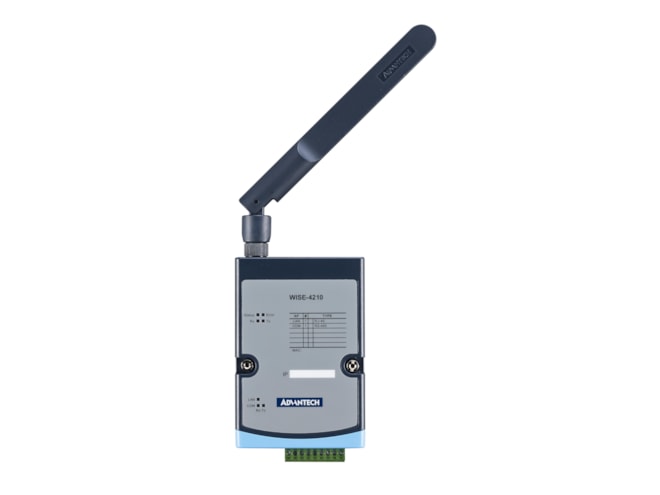

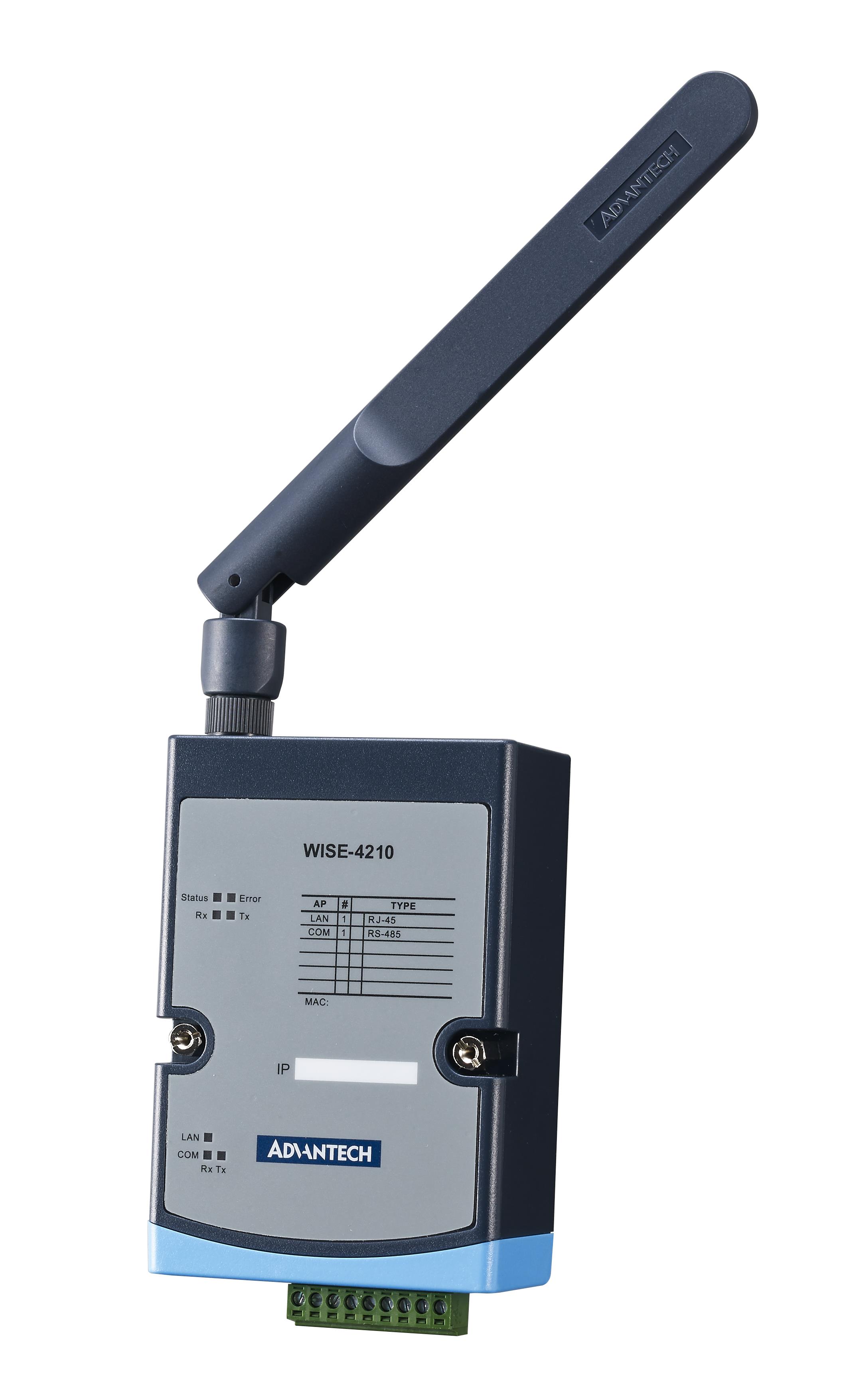

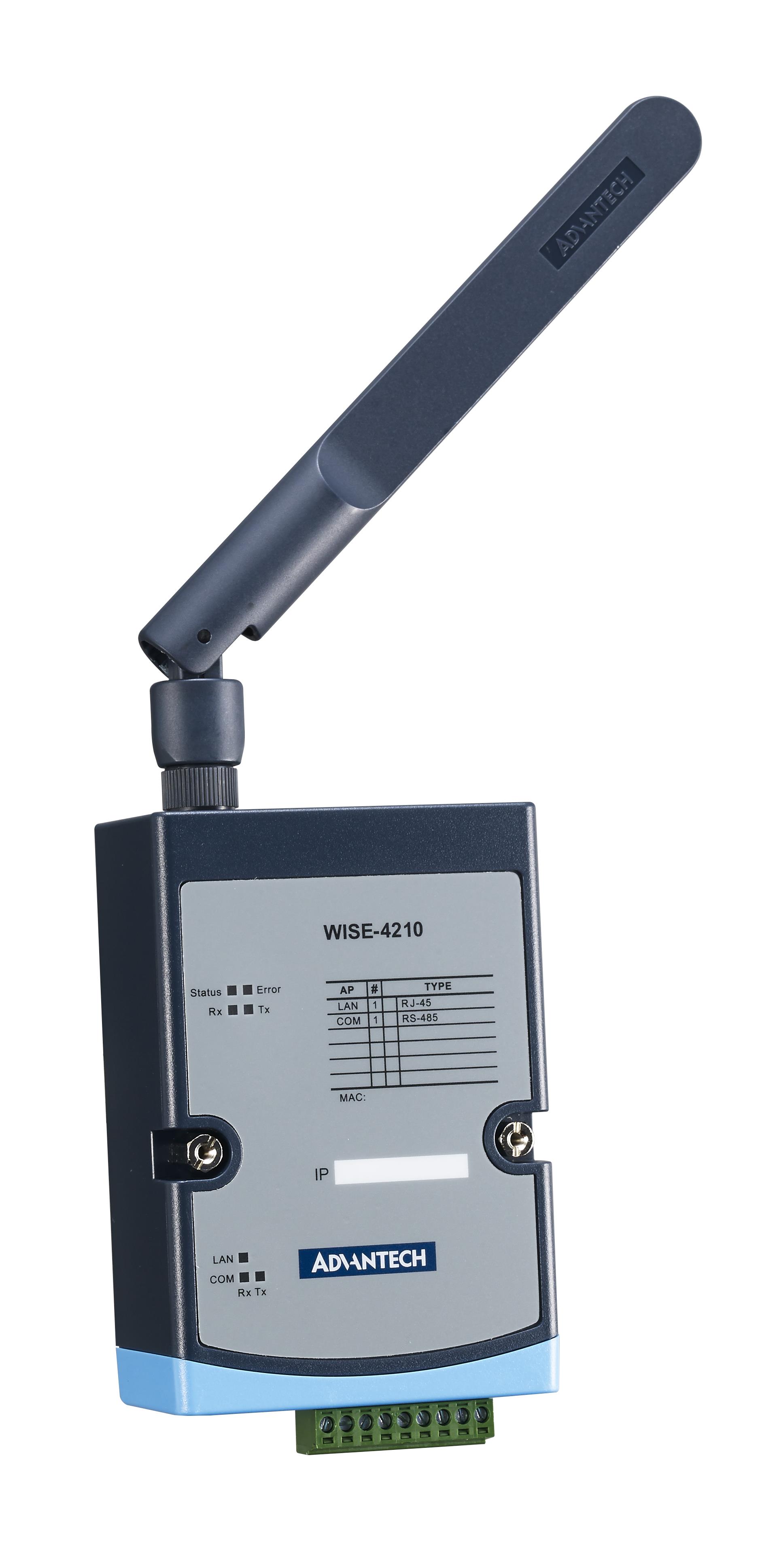

Advantech WISE-4210-APNA

Proprietary LPWAN Wireless to Ethernet AP.

$255.00
Part Number
  • WISE-4210-APNA
Highlights...

Features

  • Data Transfer Rates: 625 bps, 2.5 kbps, 5 kbps, 50 kbps
  • Relative Humidity: 5~95% RH (non-condensing)
  • Storage Humidity: 0~95% RH (non-condensing)
  • Speed: 10/100 Mbps
  • Connectors: 1 x RJ45
  • Protocol: Modbus/TCP, TCP, UDP, HTTP, HTTPS, DHCP, MQTT, SNTP, Modbus/RTU, REST
  • Certification: CE, FCC Class A, IC, NCC, TELEC
  • LED Indicators: Status, Error, Tx, Rx, Battery/Signal Level
  • Power Consumption: 0.8 W @ 24 VDC
  • Power Input: 10~50 VDC
  • LAN Ports: 1 x 10/100 Mbps
  • Serial Ports: 1 x RS-485
  • USB Ports: 1 x Micro-B USB
  • Dimension (W x H x D): 70 x 102 x 38 mm
  • Mounting: DIN-rail, Wall, Pole, Stack
  • Weight (Net): 0.5 kg
  • Input Voltage: 10~50 VDC
  • Data Signals: RS-485: DATA+, DATA-
  • Frequency Band: US 923 (MHz), EU 868 (MHz)
  • Standard (Technology): Proprietary LPWAN
  • Proprietary LPWAN (Sub-G) wireless technology
  • Support MQTT & Modbus/TCP protocol
  • Wireless to ethernet access point
  • Longer communication range than 2.4GHz
  • Better penetration through concrete and steel than 2.4GHz
WISE-4210 wireless sensor node and AP series utilize proprietary LPWAN (Low-Power Wide-Area Network) wireless communication technology. Comparing with traditional 2.4G Wi-Fi, Sub-1GHz LPWAN can provide better connection and eliminate network interference. A WISE-4210-AP can organize a LPWAN network with 64 WISE-4210-S200 series nodes paired by star topology. Moreover, WISE-4210-AP supports MQTT and RESTful API IoT protocol for cloud integration as well as pre-integrating Azure IoT Hub for automatically pushing data to the cloud without requiring any gateway.
