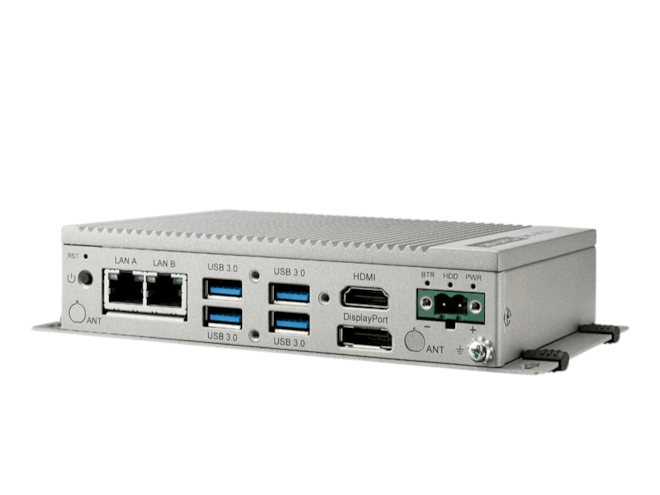

Advantech UNO-2372G-E021BE

Features

• Ingress Protection: IP40
• Relative Humidity: 10~95% RH (non-condensing)
• Shock Protection: 50 G, half sine
• Vibration Protection: 2 Grms, random
• Certification: CE, FCC, UL, CCC, BSMI
• CPU: Intel® Atom® E3845 1.91GHz Quad-Core
• Graphics Engine: Intel® HD Graphics
• Memory: 1 x SO-DIMM Memory with 4 GB DDR3L 1333 MHz
• OS Support: Microsoft® Windows 10 2019 LTSB, Microsoft® Windows 10 LTSC, WES7, Linux
• Power Input: 10~36 VDC
• Storage: 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay
• Audio: Line-Out
• Displays: 1 x HDMI, 1 x DP
• Expansion: 2 x Full-size mPCIe Slot
• LAN Ports: 2 x 10/100/1000 Mbps
• Power Connector: 1 x 2-Pin Terminal Block
• Serial Ports: 4 x RS-232/422/485
• USB Ports: 1 x USB 3.0, 3 x USB 2.0
• Dimension (W x H x D): 150 x 105 x 35 mm
• Enclosure: Aluminum housing
• Weight (Net): 1.1 kg (2.4 lb)
• Intel Atom® E3845, Celeron® J1900/J3455 quad-core processor with 4G DDR3L memory
• Compact, robust, fanless and cable-free system with high stability
• Modular design with optional SSD/ NVME/ Wi-Fi/Bluetooth/cellular scalability
• Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
