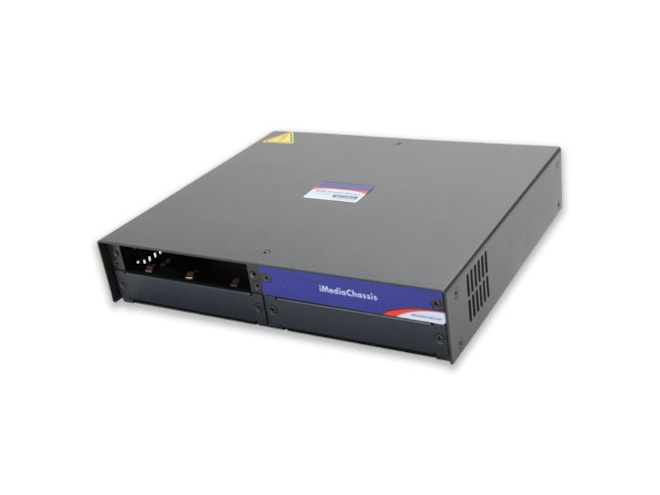

Advantech IMC-713-2DC

Managed Modular 3-slot Media Converter Chassis, 2 DC Power (also known as MediaChassis 850-10949-2DC).

$698.25
Part Number
  • IMC-713-2DC
Highlights...

Features

  • Power Input (DC): 35 ~ 75 VDC, 1.6A
  • Dimensions (W x H x D): 22.19 x 4.57 x 19.05 cm (8.74 x 1.8 x 7.5 in.)
  • Weight: 2.3 kg (5 lbs)
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122°F)
  • Operating Humidity: 5~95% (non-condensing)
  • Safety: UL/cUL
  • EMC: CE, FCC Class B, CSA
  • Designed for a variety of media and mode conversion modules
  • Supports a wide range of protocols and future-proof upgrade paths
  • High flexibility for module combinations for different environments
  • Standard and extended temperature models available
  • Provides 3/6/20-slot chassis that supports low to high density deployment
  • Supports SNMP management that uses optional SNMP management modulefor 3/6/20-slot chassis
The IMC-71x series provides conversion of Ethernet-to-fiber and a variety of networking technologies. It enables network operators to drastically reduce the capital and operational expenses bu providing all copper-to-fiber and multi-mode to single-mode conversions and network distance extensions. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit. With AC or DC powering options, it is a economic way to overcome a variety of media and mode conversion challenges. The IMC-713/716/719 series have the highest port density in the industry-- along with a robust design, hot-swappable architecture, SNMP management via iView2, and redundant power supplies for fault tolerance which diverse applications, using a variety of protocols, is required. The temperature controlled fans in the IMC-713/716 chassis activate only when chassis reaches a certain temperature, thereby extending the life of the fans. The fans on the IMC-719 series can even be remotely controlled via SNMP.
